ENGLISH
RCF S.P.A. THANKS YOU FOR PURCHASING THIS PRODUCT, WHICH HAS BEEN
DESIGNED TO GUARANTEE RELIABILITY AND HIGH PERFORMANCE.
DESCRIPTION
S 10 and S 12 are high power, compact subwoofer systems ideal for those installations
where a great sound impact with physical small size is desired. Extending their frequency
response to below 50Hz (S 10) or 40Hz (S 12) these highly efficient designed systems
are capable of providing output levels normally associated with considerably larger
enclosures. These systems are suited to background music playback in applications
ranging from clubs, bars and cafes, right through to theatres and AV presentations.
The low-frequency transducers are a 10” woofer for the S 10 and a 12” woofer for
the S 12, both equipped with a 2,5” voice coil. The woofer design is the result of
the latest refinements in RCF experiences in compact active and passive subwoofer
design, resulting in a fast and controlled reproduction of the bass frequency range. It is
particularly well-suited in high-quality multimedia applications.

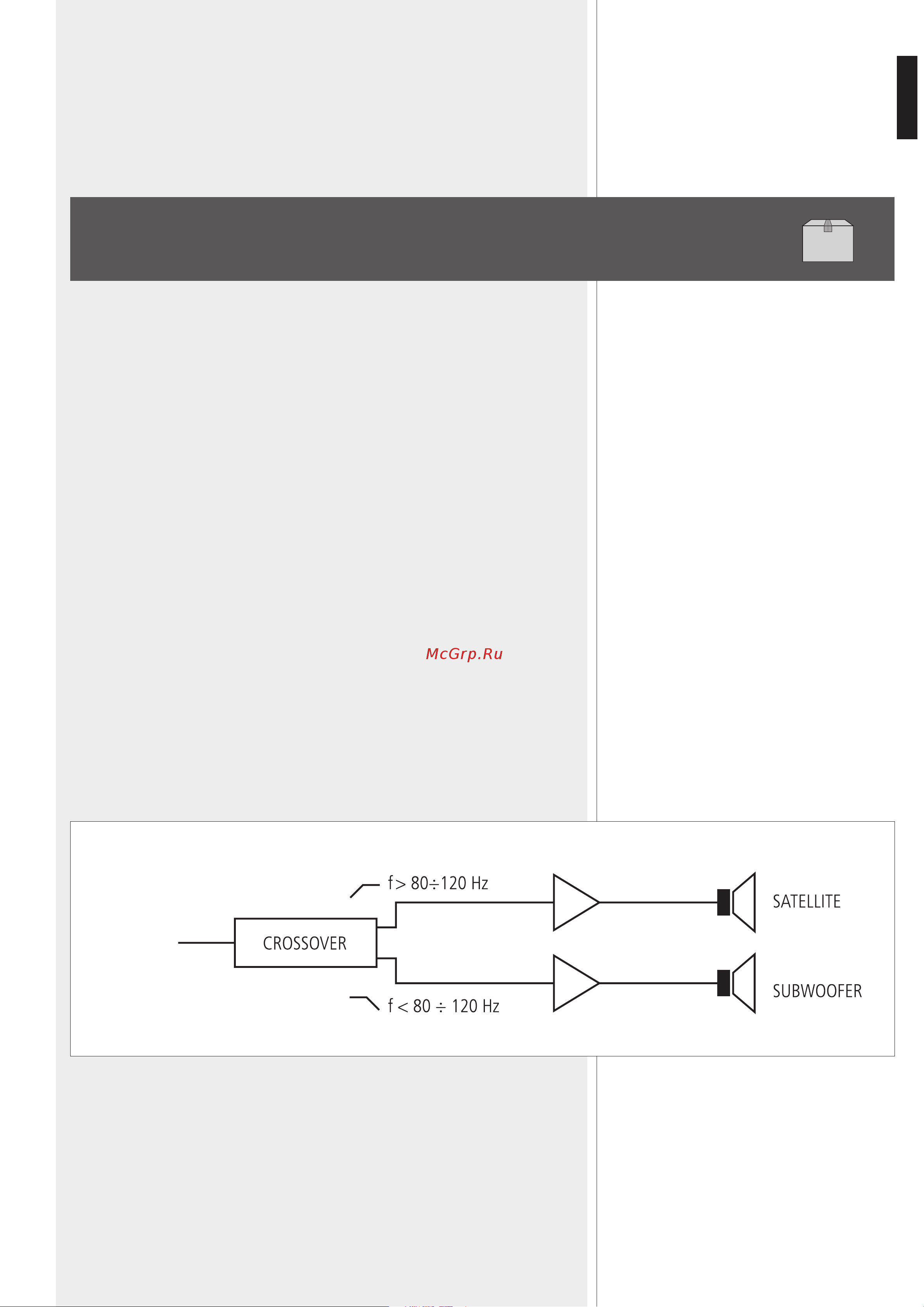

EXAMPLES OF A BI-AMPLIFIED SYSTEM
This manual concerns 2 subwoofer models:
- S 10 with a 10” woofer (2.5” voice coil)
- S 12 with a 12” woofer (2.5” voice coil)
The front grilles are made of steel with a robust double mesh polyester clothing.
On its top, there is a M 20 threaded insert for a pole mount (for a satellite loudspeaker).
All models have a 4-pin EUROBLOCK connector (audio input and parallel link output).
