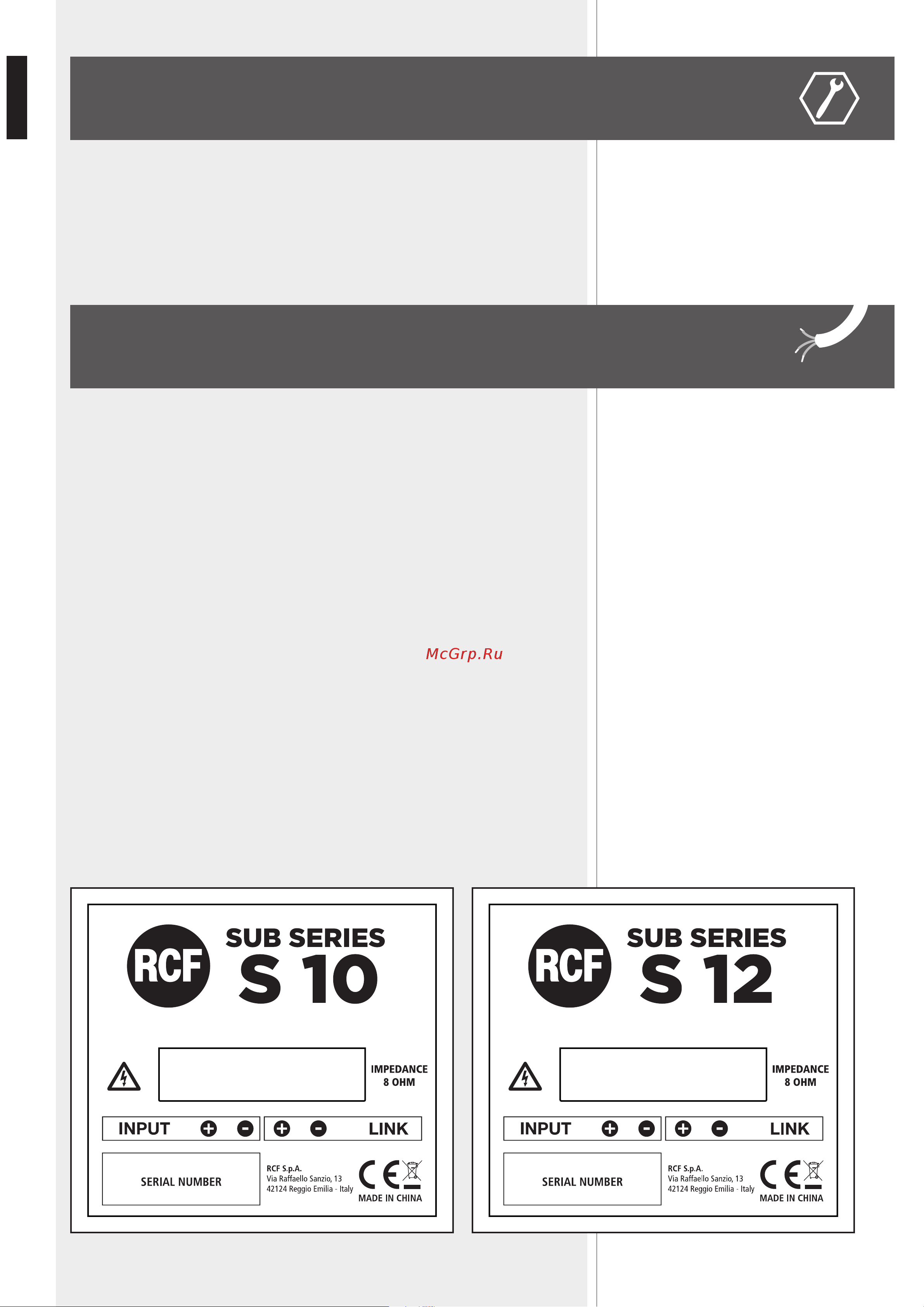

![RCF SUB S 12 [6/16] Connections](/views2/1989697/page6/bg6.png)
6
ENGLISH
S Series subwoofers shall be placed on the floor (on a place surface).
Satellite loudspeakers shall be installed securely by qualified personnel, respecting all
safety standards. Make sure the support structure (walls / ceilings) has the necessary
mechanical characteristics for the loudspeaker weight, without the risk of a fall that could
damage things or cause an injury. Use attachments elements suitable for walls / ceilings
(e.g. wall plugs for bricks, for concrete, etc.).
WARNING: loudspeaker connections should be made by qualified and experienced
personnel only having the technical know-how or sufficient specific instructions (to
ensure that connections are made correctly) in order to prevent any electrical danger.
To prevent any risk of electric shock, do not connect loudspeakers when the amplifier is
switched on. Before turning the system on, check all connections and make sure there are
no accidental short circuits.
The entire sound system shall be designed and installed in compliance with the current
local laws and regulations regarding electrical systems.
S Series subwoofers are designed for indoor use only.
If installed outdoor, loudspeakers shall be protected against water.
The impedance of both subwoofers is 8 Ω.
The total impedance of multiple identical subwoofers linked in parallel on the same line is
given by the impedance value of a single subwoofer divided by their quantity (impedance
/ quantity).
For example, the total impedance of two S 10 or S 12 linked in parallel is 4 Ω (8 Ω / 2)
Connect the positive wire (amplifier ‘+’ output) to the pin ‘INPUT +’ of the 4-pin
EUROBLOCK connector.
Connect the negative wire (amplifier ‘–’ output) to the pin ‘INPUT –’ of the 4-pin
EUROBLOCK connector.
The ‘LINK +’ and ‘LINK –’ pins are useful to link another subwoofer in parallel.
INSTALLATION
CONNECTIONS
