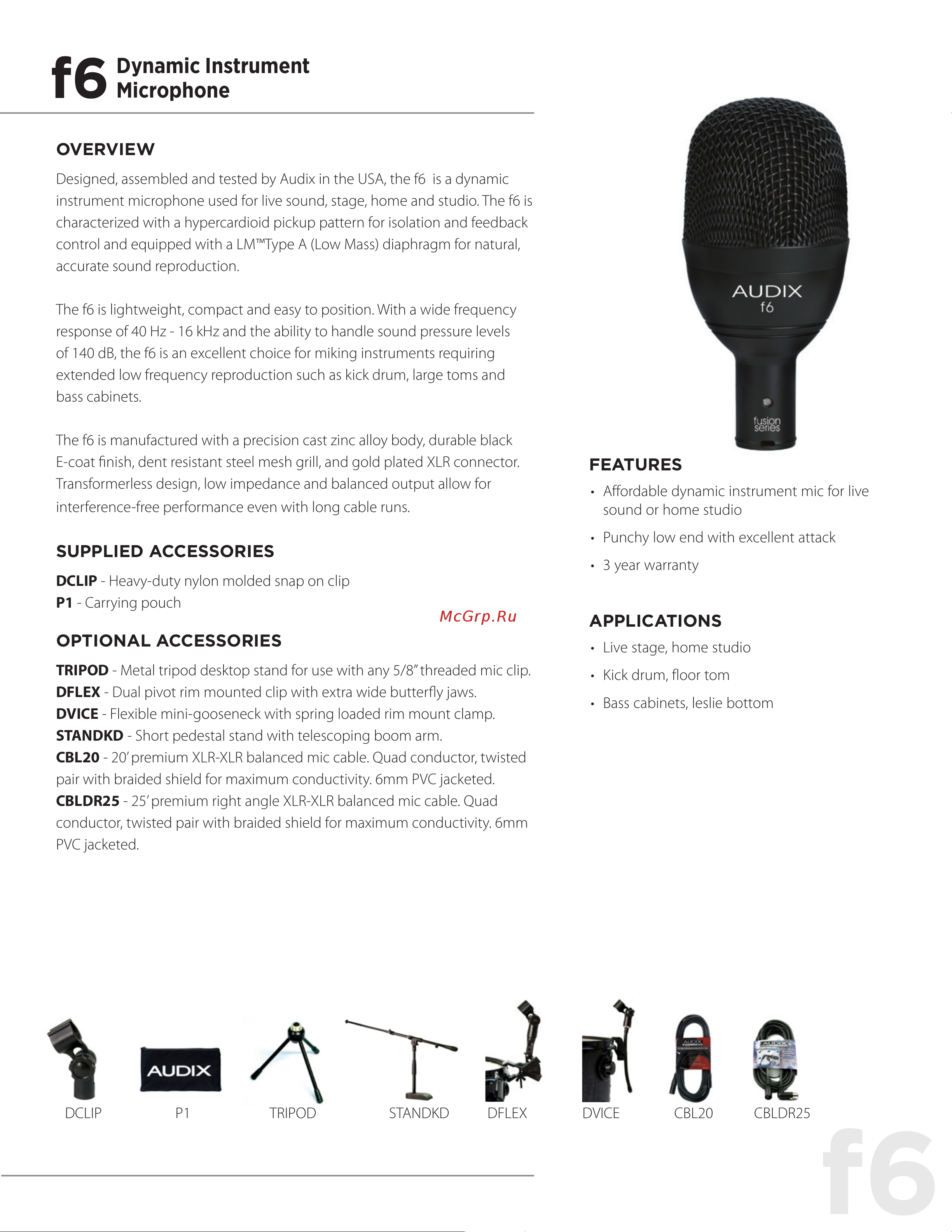

OVERVIEW

Designed, assembled and tested by Audix in the USA, the f6 is a dynamic

instrument microphone used for live sound, stage, home and studio. The f6 is

characterized with a hypercardioid pickup pattern for isolation and feedback

control and equipped with a LM™Type A (Low Mass) diaphragm for natural,

accurate sound reproduction.

The f6 is lightweight, compact and easy to position. With a wide frequency

response of 40 Hz - 16 kHz and the ability to handle sound pressure levels

of 140 dB, the f6 is an excellent choice for miking instruments requiring

extended low frequency reproduction such as kick drum, large toms and

bass cabinets.

The f6 is manufactured with a precision cast zinc alloy body, durable black

E-coat ﬁnish, dent resistant steel mesh grill, and gold plated XLR connector.

Transformerless design, low impedance and balanced output allow for

interference-free performance even with long cable runs.

SUPPLIED ACCESSORIES

DCLIP - Heavy-duty nylon molded snap on clip

P1 - Carrying pouch

OPTIONAL ACCESSORIES

TRIPOD - Metal tripod desktop stand for use with any 5/8” threaded mic clip.

DFLEX - Dual pivot rim mounted clip with extra wide butterﬂy jaws.

DVICE - Flexible mini-gooseneck with spring loaded rim mount clamp.

STANDKD - Short pedestal stand with telescoping boom arm.

CBL20 - 20’ premium XLR-XLR balanced mic cable. Quad conductor, twisted

pair with braided shield for maximum conductivity. 6mm PVC jacketed.

CBLDR25 - 25’ premium right angle XLR-XLR balanced mic cable. Quad

conductor, twisted pair with braided shield for maximum conductivity. 6mm

PVC jacketed.

Dynamic Instrument

Microphone

FEATURES

• Affordable dynamic instrument mic for live

sound or home studio

• Punchy low end with excellent attack

• 3 year warranty

APPLICATIONS

• Live stage, home studio

• Kick drum, floor tom

• Bass cabinets, leslie bottom

DCLIP P1 TRIPOD STANDKD DFLEX DVICE CBL20 CBLDR25
