ADJ Products, LLC - www.adj.com - Crazy Pocket 8 User Manual Page 9
ADJ Products, LLC - www.adj.com - Crazy Pocket 8 User Manual Page 8

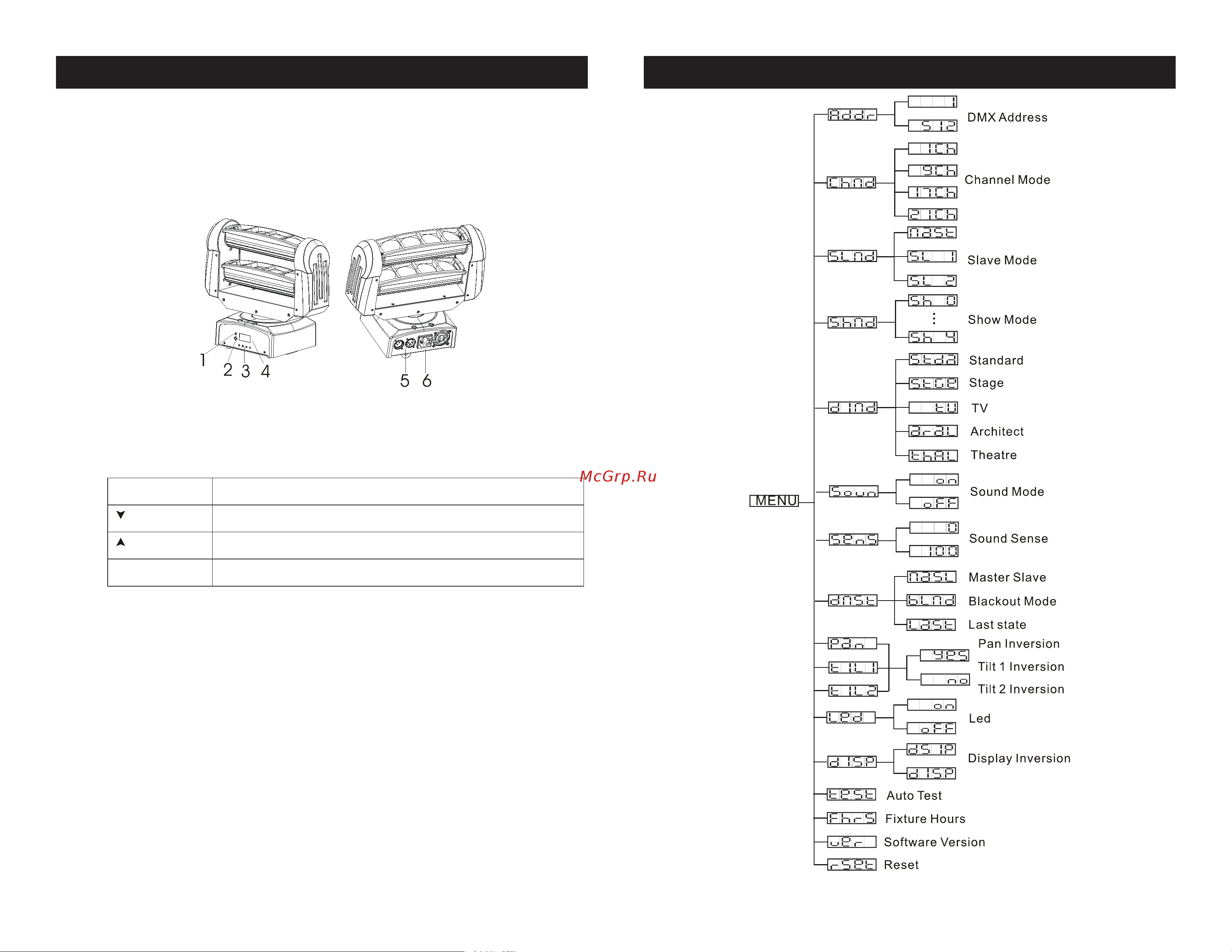

Crazy Pocket 8 System Menu Crazy Pocket 8 Rear Layout & Functions
1. IR receiver: To receive the IR signal;
2. MIC: Used to receive music for sound active;
3. Button:
MENU
To select the programming functions
DOWN
To go backward in the selected functions
UP
To go forward in the selected functions
ENTER
To conrm the selected functions
4. Function Display: Used to show the various menus and the selected functions;
5. DMX IN/OUT: For DMX512 links, use 3-pin XLR plug cable to translate the DMX signal;
6. POWER IN: Used to connect to power supply.
