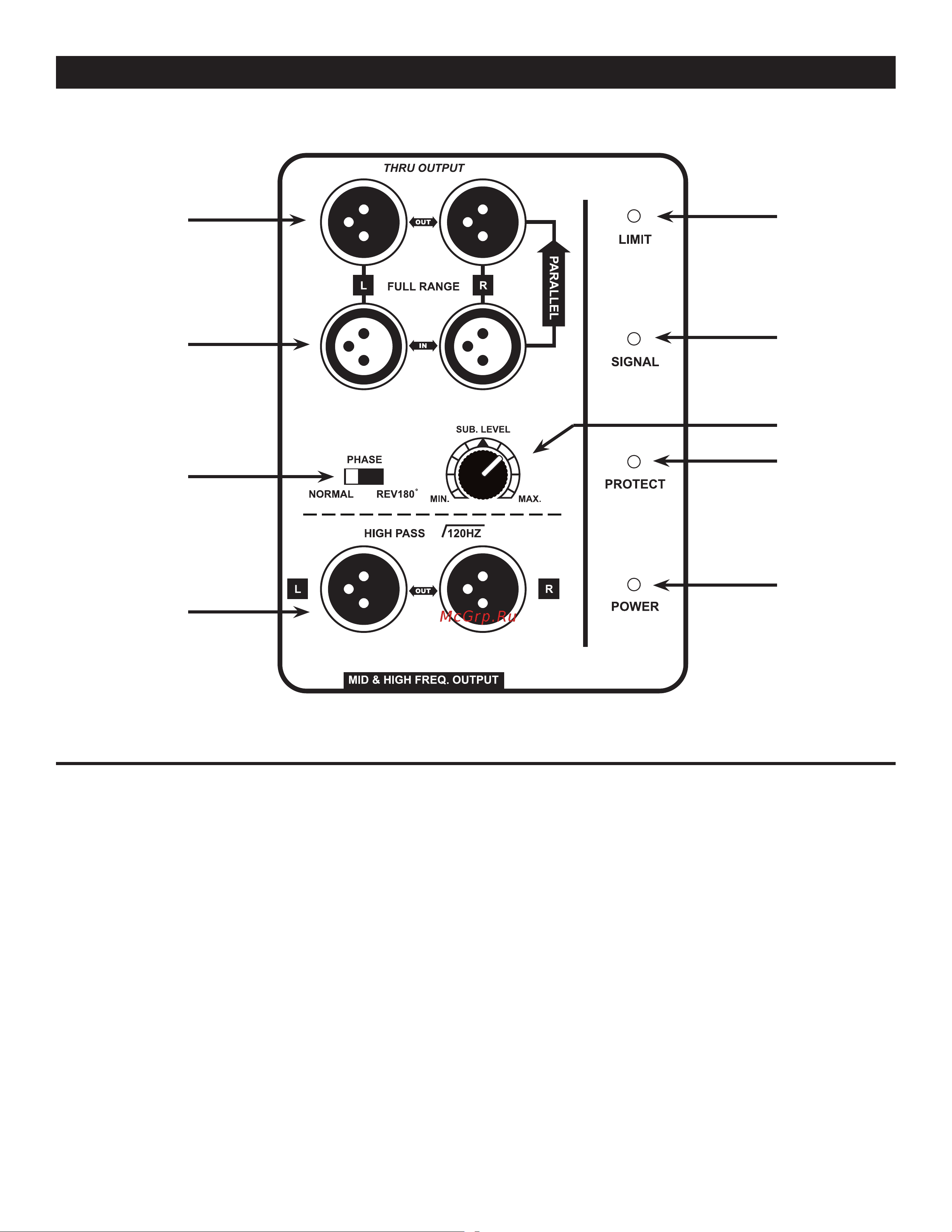

Subwoofer Rear Panel:

1. LIMIT INDICATOR – The LIMIT INDICATOR will blink on occasion when the built-in limiter is

active. NOTE: If the indicator glows or starts to blink frequently, you should turn down

the SUBWOOFER LEVEL.

2. SIGNAL INDICATOR – The SIGNAL INDICATOR will glow when when there is a signal received

to the FULL RANGE input.

3. SUBWOOFER GAIN CONTROL – This knob is used to regulate the output level of the sub-

woofer. Use this to set the balance between the speakers and subwoofers.

4. PROTECT INDICATOR – The PROTECT INDICATOR will begin to glow when the subwoofer goes

into protect mode. Protect mode prevents the subwoofer ampliers from getting to hot. When the sub-

woofer goes into protect mode all output will stop. This is to protect the subwoofer and any speakers

connected to the subwoofer.

5. POWER LED - This L.E.D. will be lit when you switch on the power.

6. HIGH PASS XLR OUTPUT – These outputs are used to send the incoming signal to a full range
