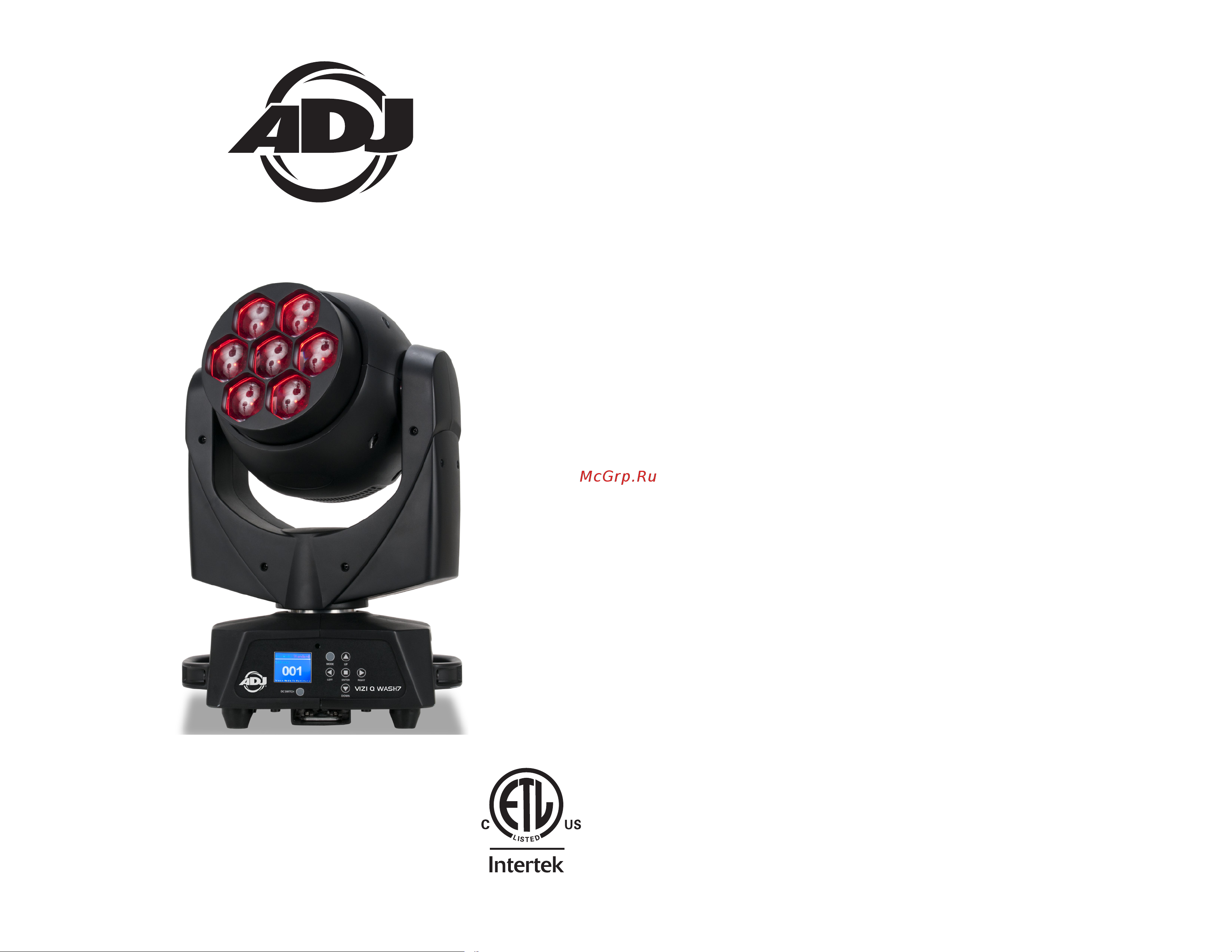

User Instructions
VIZI Q WASH7
©2017 ADJ Products, LLC all rights reserved. Information,
specications, diagrams, images, and instructions herein are
subject to change without notice. ADJ Products, LLC logo and
identifying product names and numbers herein are trademarks
of ADJ Products, LLC. Copyright protection claimed includes all
forms and matters of copyrightable materials and information
now allowed by statutory or judicial law or hereinafter granted.
Product names used in this document may be trademarks or
registered trademarks of their respective companies and are
hereby acknowledged. All non-ADJ Products, LLC brands and
product names are trademarks or registered trademarks of their
respective companies.
ADJ Products, LLC and all aliated companies hereby dis-
claim any and all liabilities for property, equipment, building,
and electrical damages, injuries to any persons, and direct or
indirect economic loss associated with the use or reliance of
any information contained within this document, and/or as a
result of the improper, unsafe, unsucient and negligent as-
sembly, installation, rigging, and operation of this product.
Europe Energy Saving Notice
Energy Saving Matters (EuP 2009/125/EC)
Saving electric energy is a key to help protecting the enviroment.
Please turn o all electrical products when they are not in use. To
avoid power consumption in idle mode, disconnect all electrical
equipment from power when not in use. Thank you!
401076 5
Содержание
- User instructions 1
- Vizi q wash7 1
- Customer support 2
- Introduction 2
- Table of contents 2
- Unpacking 2
- Unpacking introduction customer support safety precautions features handling precautions registration mounting dmx set up 11 dmx control 2 dmx traits 3 21 color macro chart 2 system menu 3 operation 0 photometric chart 2 43 dimmer curve chart 4 fuse replacement 4 cleaning 5 trouble shooting 5 warranty 6 specifications 7 2
- Warning 2
- Caution 3
- Dmx 512 5
- Notice the suitable enviromental temperature for this light ing fixture is between 25 c to 45 c do not place this lighting fixture in an enviroment where the temperatures are under or above the temperatures stated above this will allow the fixture to run at its best and help prolong the fixture life 5
- Power supply 5
- Screw one clamp each via a m12 screw and nut onto the omega holders insert the quick lock fasteners of the omega holders into the respective holes on the bottom of the vizi q wash7 tighten the quick lock fasteners fully clockwise install the second omega holder pull the safety cable through the holes on the bottom of the base and over the trussing system or a safe fixation spot insert the end in the carabine and tighten the safety screw 5
- A male and female xlr connector on either end of the cable also remember that dmx cable must be daisy chained and cannot be split 6
- Be sure to follow figures two and three when making your own cables do not use the ground lug on the xlr connector do not con nect the cable s shield conductor to the ground lug or allow the shield conductor to come in contact with the xlr s outer casing grounding the shield could cause a short circuit and erratic behavior 6
- Conductor 5 pin xlr male in 3 pin xlr female out 6
- Data compliment signal 6
- Data true signal 6
- Ground shield 6
- Not used 6
- Notice 6
- Pin 4 do not use 6
- Pin 5 do not use 6
- Pin xlr dmx connectors 6
- Pin xlr to 5 pin xlr conversion 6
- Some manufactures use 5 pin dmx 512 data cables for data transmission in place of 3 pin 5 pin dmx fixtures may be implemented in a 3 pin dmx line when inserting stan dard 5 pin data cables in to a 3 pin line a cable adaptor must be used these adaptors are readily available at most electric stores the chart below details a proper cable conversion 6
- Special note line termination 6
- Vizi q wash7 dmx set up 6
- When longer runs of cable are used you may need to use a terminator on the last unit to avoid erratic behavior a terminator is a 110 120 ohm 1 4 watt resistor which is con nected between pins 2 and 3 of a male xlr connector data and data this unit is inserted in the female xlr connector of the last unit in your daisy chain to terminate the line using a cable terminator adj part number z dmx t will decrease the possibilities of erratic behavior 6
- Adj products llc www adj com vizi q wash7 instruction manual page 23 adj products llc www adj com vizi q wash7 instruction manual page 22 12
- Vizi q wash7 color macro chart 12
- Vizi q wash7 system menu 12
- Now set the dmx value of channel 2 to the value 7 to adjust the starting address between 1 and 255 to adjust the address between 256 and 511 set channel 2 to the value 8 13
- On your dmx controller set the dmx value of channel 1 to the value 7 13
- Set the dmx value of channel 3 to your desired start ing address this will take about 20 seconds before the unit accepts the new dmx address example if you want the address to be 57 you must first set 13
- To use this function follow these instructions to adjust the address of your unit you must first go to the address that it is currently set to from there you can adjust the address first make sure all channels are set to the value of 0 13
- Nd example if you want the address to be 420 you must first set the address that is currently assingned to the unit if you want the set the address to 420 set channel 1 s value to 7 channel 2 s value to 8 and channel 3 s to 164 256 164 420 14
- The address that is currently assingned to the unit then set channel 1 s value to 7 channel 2 s value to 7 and chan nel 3 s value to 57 wait 20 seconds and the address should change on the unit to 57 14
- Master slave cofiguration auto program 21
- Stand alone auto program 21
- 1 2 3 4 5 22
- 1 3 5 8 10 22
- Beam opening m 22
- Intensity lux 22
- Fixture cleaning 23
- A d j supply europe b v 24
- Adj products llc 24
- Adj products llc www adj com vizi q wash7 instruction manual page 46 24
- Auto sensing voltage 24
- Beam angle 7 58 degrees 24
- Channels or 23 channels 19 channels or 23 channels 24
- Colors rgbw 24
- Dimensions 11 5 l x 8 w x 15 5 h 24
- Dmx 3 dmx channel modes 17 channels 24
- Duty cycle none 24
- Ew kerkrade 24
- Fixtures max 240v 11 fixtures max 240v 24
- Fuse 3a 120v 2a 240v 24
- Junostraat 2 24
- Led life 50 000 hrs 24
- Leds 7 x 40w rgbw 4 in 1 leds 24
- Model vizi q wash7 24
- Please note 24
- Power consumption 305w 24
- Powercon daisy chain 5 fixtures max 110v 24
- S eastern ave los angeles ca 90040 usa 24
- Service adjgroup eu www adj eu 24
- Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice 24
- Tel 31 45 546 85 00 fax 31 45 546 85 99 24
- Tel 323 582 2650 fax 323 725 6100 24
- The netherlands 24
- This fixture contains a automatic volt age switch which will auto sense the voltage when it is plugged into the power source 24
- Vizi q wash7 specifications 24
- Vizi q wash7 warranty 24
- Voltage 100 240v 50 60hz 24
- Warranty 2 year 730 days 24
- Web www adj com e mail info americandj com 24
- Weight 19 lbs 8 kgs 24
- Working position any safe secure position 24
- X 200 x 400mm 300 x 200 x 400mm 24
