ADAM AUDIO Sub7 [7/32] Connecting the subwoofer

Sub7 Manual / english

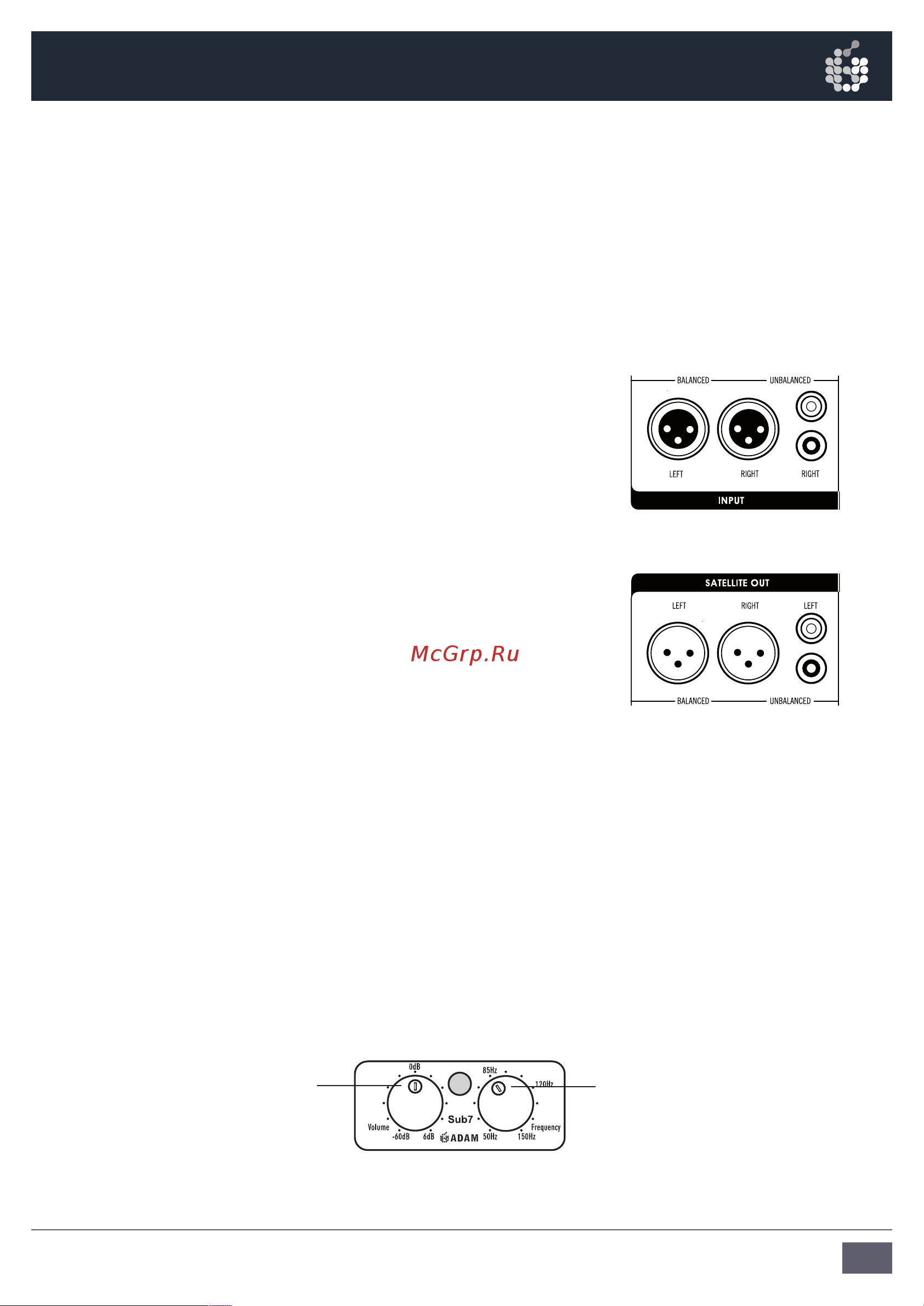

3.1 Connections

On the rear side of the speaker you can ﬁnd balanced (XLR) and unbalanced

(RCA) connectors. For professional use the XLR connectors will be the ﬁrst

choice. However, as RCA connections are widely used in home entertainment

environments we have included an RCA jack as well.

3.2 Input

Connect the left and right line-level signal

from your signal source (audio interface, mixer,

etc.) to the LEFT and RIGHT INPUT jacks. Use

either XLR (balanced) or RCA (unbalanced) cables.

3.3 Satellite Out

Connect the LEFT and RIGHT SATELLITE OUT

jacks to the inputs of the left and right main

powered speakers or the inputs of the amps

powering the main speakers.

3.4 LEDs

There are two LEDs on the front, one on each potentiometer.

The left one will blink a few times red when the subwoofer is being switched

on. This does not indicate an overload but the control function of the protective

circuit. Only if the diode ﬂashes red during operation this indicates an overload.

Afterwards, the diode glows green.

The right diode will glow green during operation and yellow during stand-by (Auto

On mode, see 5.2).

3. Connecting the Subwoofer

LED 1: blinks red a

few times when sub is

switched on

LED 2: green, indicating

operation; turns yellow

in stand-by-mode
