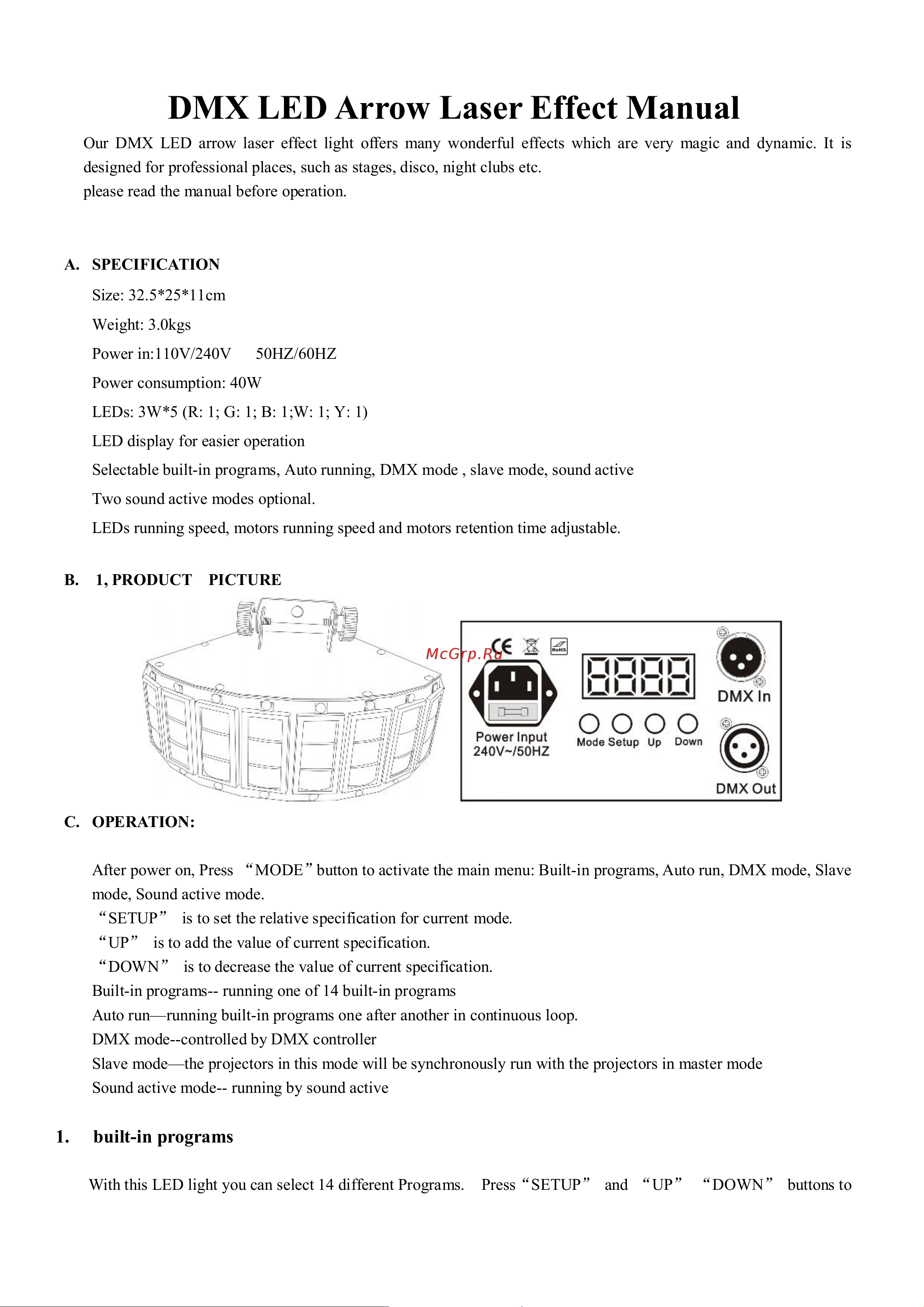

DMX LED Arrow Laser Effect Manual

Our DMX LED arrow laser effect light offers many wonderful effects which are very magic and dynamic. It is

designed for professional places, such as stages, disco, night clubs etc.

please read the manual before operation.

A. SPECIFICATION

Size: 32.5*25*11cm

Weight: 3.0kgs

Power in:110V/240V 50HZ/60HZ

Power consumption: 40W

LEDs: 3W*5 (R: 1; G: 1; B: 1;W: 1; Y: 1)

LED display for easier operation

Selectable built-in programs, Auto running, DMX mode , slave mode, sound active

Two sound active modes optional.

LEDs running speed, motors running speed and motors retention time adjustable.

B. 1, PRODUCT PICTURE

C. OPERATION:

After power on, Press “MODE”button to activate the main menu: Built-in programs, Auto run, DMX mode, Slave

mode, Sound active mode.

“SETUP” is to set the relative specification for current mode.

“UP” is to add the value of current specification.

“DOWN” is to decrease the value of current specification.

Built-in programs-- running one of 14 built-in programs

Auto run—running built-in programs one after another in continuous loop.

DMX mode--controlled by DMX controller

Slave mode—the projectors in this mode will be synchronously run with the projectors in master mode

Sound active mode-- running by sound active

1. built-in programs

With this LED light you can select 14 different Programs. Press“SETUP” and “UP” “DOWN” buttons to
