American DJ® - www.americandj.com - Quad Phase Instruction Manual Page 7 American DJ® - www.americandj.com - Quad Phase Instruction Manual Page 8

5-Pin XLR DMX Connectors.

Some manufactures use 5-pin XLR

connectors for DATA transmission in place of 3-pin. 5-pin XLR xtures

may be implemented in a 3-pin XLR DMX line. When inserting stan-

dard 5-pin XLR connectors in to a 3-pin line a cable adaptor must be

used, these adaptors are readily available at most electric stores. The

chart below details a proper cable conversion.

Conductor 5-Pin XLR Male (In)3-Pin XLR Female (Out)

Pin 1

Pin 5 - Do Not Use

Pin 4 - Do Not Use

Pin 3

Pin 2

Pin 1

Pin 3

Pin 2

Not Used

Data True (+ signal)

Data Compliment (- signal)

Ground/Shield

3-Pin XLR to 5-Pin XLR Conversion

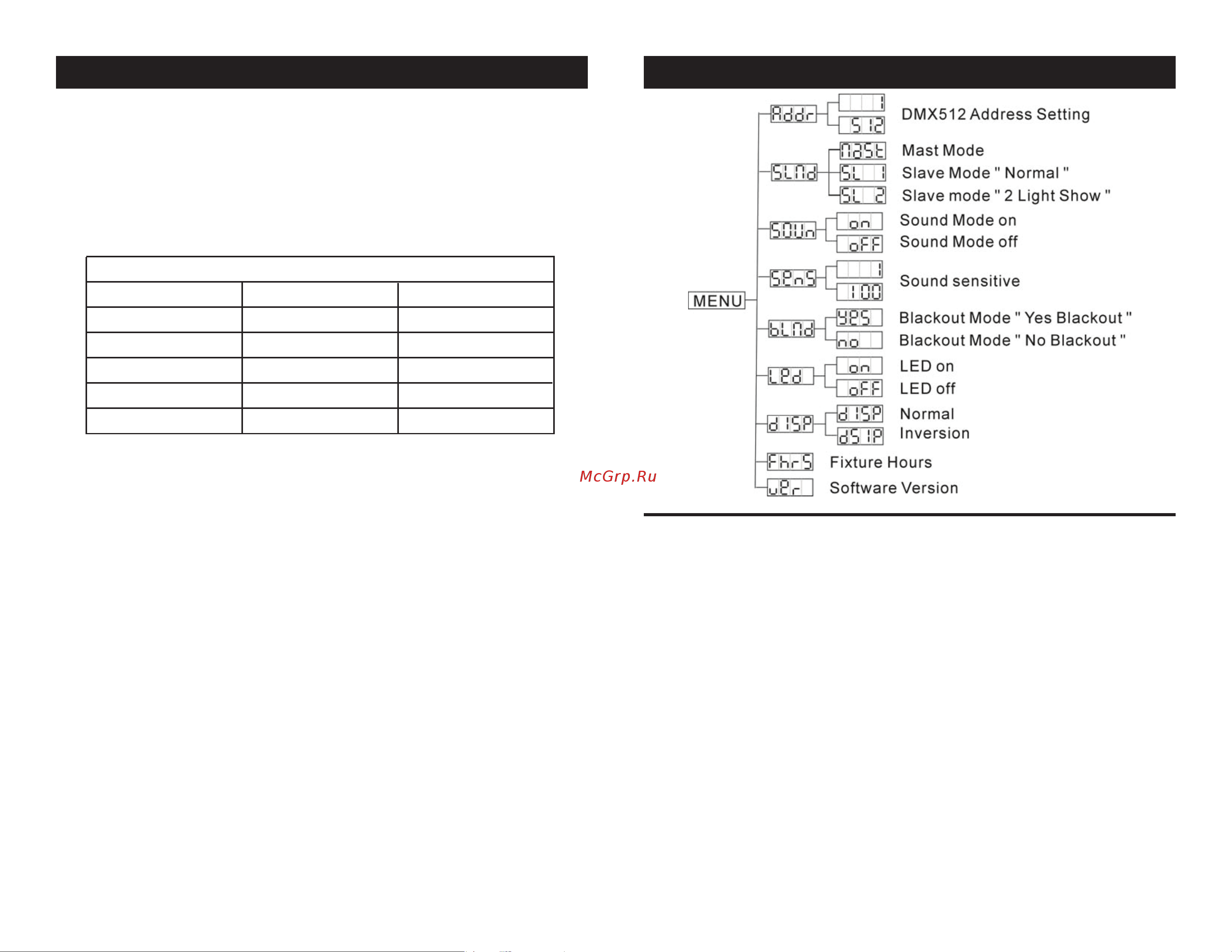

Quad Phase Set Up Quad Phase System Menu

ADDR - DMX Address Setting.

1. Tap the either the MENU, UP, or DOWN buttons until “ADDR”

is displayed, press ENTER.

2. “1” will now be displayed and ashing. Press the UP or

DOWN buttons to nd your desired address. Press ENTER to

set your desired DMX address.

SLND - This will let you set unit as a master or slave in a

master/slave conguration.

1. Tap the either the MENU button until “SLND” is displayed,

press ENTER. “MSTR”, “SL 1” or “SL 2” will be displayed.

2. Tap the UP or DOWN buttons until your desired setting is

displayed, press ENTER to conm and exit.
