User Instructions
©American DJ® - www.americandj.com - Diversa Ray Instruction Manual Page 2
Unpacking: Thank you for purchasing the Diversa Ray by Ameri-
can DJ®. Every Diversa Ray has been thoroughly tested and has been
shipped in perfect operating condition. Carefully check the shipping
carton for damage that may have occurred during shipping. If the
carton appears to be damaged, carefully inspect your xture for any
damage and be sure all equipment necessary to operate the unit has
arrived intact. In the event damage has been found or parts are miss-
ing, please contact our toll free customer support number for further
instructions. Please do not return this unit to your dealer without con-
tacting customer support rst.
Introduction: The American DJ® Diversa Ray features 3 distinct laser
effects in one unit. It produces a “Galaxian style” effect with 100’s of
red and green beams, a “Liquid Sky” effect, and a multi-beam prism
effect. The Diversa Ray has three operating modes; sound active,
show mode, or controlled via DMX. The Diversa Ray can operate as a
stand alone fixture or in a Master/Slave configuration. For best results
use fog or special effects smoke to enhance the beams projections.
Customer Support: American DJ® provides a toll free customer
support line, to provide set up help and to answer any question should
you encounter problems during your set up or initial operation. You
may also visit us on the web at www.americandj.com for any com-
ments or suggestions. For service related issue please contact Ameri-
can DJ®. Service Hours are Monday through Friday 8:00 a.m. to 4:30
p.m. Pacic Standard Time.
Voice: (800) 322-6337
Fax: (323) 582-2941
E-mail: support@americandj.com
To purchase parts online visit http://parts.americandj.com
Warning! To prevent or reduce the risk of electrical shock or re, do
not expose this unit to rain or moisture.
Caution! There are no user serviceable parts inside this unit. Do not
attempt any repairs yourself, doing so will void your manufactures war-
ranty. In the unlikely event your unit may require service please contact
American DJ customer support.
PLEASE recycle the shipping carton whenever possible.
3/12

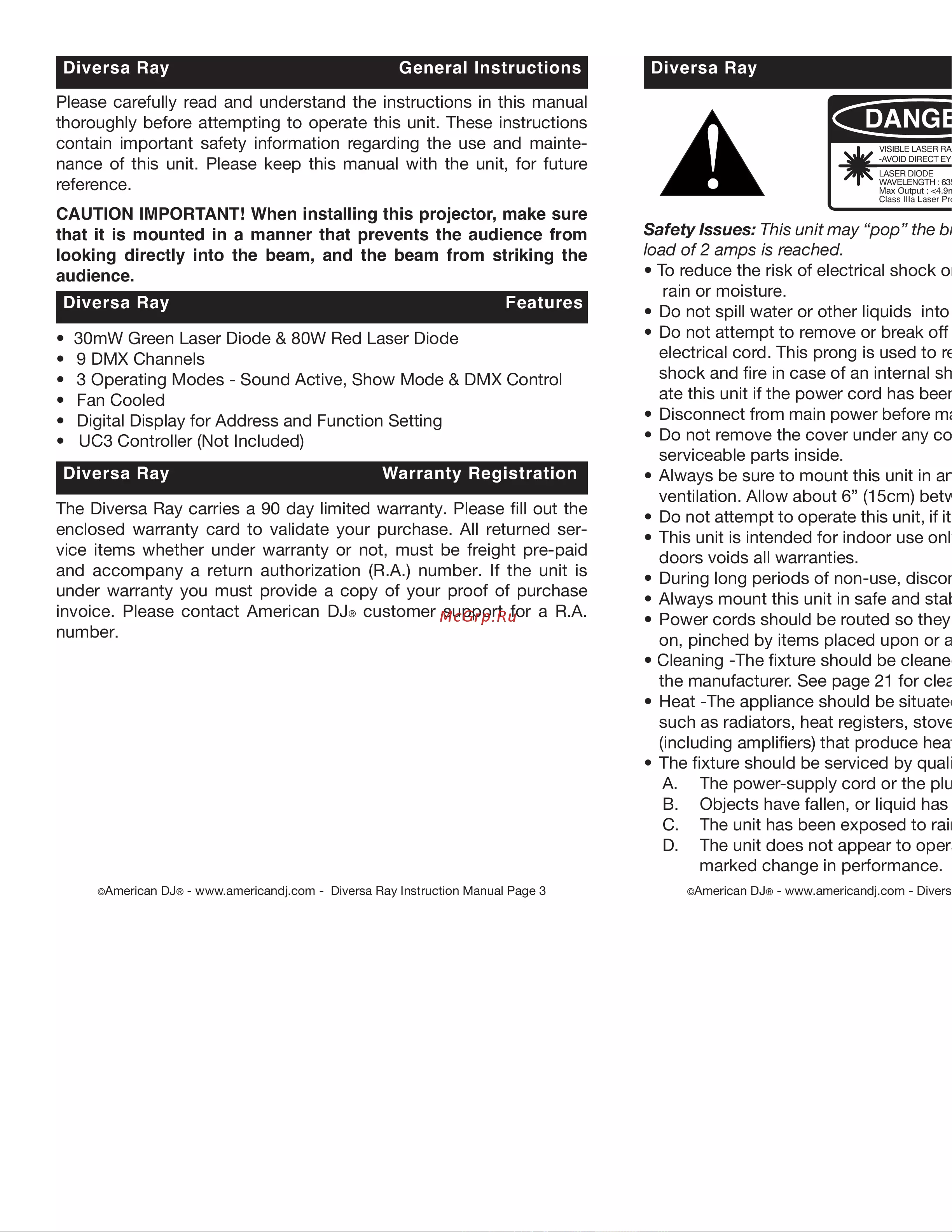

Diversa Ray General Introduction
Содержание
- Caution 1
- Customer support 1
- Introduction 1
- To purchase parts online visit http parts americandj com 1
- Unpacking 1
- User instructions 1
- Warning 1
- Danger 2
- Operation instructions and laser safety 3
- Stop and read all laser safety data 3
- Dmx 512 4
- Power supply 4
- Be sure to follow figures two and three when making your own cables do not use the ground lug on the xlr connector do not con nect the cable s shield conductor to the ground lug or allow the shield conductor to come in contact with the xlr s outer casing grounding the shield could cause a short circuit and erratic behavior 5
- Cable must be daisy chained and cannot be split 5
- Conductor 5 pin xlr male in 3 pin xlr female out 5
- Data compliment signal 5
- Data true signal 5
- Diversa ray set up 5
- Ground shield 5
- Not used 5
- Notice 5
- Pin 4 do not use 5
- Pin 5 do not use 5
- Pin xlr dmx connectors 5
- Pin xlr to 5 pin xlr conversion 5
- Some manufactures use 5 pin dmx 512 data cables for data transmission in place of 3 pin 5 pin dmx fixtures may be implemented in a 3 pin dmx line when inserting stan dard 5 pin data cables in to a 3 pin line a cable adaptor must be used these adaptors are readily available at most electric stores the chart below details a proper cable conversion 5
- Special note line termination 5
- When longer runs of cable are used you may need to use a terminator on the last unit to avoid erratic behavior a terminator is a 110 120 ohm 1 4 watt resistor which is con nected between pins 2 and 3 of a male xlr connector data and data this unit is inserted in the female xlr connector of the last unit in your daisy chain to terminate the line using a cable terminator adj part number z dmx t will decrease the possibilities of erratic behavior 5
- Shnd sh 0 sh 2 6
- In this submenu you can fine adjust the pan 8
- In this submenu you can fine adjust the tilt 8
- Master slave operation 8
- On the slave units 8
- Operating modes the diversa ray can operate in three dif ferent modes in each mode you can run the fixture as a stand alone fixture or in a master slave confiugration this next sec tion will detail the differences in the operating modes 8
- Press enter please see page 12 for more info press enter please see page 12 for more info 8
- Press the enter button for at least 5 seconds 8
- Sl 1 or sl 2 and 8
- The slave units will now follow the master unit 8
- To enter the pan tilt submenu press the enter button for at least 5 seconds this submenu allows you to adjust the motor so that the laser centered and is projected perfectly 8
- Universal dmx control 8
- Use the up and down buttons to make your adjustments and then press enter to confirm press the menu button to exit without making changes 8
- Channel value function 9
- Red laser 0 7 blackout 8 255 on 2 green laser 0 7 off 8 15 on 16 131 laser dash effect 132 247 dot on line effect 248 255 on 3 patterns 0 11 pattern 1 12 23 pattern 2 24 34 pattern 3 35 46 pattern 4 47 58 pattern 5 59 69 pattern 6 70 81 pattern 7 82 93 pattern 8 94 104 pattern 9 105 116 pattern 10 117 127 pattern 11 128 139 pattern 12 140 151 pattern 13 152 162 pattern 14 163 174 pattern 15 175 186 pattern 16 187 197 pattern 17 198 209 pattern 18 210 221 pattern 19 222 232 pattern 20 233 244 pattern 21 245 255 pattern 22 9
- Show mode 9
- Sound active mode 9
- Always be sure to dry all parts completely before plugging the unit back in 11
- American d 11
- Be sure the external fuse has not blown the fuse is located on the rear panel of the unit 11
- Be sure the fuse holder is completely and properly seated unit does not respond to sound 11
- Clean the external optics with glass cleaner and a soft cloth every 20 days 11
- Cleaning frequency depends on the environment in which the fixture operates i e smoke fog residue dust dew in heavy use we recom mend cleaning on a monthly basis periodic cleaning will ensure lon gevity and crisp beam output 11
- Diversa ray cleaning 11
- Diversa ray fuse replacement 11
- Diversa ray trouble shooting 11
- Diversa ray warranty 11
- Due to fog residue smoke and dust cleaning the internal and external lenses should be carried out periodically to optimize light output 1 use normal glass cleaner and a soft cloth to wipe down the out side casing 11
- Fixture cleaning 11
- Locate and remove the unit s power cord once the cord has been removed located the fuse holder located inside the power socket insert a flat head screw driver into the power socket and gently pry out the fuse holder remove the bad fuse and replace with a new one the fuse holder has a built in socket for a spare fuse be sure not to confuse the spare fuse with active fuse 11
- Low frequencies bass should cause the unit to react to sound tapping on the microphone quiet or high pitched sounds may 11
- No light output from the unit 11
- Not activate the unit not activate the unit 11
- Trouble shooting listed below are a few common problems that you may encounter with solutions 11
- Www americandj com diversa ray instruction manual page 21 11
- Www americandj com diversa ray instruction manual page 22 11
- American dj europe 12
- American dj supply 12
- American dj world headquarters 12
- Auto sensing voltage 12
- Ew kerkrade 12
- Junostraat 2 12
- Model diversa ray 12
- Netherlands 12
- Please note 12
- S eastern ave los angeles ca 90040 usa 12
- Service adjgroup eu www americandj eu 12
- Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice 12
- Tel 31 45 546 85 00 fax 31 45 546 85 99 12
- Tel 323 582 2650 fax 323 582 2610 12
- This fixture contains a automatic volt age switch which will auto sense the voltage when it is plugged into the power source 12
- Web www americandj com e mail info americandj com 12
