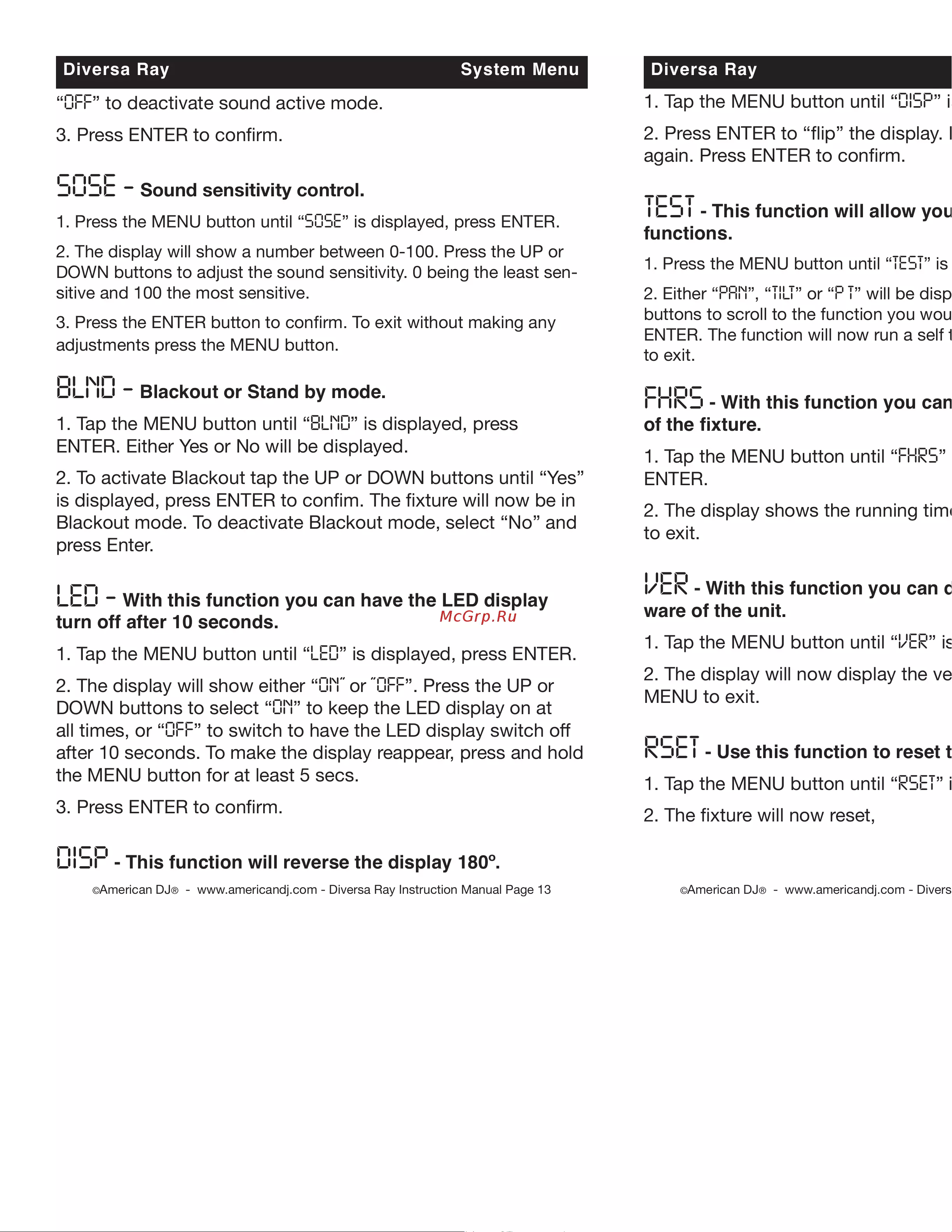

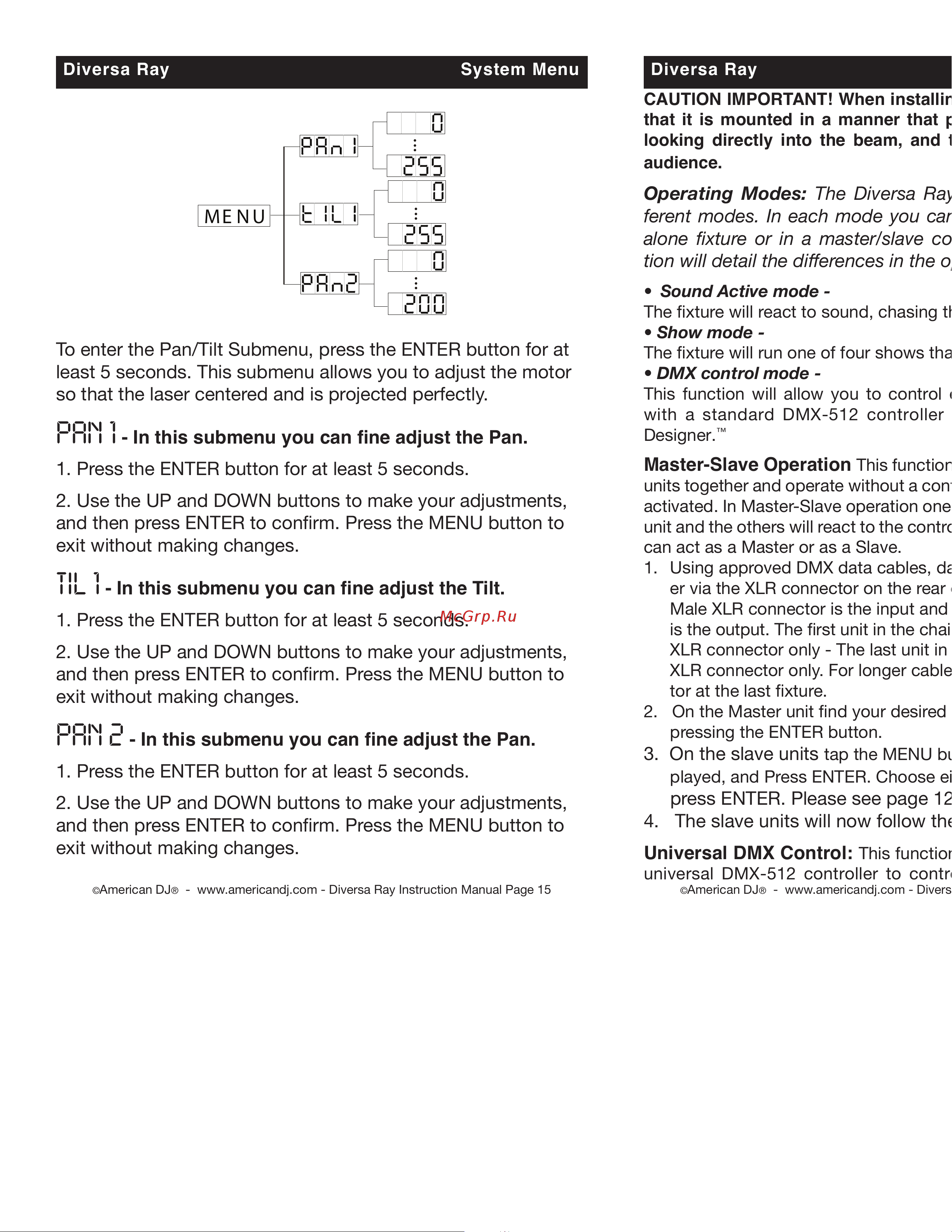

![ADJ DiversaRAY [8/12] On the slave units](/views2/1990720/page8/bg8.png)
©American DJ® - www.americandj.com - Diversa Ray Instruction Manual Page 15 ©American DJ® - www.americandj.com - Diversa Ray Instruction Manual Page 16
CAUTION IMPORTANT! When installing this projector, make sure
that it is mounted in a manner that prevents the audience from
looking directly into the beam, and the beam from striking the
audience.
Operating Modes: The Diversa Ray can operate in three dif-
ferent modes. In each mode you can run the fixture as a stand
alone fixture or in a master/slave confiugration. This next sec-
tion will detail the differences in the operating modes.
• Sound Active mode -
The fixture will react to sound, chasing through the built-in programs.
• Show mode -
The fixture will run one of four shows that you choose.
• DMX control mode -
This function will allow you to control each individual fixtures traits
with a standard DMX-512 controller such as the Elation® Show
Designer.
™
Master-Slave Operation This function will allow you to link up to 16
units together and operate without a controller. The units will be sound
activated. In Master-Slave operation one unit will act as the controlling
unit and the others will react to the controlling units programs. Any unit
can act as a Master or as a Slave.
1. Using approved DMX data cables, daisy chain your units togeth-
er via the XLR connector on the rear of the units. Remember the
Male XLR connector is the input and the Female XLR connector
is the output. The rst unit in the chain (master) will use the female
XLR connector only - The last unit in the chain will use the male
XLR connector only. For longer cable runs we suggest a termina-
tor at the last fixture.
2. On the Master unit find your desired show and set that show by
pressing the ENTER button.
3. On the slave units tap the MENU button until “SLND” is dis-
played, and Press ENTER. Choose either “SL 1” or “SL 2” and
press ENTER. Please see page 12 for more info.
4. The slave units will now follow the Master unit.
Universal DMX Control: This function allows you to use a Elation®
universal DMX-512 controller to control the chases and patterns,
Diversa Ray Operation Diversa Ray System Menu
To enter the Pan/Tilt Submenu, press the ENTER button for at
least 5 seconds. This submenu allows you to adjust the motor
so that the laser centered and is projected perfectly.
PAN 1 - In this submenu you can ne adjust the Pan.
1. Press the ENTER button for at least 5 seconds.
2. Use the UP and DOWN buttons to make your adjustments,
and then press ENTER to conrm. Press the MENU button to
exit without making changes.
TIL 1 - In this submenu you can ne adjust the Tilt.
1. Press the ENTER button for at least 5 seconds.
2. Use the UP and DOWN buttons to make your adjustments,
and then press ENTER to conrm. Press the MENU button to
exit without making changes.
PAN 2 - In this submenu you can ne adjust the Pan.
1. Press the ENTER button for at least 5 seconds.
2. Use the UP and DOWN buttons to make your adjustments,
and then press ENTER to conrm. Press the MENU button to
exit without making changes.
ME N U
