©American DJ® - www.americandj.com - Diversa Ray Instruction Manual Page 8©American DJ® - www.americandj.com - Diversa Ray Instruction Manual Page 7

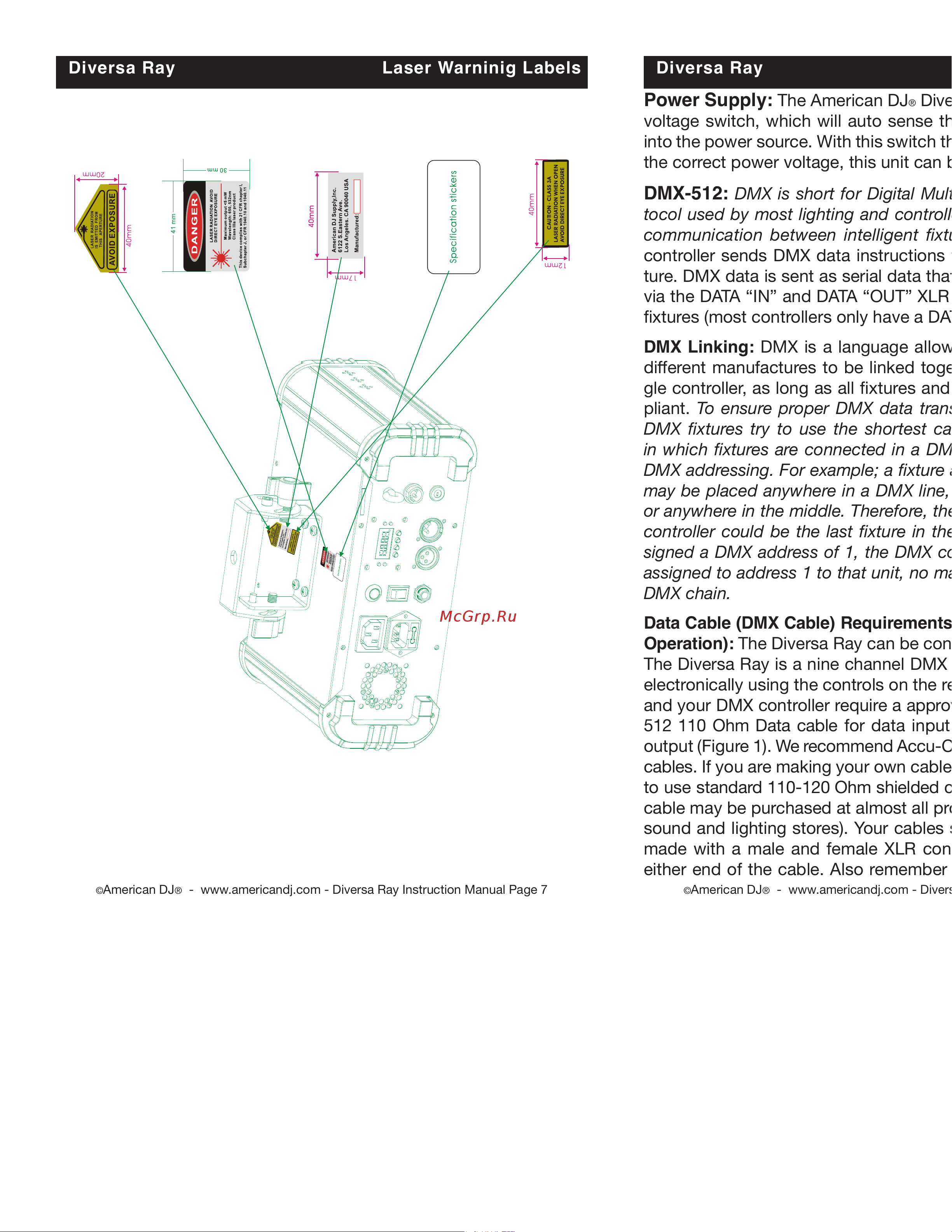

Diversa Ray Laser Warninig Labels Diversa Ray Set Up

Power Supply: The American DJ® Diversa Ray contains a automatic

voltage switch, which will auto sense the voltage when it is plugged

into the power source. With this switch there is no need to worry about

the correct power voltage, this unit can be plugged in anywhere.

DMX-512: DMX is short for Digital Multiplex. This is a universal pro-

tocol used by most lighting and controller manufactures as a form of

communication between intelligent fixtures and controllers. A DMX

controller sends DMX data instructions from the controller to the fix-

ture. DMX data is sent as serial data that travels from fixture to fixture

via the DATA “IN” and DATA “OUT” XLR terminals located on all DMX

fixtures (most controllers only have a DATA “OUT” terminal).

DMX Linking: DMX is a language allowing all makes and models of

dierent manufactures to be linked together and operate from a sin-

gle controller, as long as all xtures and the controller are DMX com-

pliant. To ensure proper DMX data transmission, when using several

DMX fixtures try to use the shortest cable path possible. The order

in which fixtures are connected in a DMX line does not influence the

DMX addressing. For example; a fixture assigned a DMX address of 1

may be placed anywhere in a DMX line, at the beginning, at the end,

or anywhere in the middle. Therefore, the first fixture controlled by the

controller could be the last fixture in the chain. When a fixture is as-

signed a DMX address of 1, the DMX controller knows to send DATA

assigned to address 1 to that unit, no matter where it is located in the

DMX chain.

Data Cable (DMX Cable) Requirements (For DMX and Master/Slave

Operation): The Diversa Ray can be controlled via DMX-512 protocol.

The Diversa Ray is a nine channel DMX unit. The DMX address is set

electronically using the controls on the rear panel of the unit. Your unit

and your DMX controller require a approved DMX-

512 110 Ohm Data cable for data input and data

output (Figure 1). We recommend Accu-Cable DMX

cables. If you are making your own cables, be sure

to use standard 110-120 Ohm shielded cable (This

cable may be purchased at almost all professional

sound and lighting stores). Your cables should be

made with a male and female XLR connector on

either end of the cable. Also remember that DMX

Figure 1
