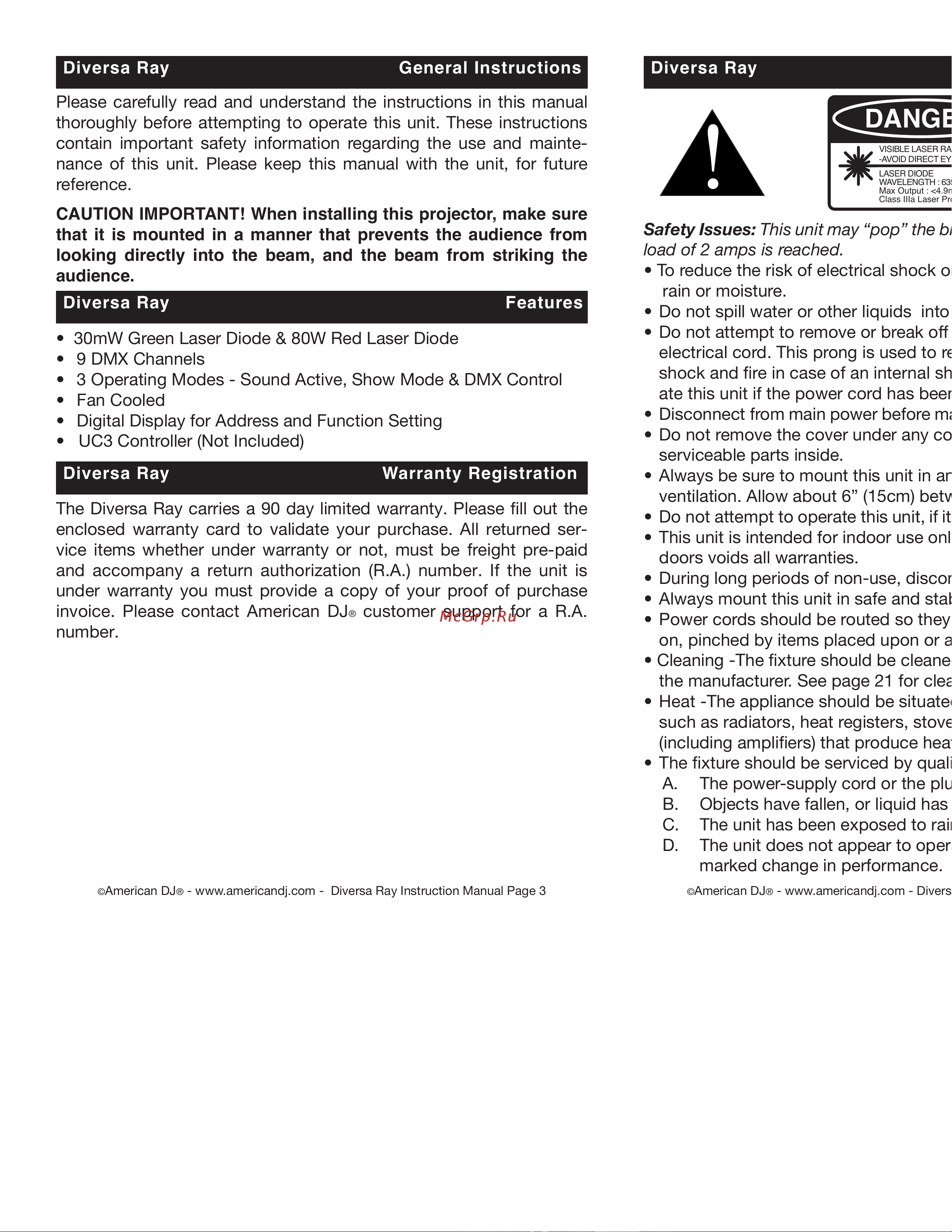

Please carefully read and understand the instructions in this manual
thoroughly before attempting to operate this unit. These instructions
contain important safety information regarding the use and mainte-
nance of this unit. Please keep this manual with the unit, for future
reference.
CAUTION IMPORTANT! When installing this projector, make sure
that it is mounted in a manner that prevents the audience from
looking directly into the beam, and the beam from striking the
audience.
Diversa Ray General Instructions Diversa Ray Safety Precautions
Safety Issues: This unit may “pop” the breaker if the maximum allotted
load of 2 amps is reached.
• To reduce the risk of electrical shock or re, do not expose this unit
rain or moisture.
• Do not spill water or other liquids into or on to your unit.
• Do not attempt to remove or break o the ground prong from the
electrical cord. This prong is used to reduce the risk of electrical
shock and re in case of an internal short. Do not attempt to oper-
ate this unit if the power cord has been frayed or broken.
• Disconnect from main power before making any type of connection.
• Do not remove the cover under any conditions. There are no user
serviceable parts inside.
• Always be sure to mount this unit in an area that will allow proper
ventilation. Allow about 6” (15cm) between this device and a wall.
• Do not attempt to operate this unit, if it becomes damaged.
• This unit is intended for indoor use only, use of this product out-
doors voids all warranties.
• During long periods of non-use, disconnect the unit’s main power.
• Always mount this unit in safe and stable matter.
• Power cords should be routed so they are not likely to be walked
on, pinched by items placed upon or against them.
• Cleaning -The fixture should be cleaned only as recommended by
the manufacturer. See page 21 for cleaning details.
• Heat -The appliance should be situated away from heat sources
such as radiators, heat registers, stoves, or other appliances
(including amplifiers) that produce heat.
• The fixture should be serviced by qualified service personnel when:
A. The power-supply cord or the plug has been damaged.
B. Objects have fallen, or liquid has been spilled into the unit.
C. The unit has been exposed to rain or water.
D. The unit does not appear to operate normally or exhibits a
marked change in performance.
• 30mW Green Laser Diode & 80W Red Laser Diode
• 9 DMX Channels
• 3 Operating Modes - Sound Active, Show Mode & DMX Control
• Fan Cooled
• Digital Display for Address and Function Setting
• UC3 Controller (Not Included)
Diversa Ray Features
Diversa Ray Warranty Registration
The Diversa Ray carries a 90 day limited warranty. Please fill out the
enclosed warranty card to validate your purchase. All returned ser-
vice items whether under warranty or not, must be freight pre-paid
and accompany a return authorization (R.A.) number. If the unit is
under warranty you must provide a copy of your proof of purchase
invoice. Please contact American DJ® customer support for a R.A.
number.

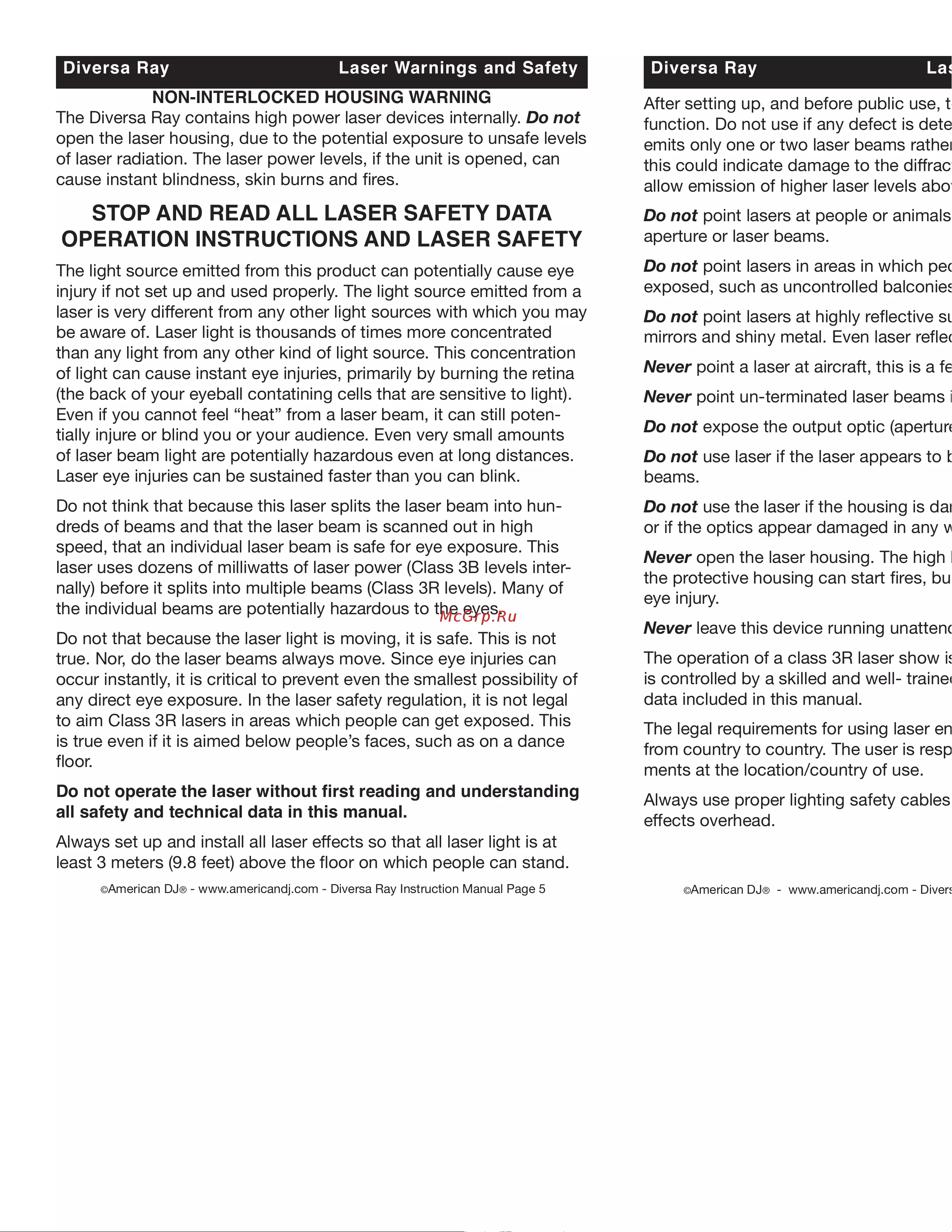

DANGER
VISIBLE LASER RADIATION
-AVOID DIRECT EYE EXPOSURE
LASER DIODE
WAVELENGTH : 635~650 nm
Max Output : <4.9mW
Class IIIa Laser Product
!
!
