©American DJ® - www.americandj.com - Diversa Ray Instruction Manual Page 12©American DJ® - www.americandj.com - Diversa Ray Instruction Manual Page 11
ADDR - DMX Address Setting.
1. Tap the either the MENU, UP, or DOWN buttons until “ADDR”
is displayed, press ENTER.
2. The current address will now be displayed and ashing.
Press the UP or DOWN buttons to nd your desired address.
Press ENTER to set your desired DMX address.
SLND - This will let you set unit as a master or slave in a
master/slave conguration.
1. Tap the MENU button until “SLND” is displayed, press
ENTER. Either “SL 1” or “SL 2” will be displayed.
2. Tap the UP or DOWN buttons until your desired setting is
displayed, press ENTER to conm.
SHND: SH 0 - SH 23 - Show modes 0-23. Show Mode
can run with or without sound active mode activated.
1. Press the MENU button until “SHND” is displayed, press ENTER.
2. “SH X” will now be displayed, “X” representing a number between
0-23. Shows 1-23 are preprogrammed shows, while Show 0 is random
show mode. Press the UP or DOWN buttons to nd your desired show.
3. Press ENTER to conrm, and then press and hold the MENU button
for at least 3 seconds to activate. To exit without making any adjust-
ments press the MENU button. When show mode is activated, you can
change the show without have to go through steps 1 & 2.
SOUN - Sound Active mode.
1. Tap the MENU button until “SOUN” is displayed, press
ENTER.
2. The display will show either “ON” or “OFF”. Press the UP or
DOWN buttons to select “ON” to activate sound active mode, or

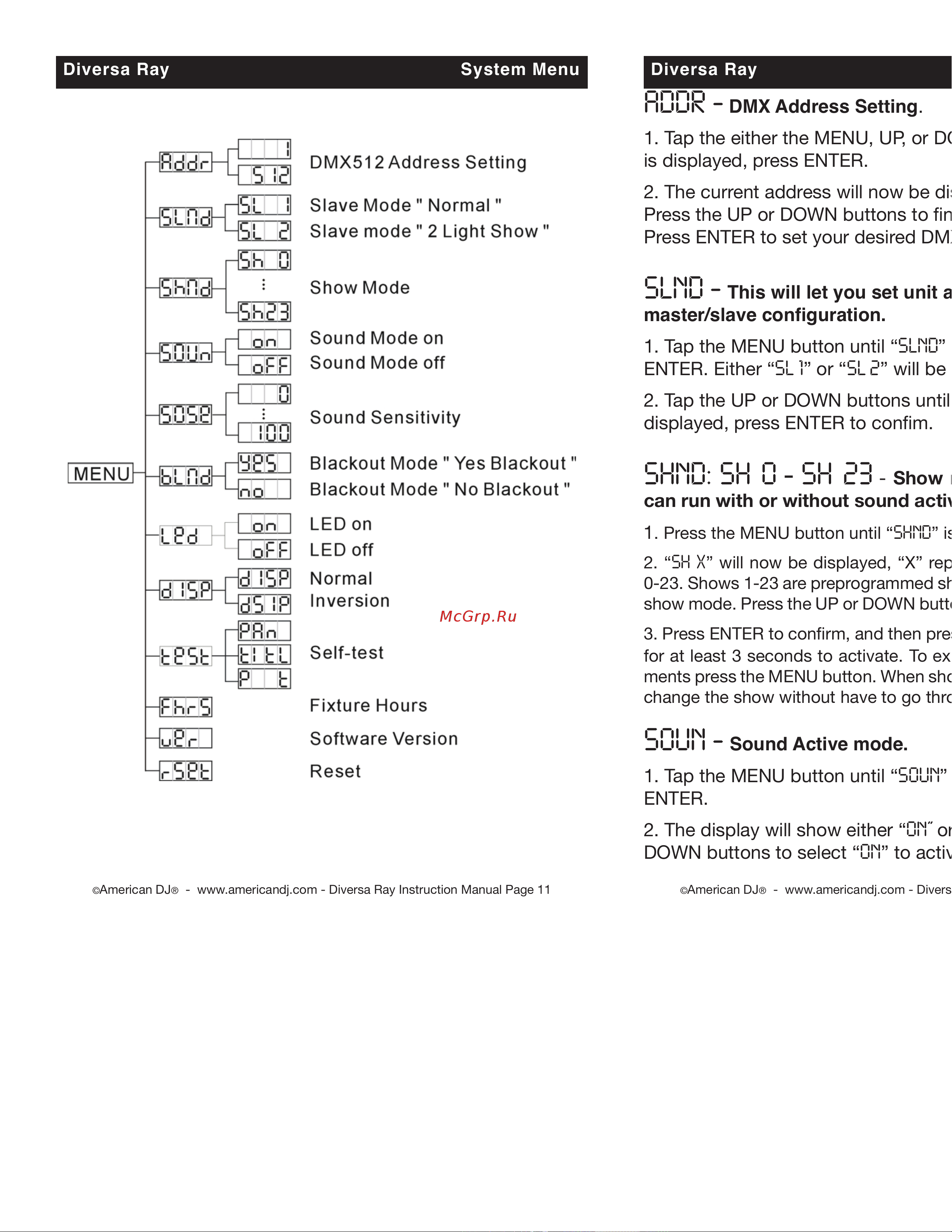

Diversa Ray System Menu Diversa Ray System Menu
