ADJ DiversaRAY [12/12] Auto sensing voltage

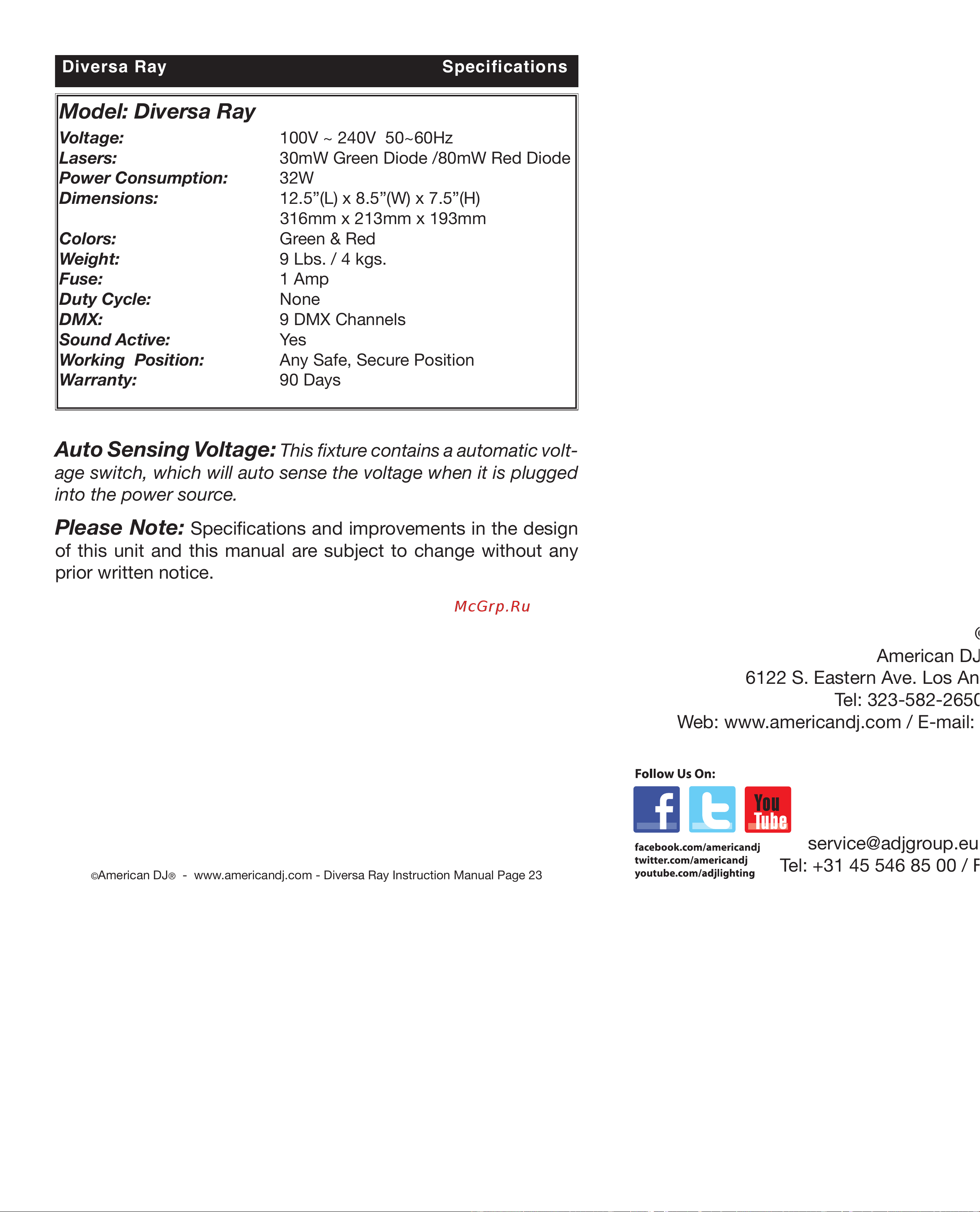

![ADJ DiversaRAY [12/12] Auto sensing voltage](/views2/1990720/page12/bgc.png)
Model: Diversa Ray
Voltage: 100V ~ 240V 50~60Hz
Lasers: 30mW Green Diode /80mW Red Diode
Power Consumption: 32W
Dimensions: 12.5”(L) x 8.5”(W) x 7.5”(H)
316mm x 213mm x 193mm
Colors: Green & Red
Weight: 9 Lbs. / 4 kgs.
Fuse: 1 Amp
Duty Cycle: None
DMX: 9 DMX Channels
Sound Active: Yes
Working Position: Any Safe, Secure Position
Warranty: 90 Days
Please Note: Specications and improvements in the design
of this unit and this manual are subject to change without any
prior written notice.
Diversa Ray Specifications
©American DJ Supply
American DJ World Headquarters:
6122 S. Eastern Ave. Los Angeles, CA 90040 USA
Tel: 323-582-2650 / Fax: 323-582-2610
Web: www.americandj.com / E-mail: info@americandj.com
American DJ Europe
Junostraat 2
6468 EW Kerkrade
Netherlands
service@adjgroup.eu / www.americandj.eu
Tel: +31 45 546 85 00 / Fax: +31 45 546 85 99
Auto Sensing Voltage: This xture contains a automatic volt-
age switch, which will auto sense the voltage when it is plugged
into the power source.
©American DJ® - www.americandj.com - Diversa Ray Instruction Manual Page 23
