LINE 6 Relay G70 [5/40] Quick start steps
![LINE 6 Relay G70 [5/40] Quick start steps](/views2/1992380/page5/bg5.png)
1•1
Quick Start
Relay G70/G75 Advanced Guide
QuiCk sTarT
We always recommend reading through the manual rst, but if you want to get started right
away with your Line 6 Relay
®
system, please follow the steps below.
NAV EDIT
SELECT / MUTE
P
U
S
H
T
O
S
E
T
Relay G70
Transmitter
Amp
Guitar
Relay G75
Out A
5V USB
Locking
Collar
OR

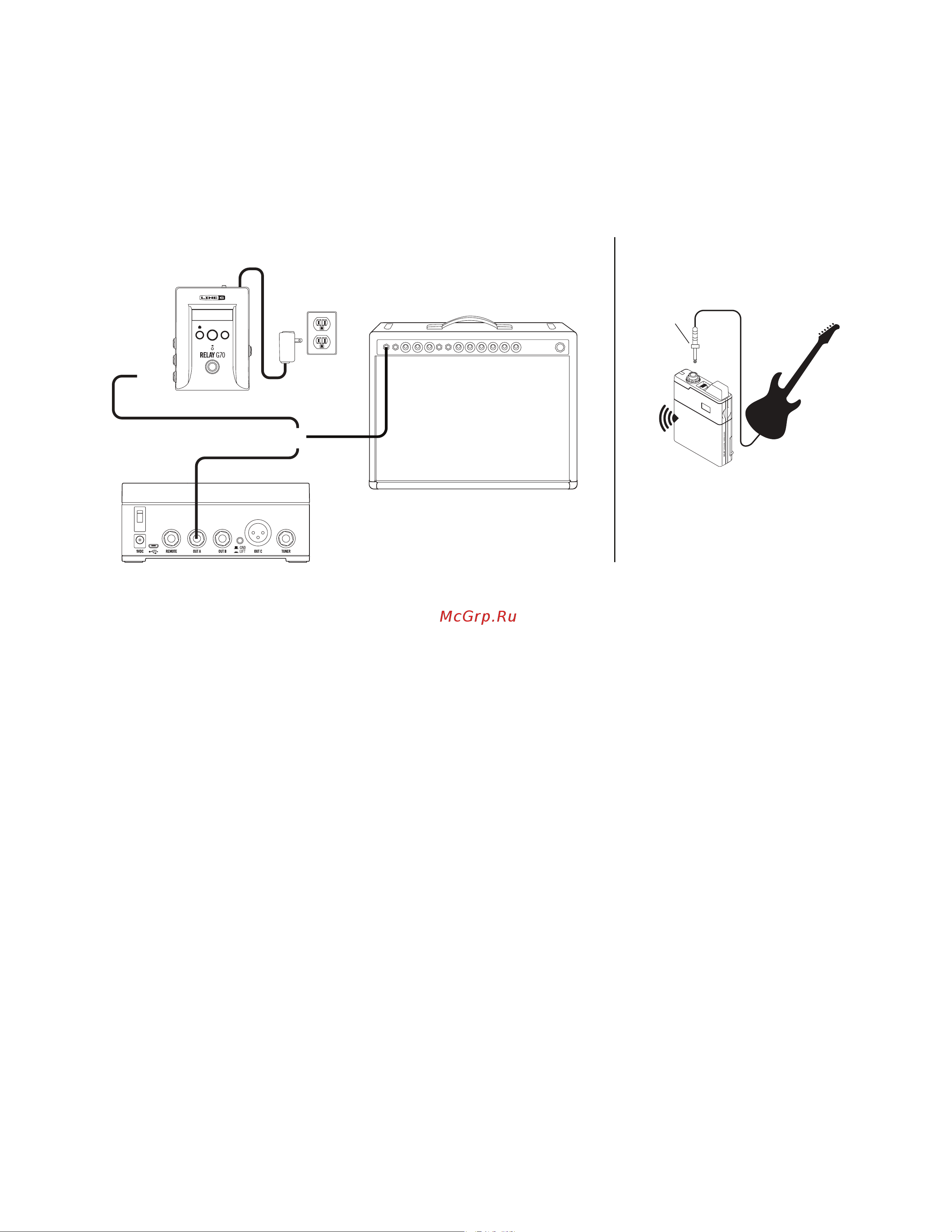

Quick start hook up diagram
Quick Start Steps
1. Remove the Receiver, Transmitter, power supply and guitar cable from the packaging.
2. Place the Receiver in a location where the top of the unit is not obstructed by any
metal, computers, mobile phones or tablets. Ensure that there are no Transmitters
other than the Relay TB516 G in use within 6 feet (2 meters) of the Receiver.
3. Use the supplied USB cable to connect the 5V power supply to the Micro-USB
connection on the Receiver and plug the power supply into an AC outlet.
4. Connect the Receiver’s Output A (1/4”) to your amplier input or the input of the next
pedal on your pedalboard.
5. Turn the power switch on the rear of the Receiver On.
6. Insert 2 fresh AA batteries in the Transmitter.
7. Plug the supplied guitar cable into the Transmitter’s locking connector Input, turning
the locking collar until it is snug (do not over-tighten - the collar just needs to be
secured).
8. Plug the other end of the guitar cable into your guitar.
9. Turn On the Transmitter, check for a green light (yellow or red indicate low battery) and
start playing and enjoying wireless freedom!
