2•1
System Overview
Relay G70/G75 Advanced Guide
sysTem overview
Welcome to the Relay G70/G75 Advanced Guide. This guide contains details on the
features and functionality of the Line 6 Relay
®
G70 & G75 Receivers and TB516 G Wireless
Transmitter. Please also visit http://line6.com/support/manuals/ for all the latest Line 6
product documentation, including the Relay G70/G75 Pilot’s Guide.
Relay G70 Receiver
Model RS516
Relay TB516 G Guitar
Transmitter
Relay G75 Receiver
Model RT516
Model TB516G
P/N 98-033-0069

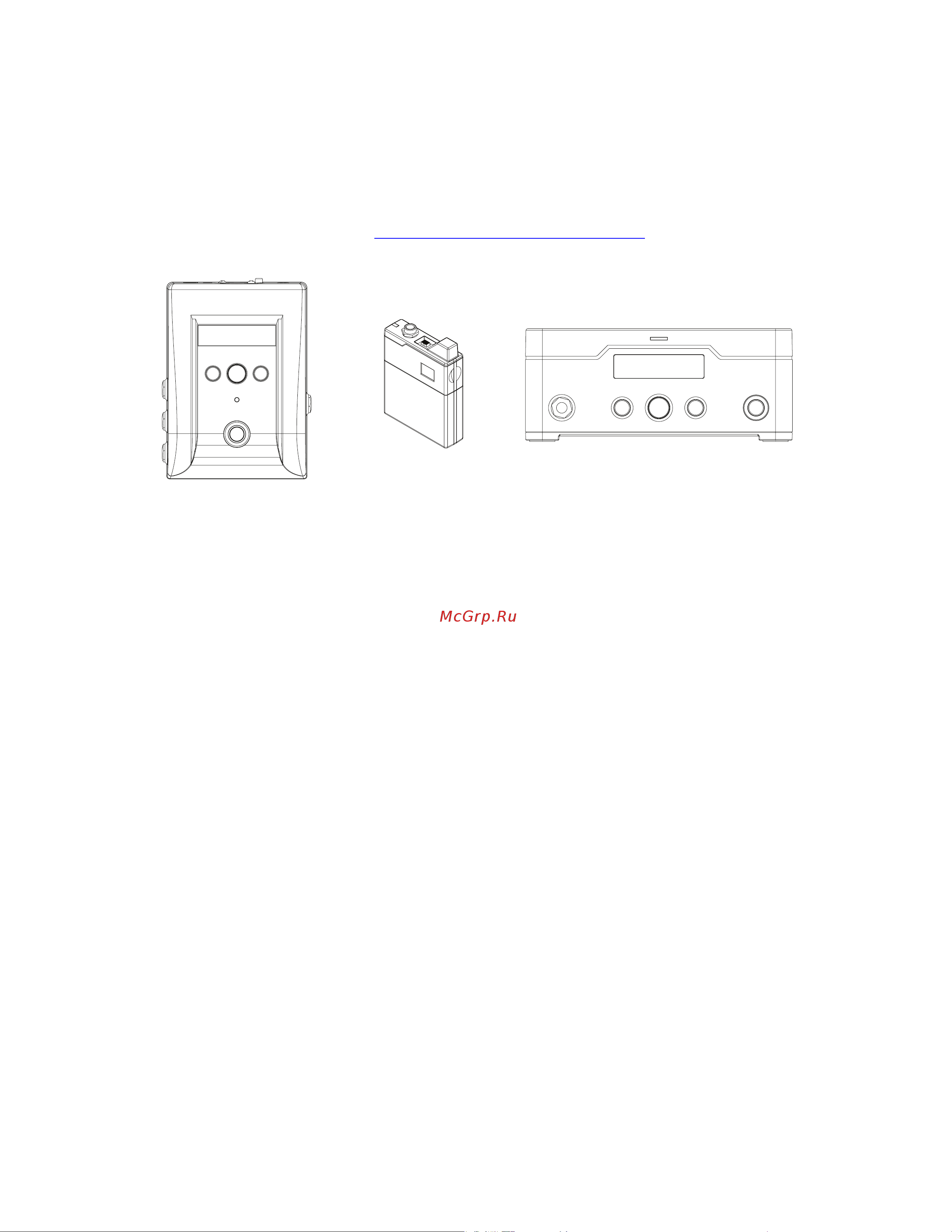

The Relay G70 and G75 Receivers and TB516 G Transmitter components
Key Features
• Up to 16 channels of lossless 24-bit audio for uncompromised tone
• Industry-leading audio quality proven on major tours worldwide
• Use multiple Transmitters and switch guitars with ease*
• Best-in-class dynamic range with less than 1.5ms of latency
• Noise-free, full-frequency operation up to 200 feet from Receiver
• Locking 1/4” guitar input on Transmitter—no special cables required
*Extra Transmitters sold separately
• Choiceofcompact“stompbox”or“amp-top”styleReceiver,fortheutmostexibility
in cable routing and access to the user interface
• Twoselectable1/4”guitaroutputswithcongurableOn/O,Gain,andCableToneper
guitar or Scene
• Additionaldedicated1/4”“alwayson,”Outputjackfordirectconnectiontoyourtuner
• AbreakthroughcongurableXLRdirectoutputgreaterthan120dBdynamicrange,
24-bit accuracy audio performance and wireless freedom
• 1/4” Auxiliary Input jack on Receiver to connect a wired guitar for ultimate
performanceexibility
• Use of Alkaline (provided) or Rechargeable AA batteries (available separately).
• Rugged metal Transmitter and Receiver construction.
