Relay G70 & G75 Receiver
Relay G70/G75 Advanced Guide
relay G70 & G75 reCeiver
This Chapter provides details on the features and functionality of the Line 6 Relay
®
G70 and
G75 Wireless Receivers.
Receiver Features
NAVEDIT
SELECT / MUTE
P
U
S
H
T
O
S
E
T
1 2 73 4 6
14
16
14
15
16
5
16
8 109 11
12 13
13
7
10
9
8
14
3
4
11
12
12 65
15
17

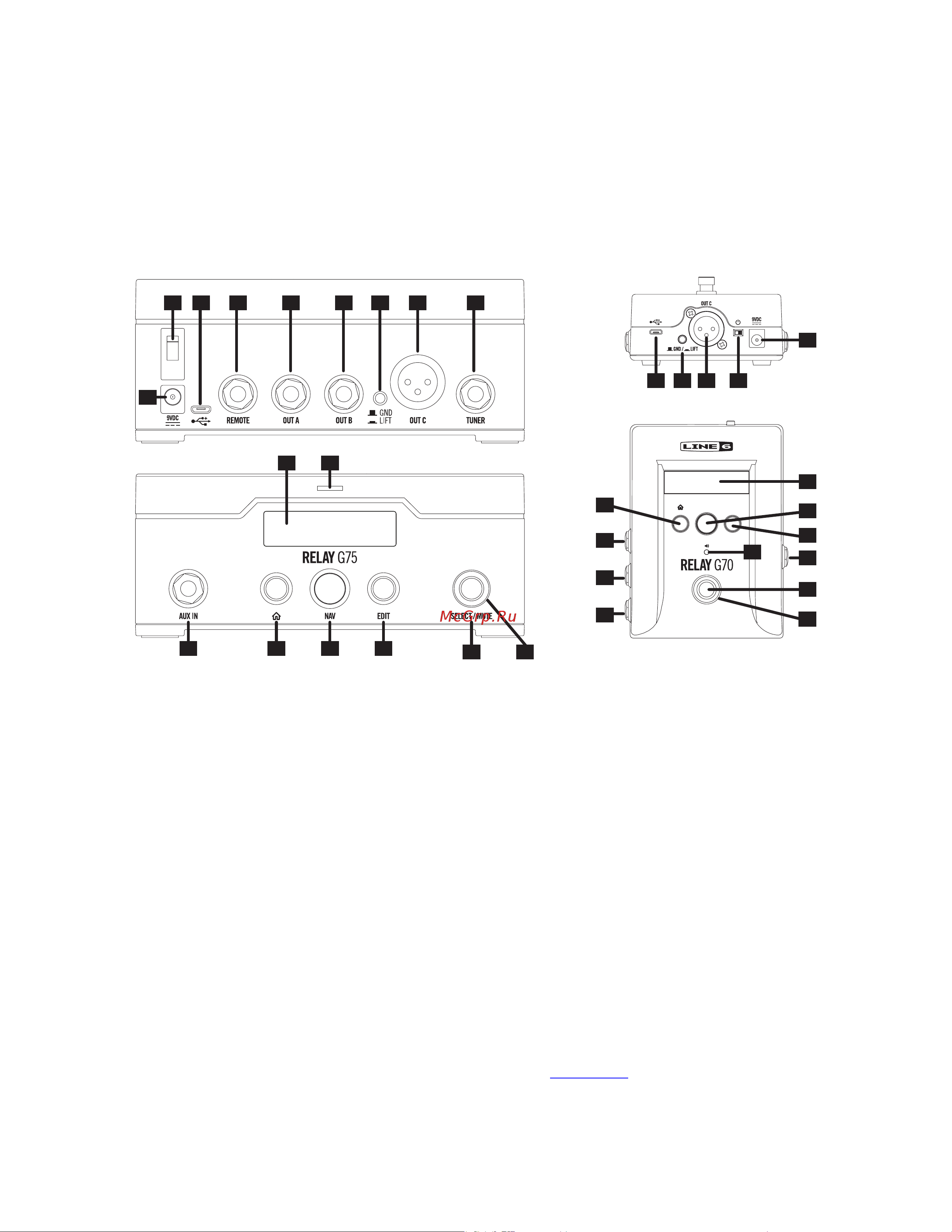

Relay G75 and G70 Receivers
1. Power: Use this switch to power the Receiver On or O.
2. Micro USB: Use as primary DC (5VDC /1A) power with included cable and AC adapter, and for the
installation of rmware updates.
3. Out A: A 1/4” unbalanced, full-performance output intended to drive a guitar/bass amplier, stomp
box or multi-eects device inputs.
4. Out B: Like Out A, this is a 1/4” unbalanced output, but can be congured separately within your
Scenes - such as for connecting to an additional amplier or separate monitor system.
5. Ground Lift: Toggle this switch to disable pin 1 of the XLR Out C for “ground lift,” which can be used
to remedy grounding noise issues.
6. Out C: An XLR balanced output with ground lift - perfect for connecting to a PA, or other XLR
inputs. This output can be congured separately within your Scenes from Out A and Out B.
7. Tuner Out: A 1/4” output with a guitar level signal. The Tuner Out is always active and cannot be
muted via Scene control, which is intended for connecting to a separate Tuner. Note that your
Relay Receiver also includes its own built-in Tuner - see page 5•13.
