Chapter 9: Sampler
102
Torq 2.0 User Guide

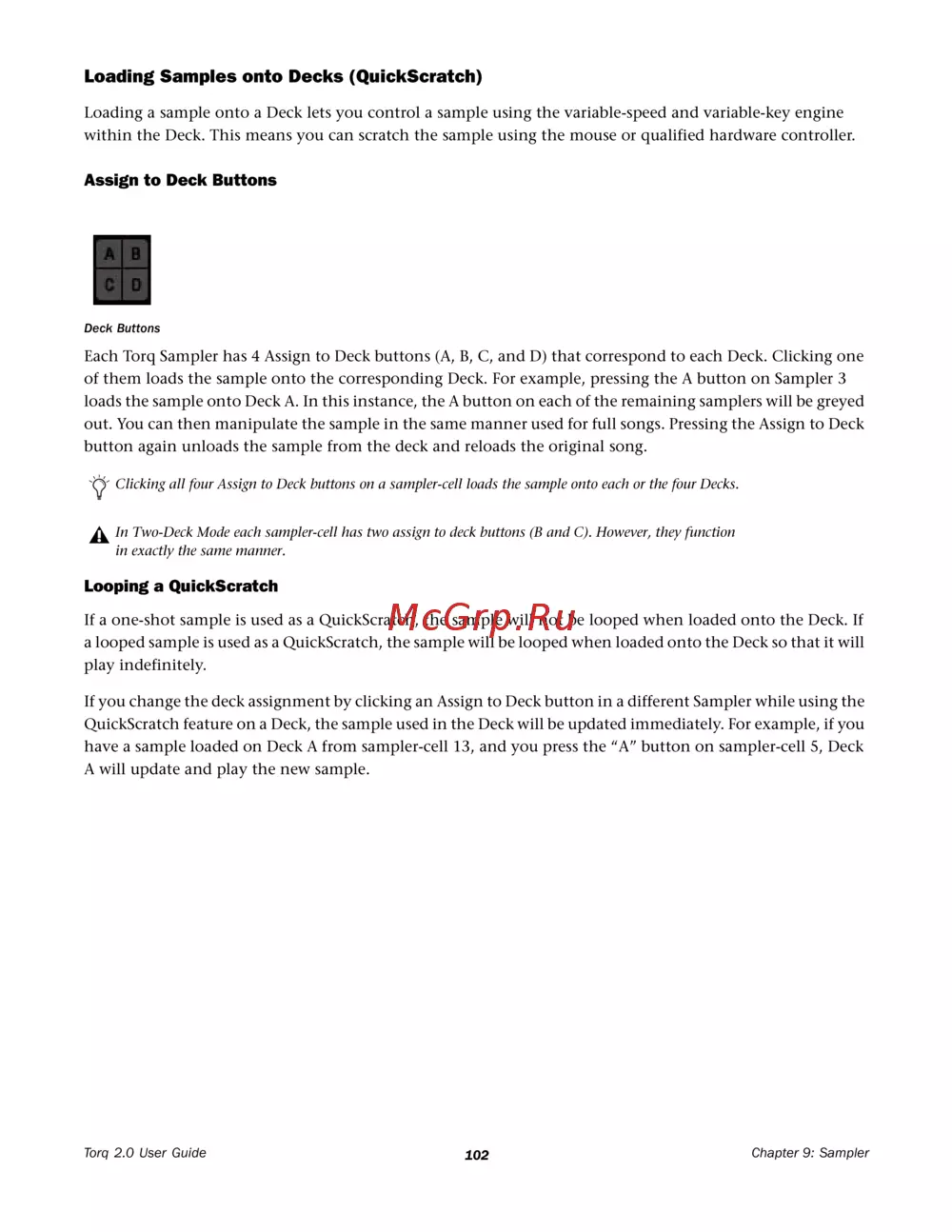

Loading Samples onto Decks (QuickScratch)
Loading a sample onto a Deck lets you control a sample using the variable-speed and variable-key engine
within the Deck. This means you can scratch the sample using the mouse or qualified hardware controller.
Assign to Deck Buttons
Each Torq Sampler has 4 Assign to Deck buttons (A, B, C, and D) that correspond to each Deck. Clicking one
of them loads the sample onto the corresponding Deck. For example, pressing the A button on Sampler 3
loads the sample onto Deck A. In this instance, the A button on each of the remaining samplers will be greyed
out. You can then manipulate the sample in the same manner used for full songs. Pressing the Assign to Deck
button again unloads the sample from the deck and reloads the original song.
Looping a QuickScratch
If a one-shot sample is used as a QuickScratch, the sample will not be looped when loaded onto the Deck. If
a looped sample is used as a QuickScratch, the sample will be looped when loaded onto the Deck so that it will
play indefinitely.
If you change the deck assignment by clicking an Assign to Deck button in a different Sampler while using the
QuickScratch feature on a Deck, the sample used in the Deck will be updated immediately. For example, if you
have a sample loaded on Deck A from sampler-cell 13, and you press the “A” button on sampler-cell 5, Deck
A will update and play the new sample.
Deck Buttons
Clicking all four Assign to Deck buttons on a sampler-cell loads the sample onto each or the four Decks.
In Two-Deck Mode each sampler-cell has two assign to deck buttons (B and C). However, they function
in exactly the same manner.
