Chapter 12: Torq Preferences
122
Torq 2.0 User Guide

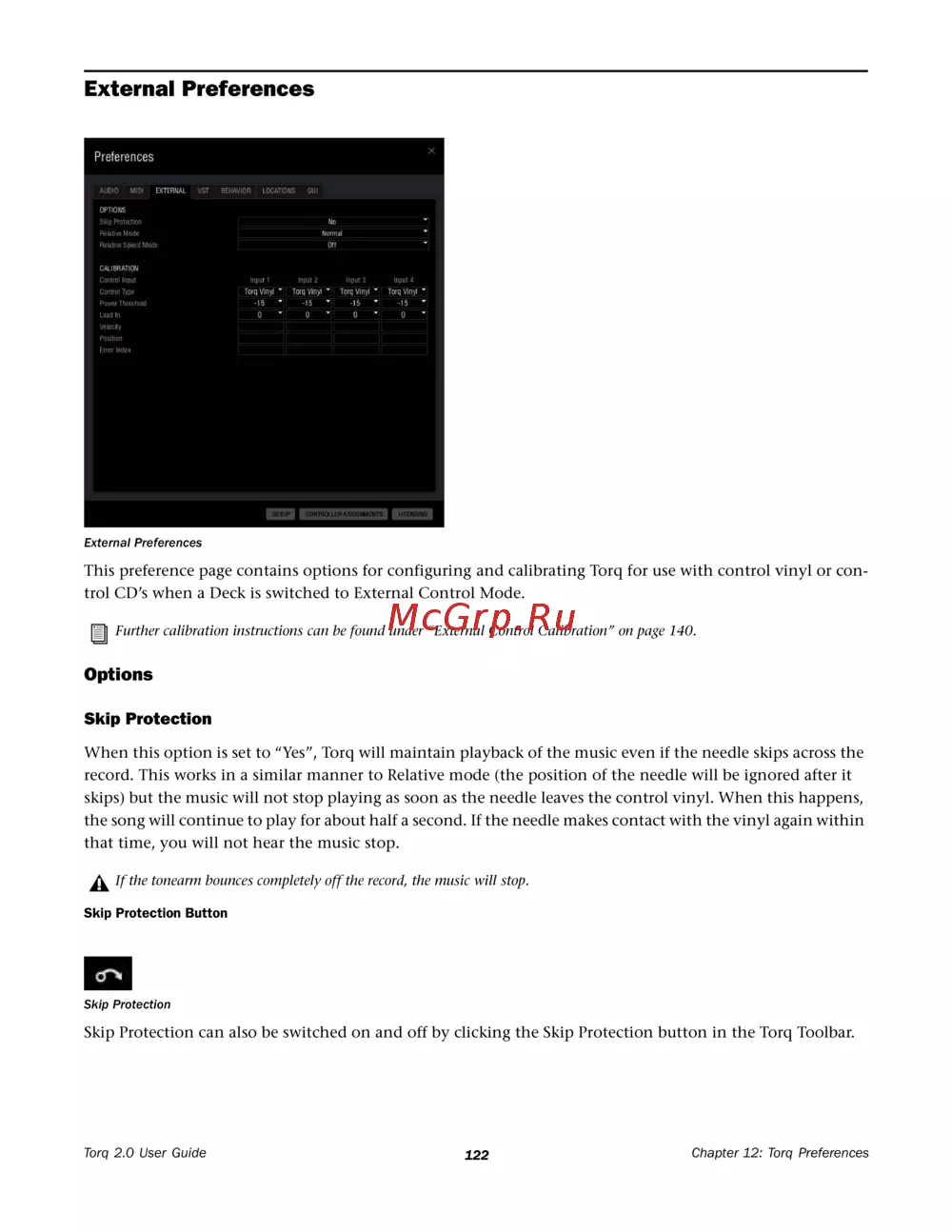

External Preferences
This preference page contains options for configuring and calibrating Torq for use with control vinyl or con-
trol CD’s when a Deck is switched to External Control Mode.
Options
Skip Protection
When this option is set to “Yes”, Torq will maintain playback of the music even if the needle skips across the
record. This works in a similar manner to Relative mode (the position of the needle will be ignored after it
skips) but the music will not stop playing as soon as the needle leaves the control vinyl. When this happens,
the song will continue to play for about half a second. If the needle makes contact with the vinyl again within
that time, you will not hear the music stop.
Skip Protection Button
Skip Protection can also be switched on and off by clicking the Skip Protection button in the Torq Toolbar.
External Preferences
Further calibration instructions can be found under “External Control Calibration” on page 140.
If the tonearm bounces completely off the record, the music will stop.
Skip Protection
