22 | English 2 610 A15 111 23.6.09
Function Buttons
Switch the display on and press the respective
button to select the desired option.
only for DGT 2
The DGT 2 can be connected with an electronic dis-
tance measuring tool. Control takes place via second-
ary assignment of the operating panel buttons.
Configuring the Measuring Tool
Switch the display on.
“Switching On the Display” see page 21.
Press the R/L and V/% buttons at the same time.
The standard indication is shown on the display.
To make the desired alterations, press the buttons
described in the following.
When all alterations have been entered, press the
R/L and V/% buttons at the same time again.
A long audio signal sounds and the settings are
shown on the display.
only for DGT 2:
Using the Compensator
For precise angle measuring, the compensator’s incli-
nation sensor must be activated. This automatically
compensates vertical deviations of the measuring
tool.

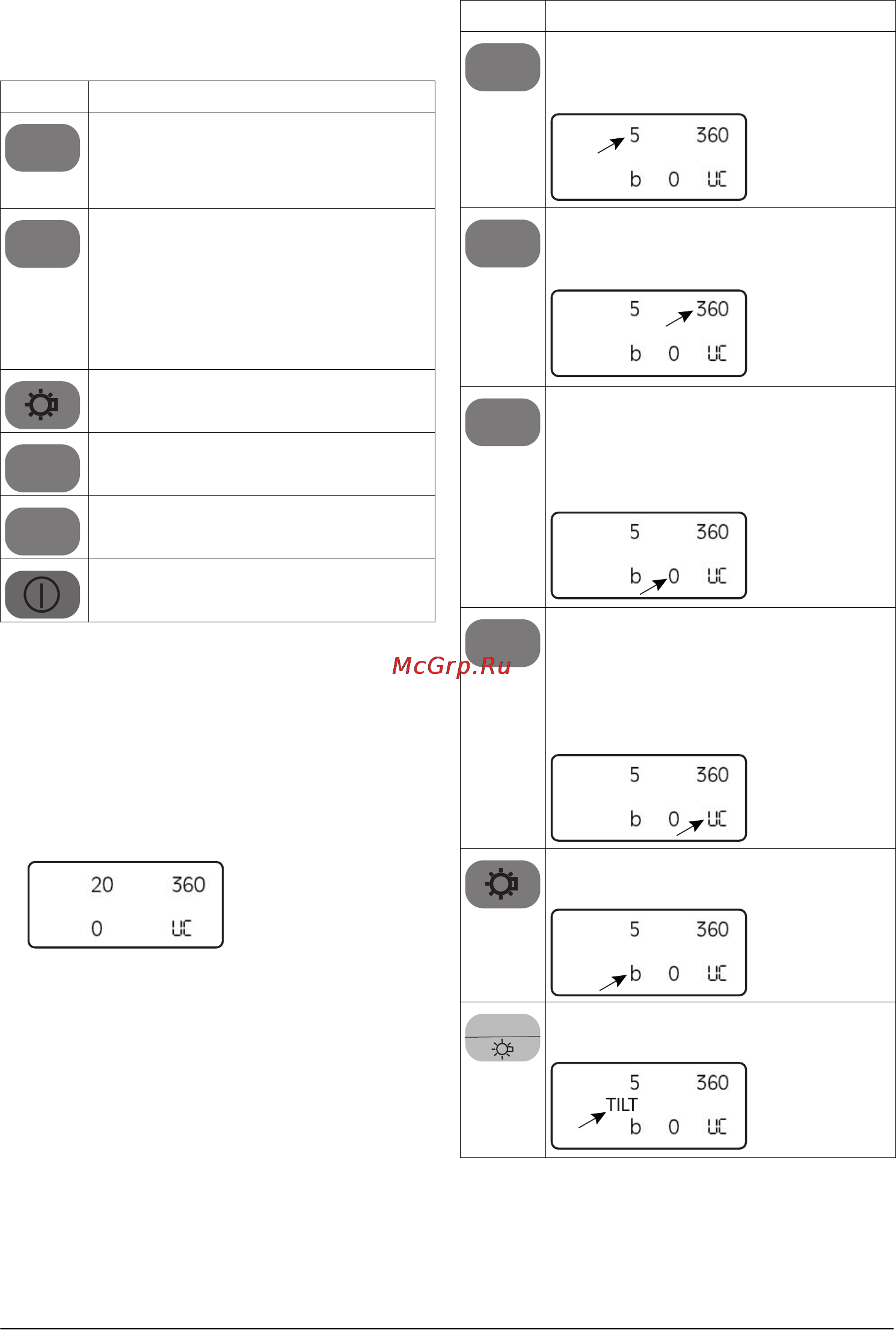

Button Function
Button for counting direction of the hori-
zontal circle:
Clockwise direction (“R”) or
anticlockwise direction (“L”)
Hold button for reading of horizontal cir-
cle:
For setting or releasing the current hori-
zontal-circle value.
When setting, the value remains
unchanged when turning the measuring
tool and the angle indication flashes.
On/Off button for llumination of display
and crosshair
Button for angle indication in grad (“G”)
or %
Button for zeroing the horizontal circle:
Sets the horizontal indication to zero
On/Off button for display 20
R/L
HOLD
V / %
OSET
Button Alteration/Indication
Changes the steps for the angle indica-
tion:
Step range selectable in 5’’ or 10’’.
Changes the angle indication for horizon-
tal and vertical angles from 360° to 400
grad.
Changes the auto power-off duration of
the display:
0 Auto power-off inactive
10 Power-off after 10 seconds
30 Power-off after 30 seconds.
Changes the zero points of the vertical-
angle circle:
ua Zenith angle
ub Vertical angle
uc Height angle
(see figure D)
Switches the audio signal that sounds at
0°, 90°, 180° and 270° on or off.
only for DGT 2:
Activates the compensator function
R/L
V / %
HOLD
OSET
FUNC
