12
English
Before you connect the AC power cord:
Be sure other devices are connected properly before plugging in the AC
power cord.

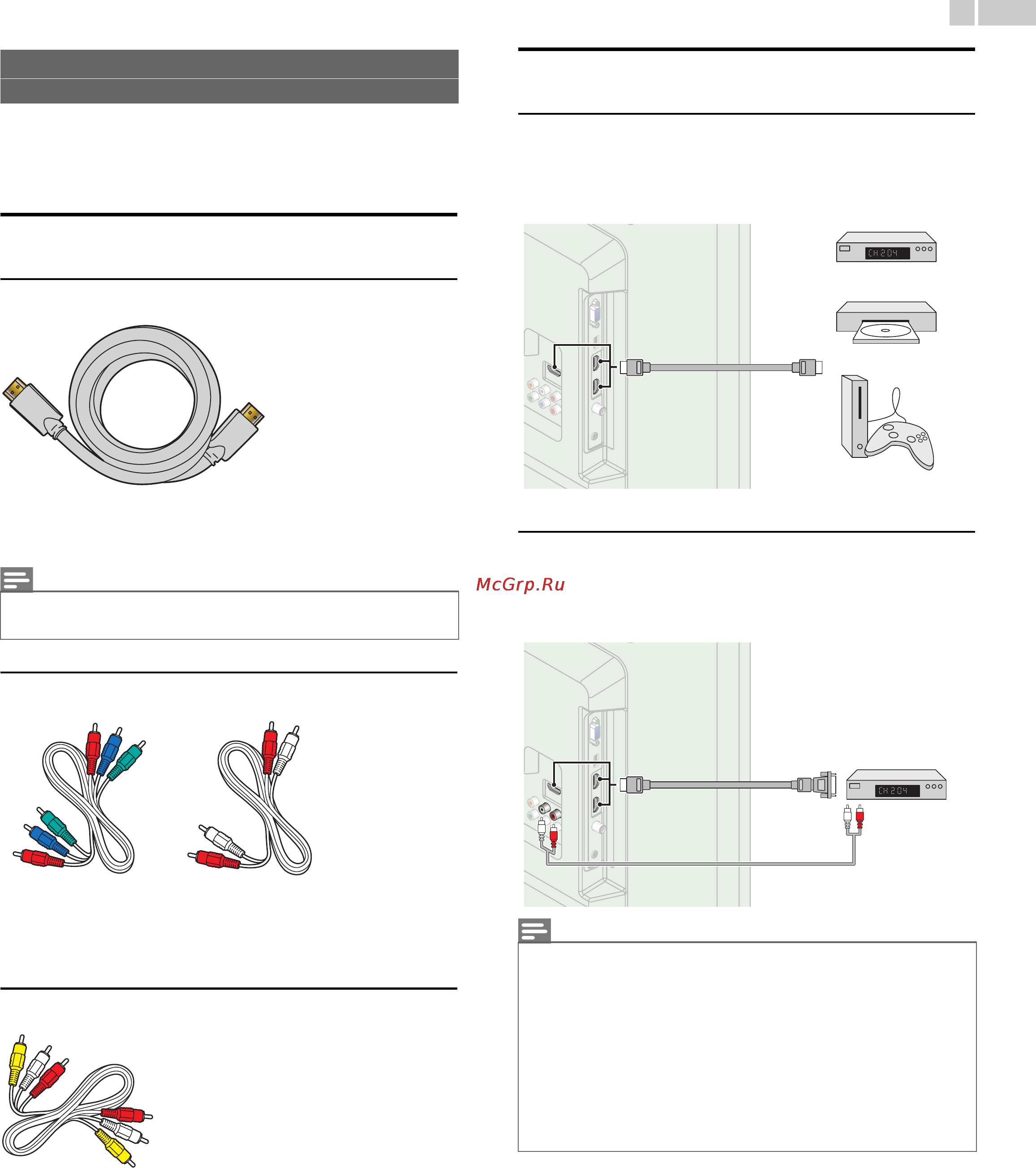

Selecting your connection quality
HDMI - Highest quality
Supports high-definition Digital signals and gives highest picture and
sound quality. Video and Audio signals are combined in one cable.
You must use HDMI for full high-definition video and to enable fun-Link
(HDMI CEC).
Component (Y Pb Pr) - High quality
Supports high-definition Analog signals but gives lower picture quality
than HDMI. Component (Y/Pb/Pr) Video cables combine red / green /
blue video cables with red / white audio (L/R) cables. Match the cable
colors when you connect to the TV.
Composite - Basic quality
For analog connections. Composite Video / Audio Analog cable usually
combine a yellow video cable with red / white audio (L/R) cables. With
this unit, yellow cable must be connected to Y (green) jack of
Component Video Input jacks.
Connecting your devices
HDMI Digital connection
HDMI connection offers the highest picture quality.
HDMI (High-Definition Multimedia Interface) transports high definition
Digital Video and multi-channel Digital Audio through a single cable.
HDMI-DVI connection
This unit can be connected to your device that has a DVI terminal.
Use an HDMI-DVI conversion cable for this connection and it requires
Audio Cables for Analog Audio signal as well.
No supplied cables are used with these connections:
•Please purchase the necessary cables at your local store.
Note(s)
• FUNAI HDMI supports HDCP (High-bandwidth Digital Contents Protection). HDCP
is a form of Digital Rights Management that protects high definition content in Blu-ray
discs or DVDs.
Note(s)
• Use an HDMI cable with the HDMI logo (a certified HDMI cable). High Speed HDMI
cable is recommended for the better compatibility.
For HDMI connection
• The unit accepts 480i / 480p / 720p / 1080i, 1080p 24/30/60Hz of video signals,
32kHz / 44.1kHz and 48kHz of audio signals.
• This unit accepts 5.1 channel audio signal (Dolby Digital) and 2 channel audio signal
(LPCM).
• The unit does not play 7.1 ch audio signals. With the connection via an HDMI cable,
7.1 ch audio will be output as 5.1ch audio signal.
• This unit accepts only signals in compliance with EIA861.
For HDMI-DVI connection
• The unit accepts 480i, 480p, 720p, 1080i and 1080p video signals.
• HDMI-DVI connection requires separate audio connections as well and the audio
signals are output as Analog (L/R) Audio.
• DVI does not display 480i image which is not in compliance with EIA/CEA-861/861B.
INININ
OUT
Set-top Box
or
Blu-ray disc player
or
HD game console
HDMI cable
INININ
OUT
IN
ININ
OUT
HDMI-DVI
conversion cable
Audio (L/R) cables
cable receiver or
satellite box with the
DVI Output jack
