7
English
3Get started
Features
• DTV / Analog TV / CATV
You can use your Remote Control to select channels which are broadcast in Digital
format and conventional Analog format. Also, cable and satellite subscribers can access
their TV channels.
• Information display
You can display the title, contents (DTV only) and other information of the current
program on the TV screen.
• Autoprogram
This unit automatically scans and memorizes channels available in your area, eliminating
difficult setup procedures.
• Child lock
This feature allows you to block children’s access to inappropriate programs.
• Closed Caption decoder
Built-in Closed Caption decoder displays text for Closed Caption supported programs.
• MTS / SAP tuner
Audio can be selected from the Remote Control.
• Auto Standby
If there is no Input signal and no operation for 15 minutes, the unit will go into Standby
mode automatically.
•Sleep timer
You can set the unit to go into Standby mode after a specific amount of time.
• Choices for on-screen language
Select your on-screen language: English, Spanish or French.
• Stereo sound function
• PLL frequency synthesized tuning
Provides free and easy channel selection and lets you tune directly to any channel using
the number and decimal point “•” keys on the remote control.
• Various adjustment for picture and sound
Customizes image quality suitable for your room and sets your sound preference.
• fun-Link via HDMI link
fun-Link allows your other HDMI link devices to be controlled by the HDMI cable
connected to your TV.
• HDMI Input
• HDMI-DVI Input
If your video device has DVI Output jack, use an HDMI-DVI conversion cable to
connect the unit.
• Component Video Input
• PC Input
Input from a Computer.
•AV Input
Audio and Video Input from an external device.
•USB terminal
The picture (JPEG) and video (Motion JPEG) files stored on a USB Memory Stick can
be played back on this unit.
• Digital Audio Output
Digital Audio (Supporting Dolby Digital) sent to Home Theaters and other Digital
Audio systems.
• Headphone Audio Output
Headphone 3.5mm stereo jack for personal listening.

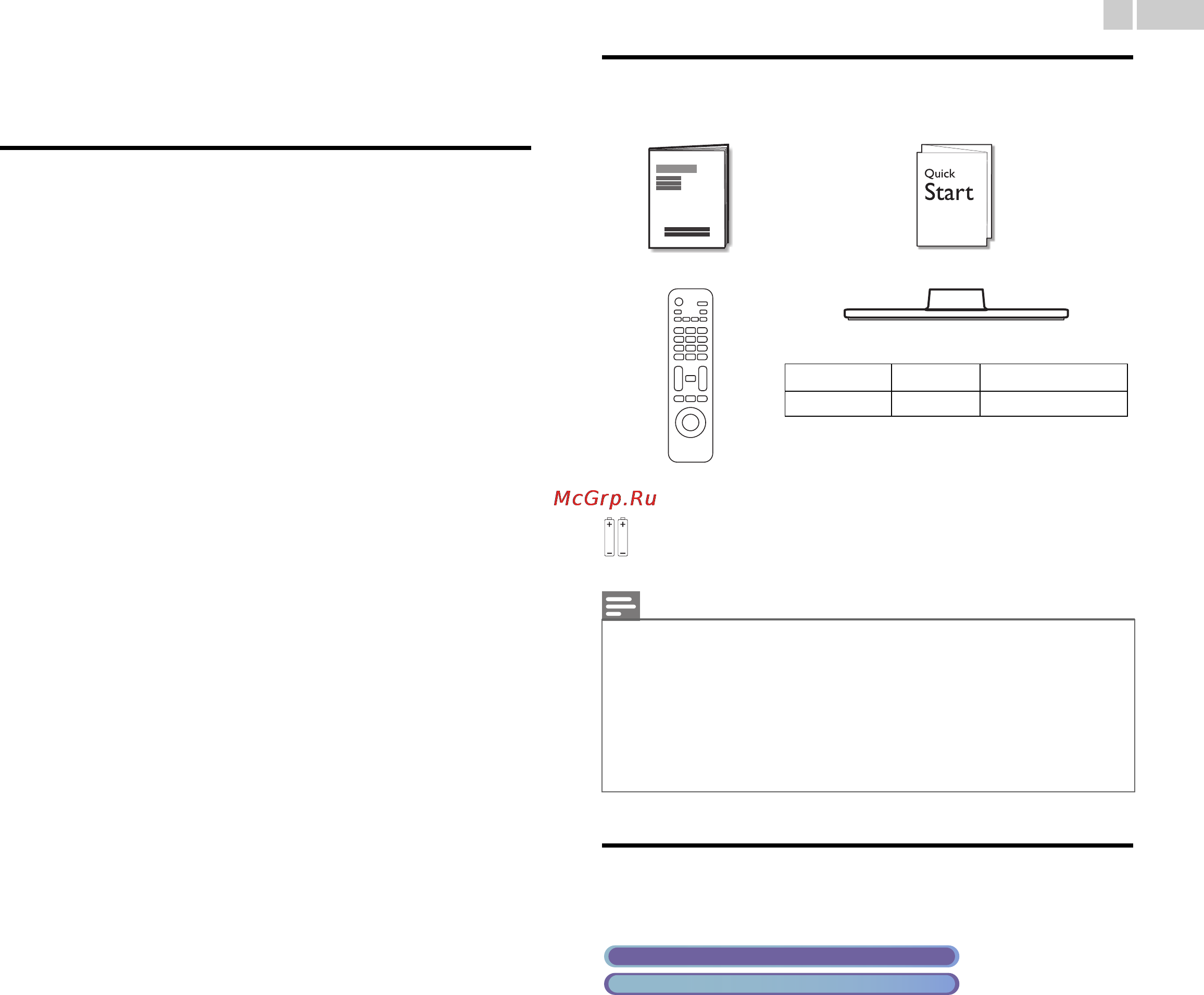

Supplied accessories
Batteries not included, AAA 1.5V x 2 Required.
Symbols used in this Owner’s Manual
The following is the description for the symbols used in this Owner’s
Manual. Description refers to:
• If neither symbol appears, the operation is applicable to both.
Owner’s Manual Quick Start guide
Remote Control TV base and screws
Screws packed with this unit.
Note(s)
• If you lose the screws, please purchase the above-mentioned Phillips head screws at
your local store.
• If you need to replace these accessories, please refer to the part name or No. with the
illustrations and call our toll free customer support line found on the cover of this
Owner’s Manual.
When using a Universal Remote Control to operate this unit.
• Make sure the component code on your Universal Remote Control is set to our
brand. Refer to the instruction book accompanying your remote control for more
details.
• We do not guarantee 100% interoperability with all universal remote controls.
Model Quantity Size
LF320FX4F 3 M4 x 0.551”(14mm)
AAA
AAA
Digital TV operation
Analog/Cable TV operation
