Aqua Mini Full DC Inverter Unitary Chiller 50Hz
5

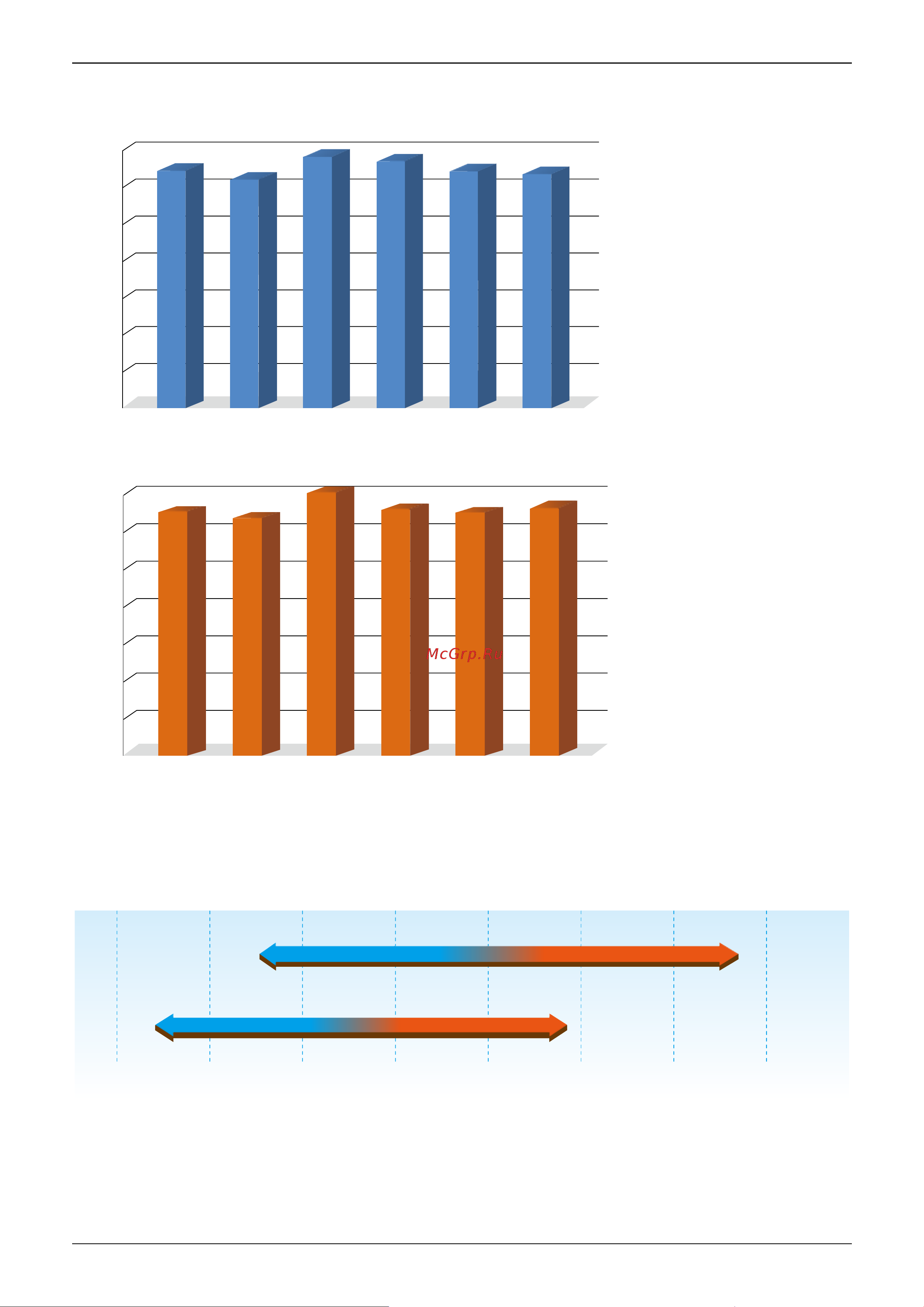

2.4 High efficiency
0
0.5
1
1
.5
2
2
.5
3
3.5
5kW 7kW 10kW 12kW 14kW 16kW
3.23
3.11
3.39
3.31
3.21
3.20
EER
0
0.5
1
1.5
2
2.5
3
3.5
5kW 7kW 10kW 12kW 14kW 16kW
3.24
3.2
3.5
3.31
3.25
3.30
COP
2.5 Wideoperationtemperaturerange
Stable and safe running at wide ambient temperature range, cooling performance from -5 ˚C to 46˚C,
heating from -15˚C to 27˚C.
COOLING MODE
HEATING MODE
Outdoor temp.
46°C
27°C
-5°C
-15°C
0 10203040
50
-10
-20
°C(D.B.)
2.6 Energy saving and high reliability
By adopting high efficiency plate heat exchanger, the energy consumption can be reduced.
