R
POULAN PRO PARTS LIST
PARAMOUNT PARTS LIST
R
WEED EATER PARTS LIST
R
R
PARTS LIST
REPLACES
1
Note: Illustration may differ from actual model due to design changes
PARTS LIST NO.
PAGE NO.
MODEL(s)
106--232761
136 & 141
DAT E
12/10/03
106--232761--6/11/03
r

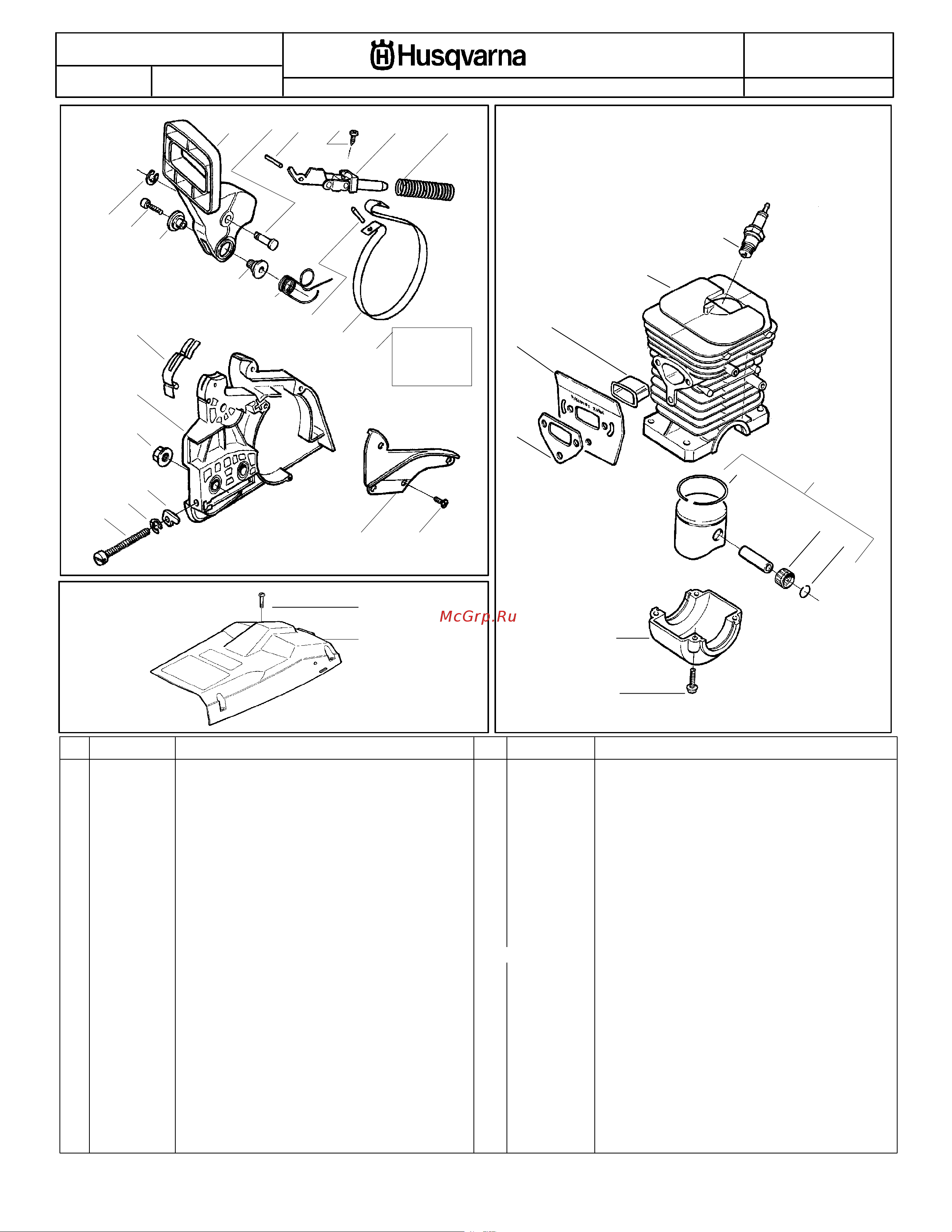

Chain
Brake
Assembly
1
3
45
6
13
11
10
2
9
8
7
15
16
21
22
18
19
20
17
14
12
35
26
32
25
27
28
29
31
33
30
34
23
24
1 530071348 Actuating Lever
2 530029879 Pivot Pin
3 530015915 Pin--Link
4 53001591 1 Screw
5 530054741 Front Link Ass’y.
6 530016237 Chain Brake Spring
7 530038593 Retainer
8 530016384 Screw
9 530056531 Journal--Right
10 530029881 Journal--Left
1 1 530015910 Handguard Spring
12 530015913 Pin--Spring
13 530052232 Brake Band
14 530054802 Chain Brake Assembly
15 530029878 Position Spring
16 530049483 Clutch Cover
17 530015917 Nut--Bar
18 530015826 Bar Adjusting Pin
19 530038593 Retainer
20 5300161 10 Screw--Bar Adjusting
21 530053035 Chain Brake Spring Cover
22 53001591 1 Screw
23 530016154 Screw
24 530047609 Cylinder Shield Ass’y.
25 952030150 Spark Plug (RCJ--7Y)
26 ------ Kit--Cylinder (incl.#34)
(136)
(141)
Description
27 530037652 Heat Insulator
28 530037640 Muffler--Plate
29 530019205 Muffler Gasket
30 -- Piston Kit (Includes pin and 31,32,33)
530069944 (136)
530069454 (141)
31 -- Piston Ring
530029805 (136)
530029982 (141)
32 530032117 Piston Pin Bearing
33 530015697 Piston Pin Retainer
34 Ca p--Crankcase
35 530015897 Screw
-- Operator Manual
530163874 U.S./Canada/Mexico
530163872 European I
530163873 European II
530163871 Scan.
530164305 Japan
530031 135 Scrench
530031 136 W orm Gear Puller
530031 112 Clutch Ass’y. Tool
530047941 Kickback Decal
530037912 Scabbard
Part No. Ref. Part No. DescriptionRef.
Not Shown
=
NEW PART NUMBER FOR THIS IPLn
=
REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL)
D
K
=
THESE PARTS ARE ILLUSTRATED FOR CLARITY. ORDER COMPLETE ASSEMBLY.
n
KKKKK
