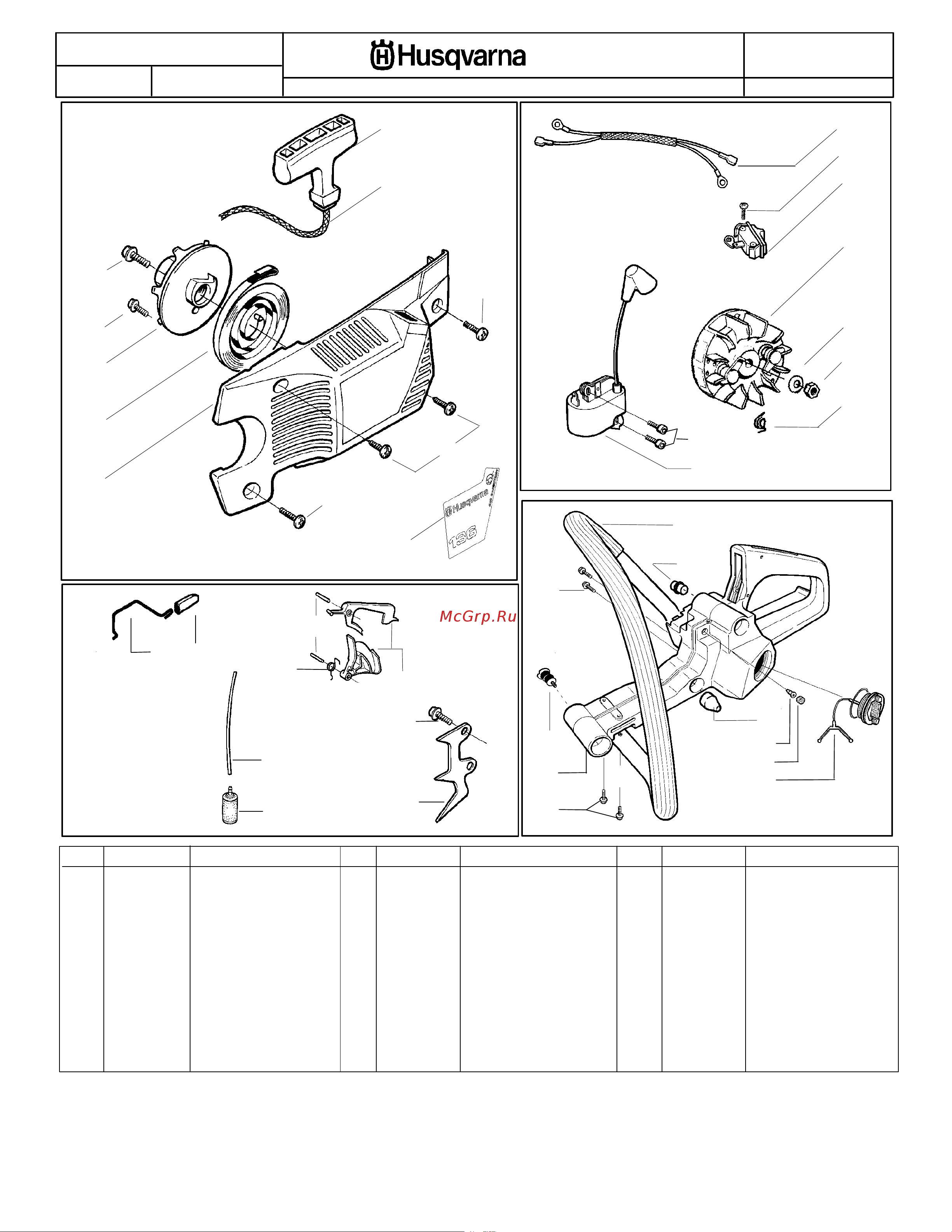

Husqvarna 141 (2004) parts [5/7] Parts list
![Husqvarna 141 (2004) parts [5/7] Parts list](/views2/2002551/page5/bg5.png)
R
POULAN PRO PARTS LIST
PARAMOUNT PARTS LIST
R
WEED EATER PARTS LIST
R
R
PARTS LIST
REPLACES
4
Note: Illustration may differ from actual model due to design changes
PARTS LIST NO.
PAGE NO.
MODEL(s)
106--232761
136 & 141
DAT E
12/10/03
106--232761--6/11/03
r
5
3
1
2
7
8
6
4
10
9
9
11
13
18
19
15
14
16
17
12
24
25
27
28
22
21
23
20
36
37
32
33
31
38
34
35
30
29
1 530038491 Starter Handle
2 530069232 Rope Kit
3 530015920 Screw
4 530016080 Screw
5 530069313 Starter--Pulley Kit
6 530015891 Recoil Spring
7 530047599 Fan Housing Assembly
8 530015892 Screw
9 530015893 Screw
10 ------ Decal --Model
530053459 136
530053460 141
1 1 530403257 Leadwire Harness Ass’y.
12 530015896 Screw
13 503717901 Ignition Switch
14 530039147 Assy. Flywheel (incl.16)
15 530015127 Flywheel Washer
16 530016071 Nut
17 530023817 Spring --Starter Dog
18 530015895 Screw
19 530039143 Module -- Ignition
20 530029869 Wire -- Throttle
21 530029863 Cap -- Wire
22 530029860 Pin
23 530029861 Spring
24 530069247 Kit -- Fuel line
Ref. Part No. Description
Ref. Part No.
Description
=
NEW PART NUMBER FOR THIS IPLn
=
REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL)
D
K
=
THESE PARTS ARE ILLUSTRATED FOR CLARITY. ORDER COMPLETE ASSEMBLY.
25 530014497 Assy. Fuel Pickup
26 530069587 Kit -- Throttle Trigger
27 530015805 Screw
28 530014381 Assy. Spike
29 530015940 Screw
30 530029870 Isolator
31 530052446 Assy. --Tank/Handle
32 530015843 Screw
33 530049876 Handle--Front
34 530052439 Isolator -- Limiter
35 530029984 Isolator Bumper
36 5300261 19 V alve -- Check
37 530038264 Plug -- V ent
38 530071266 Kit--Fuel Cap--Assy
Ref. Part No. Description
