Husqvarna 141 (2004) parts [4/7] Parts list
![Husqvarna 141 (2004) parts [4/7] Parts list](/views2/2002551/page4/bg4.png)
R
POULAN PRO PARTS LIST
PARAMOUNT PARTS LIST
R
WEED EATER PARTS LIST
R
R

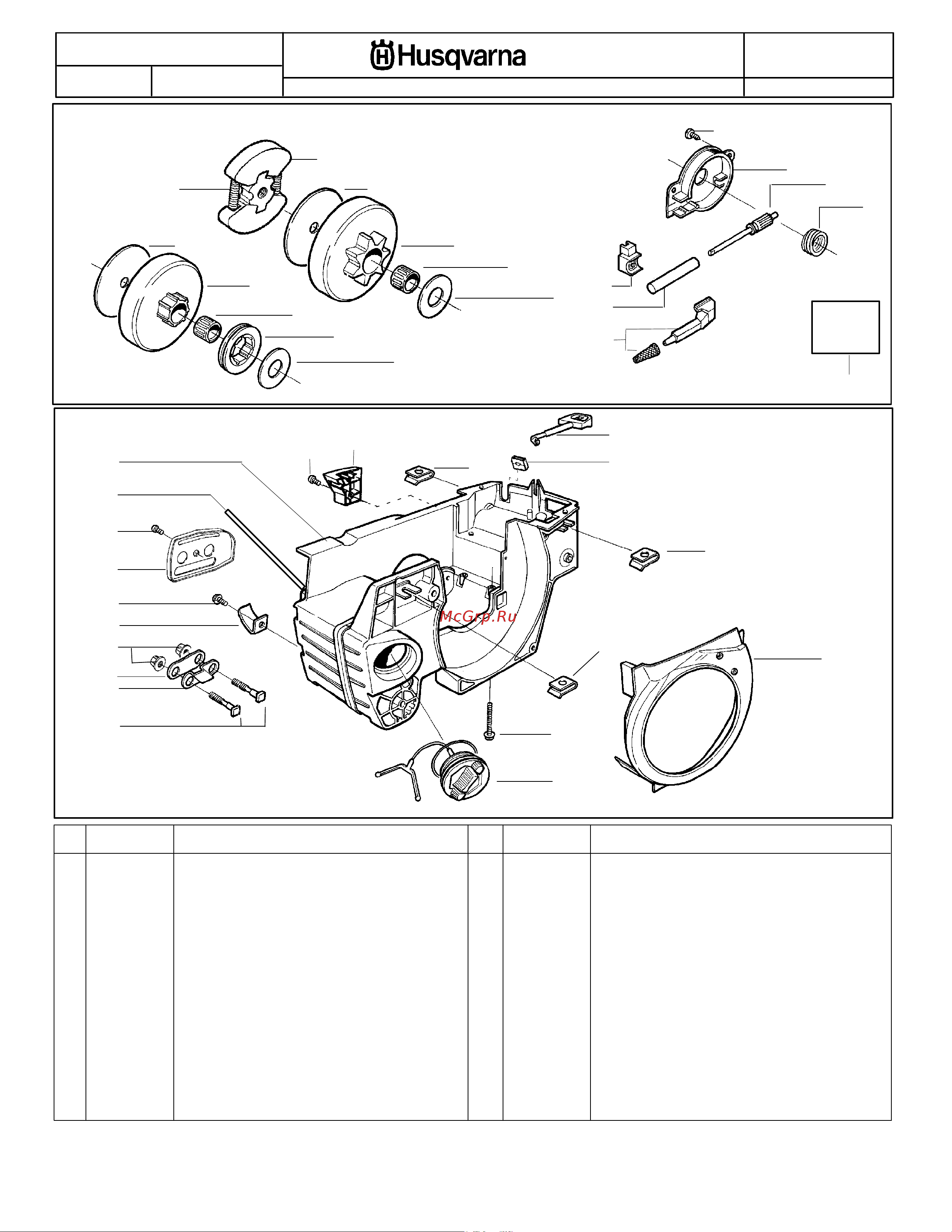

PARTS LIST
REPLACES
3
Note: Illustration may differ from actual model due to design changes
PARTS LIST NO.
PAGE NO.
MODEL(s)
106--232761
136 & 141
DAT E
12/10/03
106--232761--6/11/03
r
1
2
4
6
8
16
14
12
15
13
9
10
Oil Pu mp
A’ssy.
11
3
5
6
7
8
3
17
19
20
29
31
32
33
34
24
25
23
22
21
18
31
31
28
27
30
26
1 530014949 Clutch Assembly (incl. 2)
2 530094188 Spring -- Clutch
3 53001561 1 Clutch Washer
4 530047061 Clutch Drum w/Bearing Ass’y.
5 530069316 Drum, Adapt. & Bearing Kit (incl. 6 & 7)
6 5300321 19 Clutch Bearing
7 530028650 Rim--Floating (.325)
8 530015907 Thrust Washer
9 530015896 Screw
10 530029835 Oil Pump Housing
1 1 530029838 Plunger & Gear Assembly
12 530029833 Oil Pump W orm
13 530019174 Oil Seal
14 530029834 Oil Pump Barrel
15 530014776 Oil Pick--Up and Screen Assembly
16 530014410 Oil Pump Assembly (Includes 10,1 1 & 14)
17 530069942 Kit -- Chassis Ass’y.
Description
18 530052440 Tube--Oil Vent
19 530015896 Screw (optional)
20 530047855 Bar Plate
21 530015878 Screw
22 530029850 Chain Catcher
23 530015917 Nut
24 530019228 Gasket
25 530036043 Bar Stud Plate
26 530015877 Bar Bolt
27 530015893 Screw
28 530052428 Cover
29 530029831 Choke Lever
30 530029830 Grommet
31 530015922 T ype ”U” Speed Nut
32 530029800 Baffle Plate
33 530016037 Screw
34 501765602 Assy.-- Oil Tank Cap
Part No. Ref. Part No. DescriptionRef.
=
NEW PART NUMBER FOR THIS IPLn
=
REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL)
D
K
=
THESE PARTS ARE ILLUSTRATED FOR CLARITY. ORDER COMPLETE ASSEMBLY.
3/8"
4 530069342 Clutch Drum w/Bearing Ass’y. .325"
