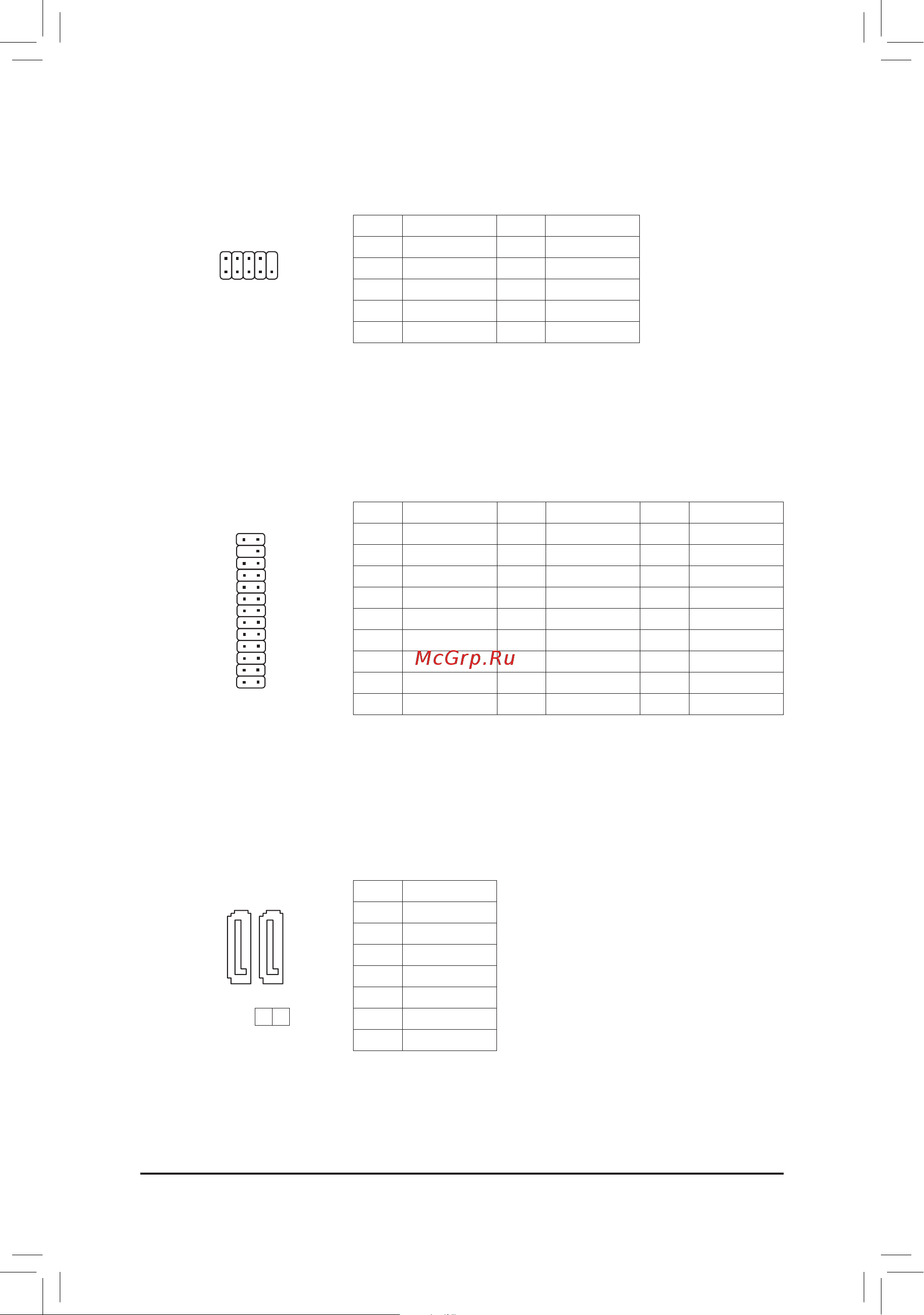

Gigabyte CELERON J1800 MITX GA-J1800N-D2H V1.3 [13/32] Com serial port header

- 13 -

Pin No. Denition

1 GND

2 TXP

3 TXN

4 GND

5 RXN

6 RXP

7 GND

Pin No. Denition Pin No. Denition

1 NDCD- 6 NDSR-

2 NSIN 7 NRTS-

3 NSOUT 8 NCTS-

4 NDTR- 9 NRI-

5 GND 10 No Pin

6) LPT (Parallel Port Header)

The LPT header can provide one parallel port via an optional LPT port cable. For purchasing the optional

LPT port cable, please contact the local dealer.

Pin No. Denition Pin No. Denition Pin No. Denition

7 PD2 16 GND 25 SLCT

8 SLIN- 17 PD7 26 GND

9 PD3 18 GND

SATA2

0 1

1

77

1

26

25
