LPAU Installation Instructions
10
8. Route cables down column channel, tucking them behind
height-adjustment carriage and underneath bracket holding
height-adjustment shaft. (See Figure 14)
9. Wrap cables around cable hooks as desired. (See Figure
14)
10. Snap back cover (G) onto back of column assembly making
sure cables fit through opening at bottom of cover. (See
Figure 14)

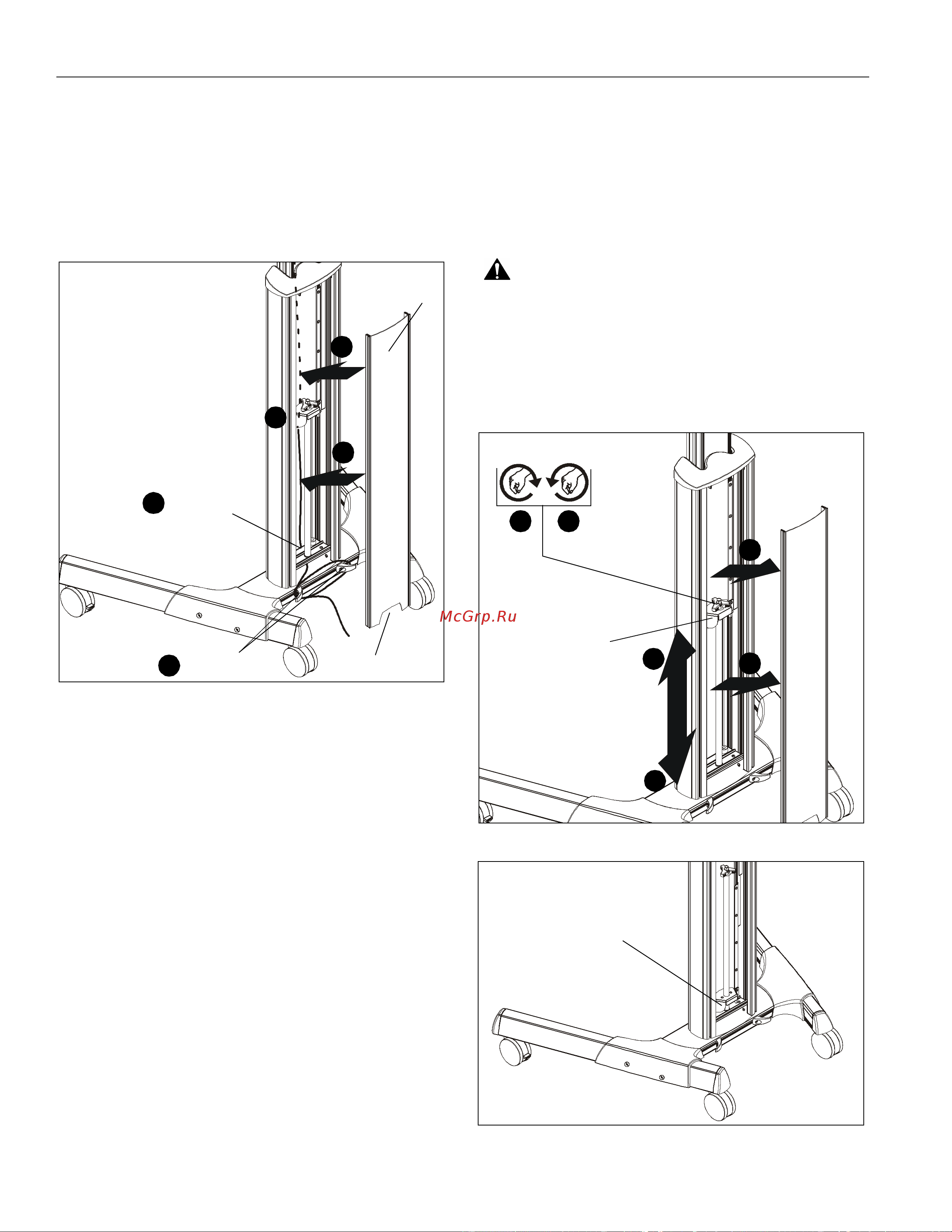

Figure 14

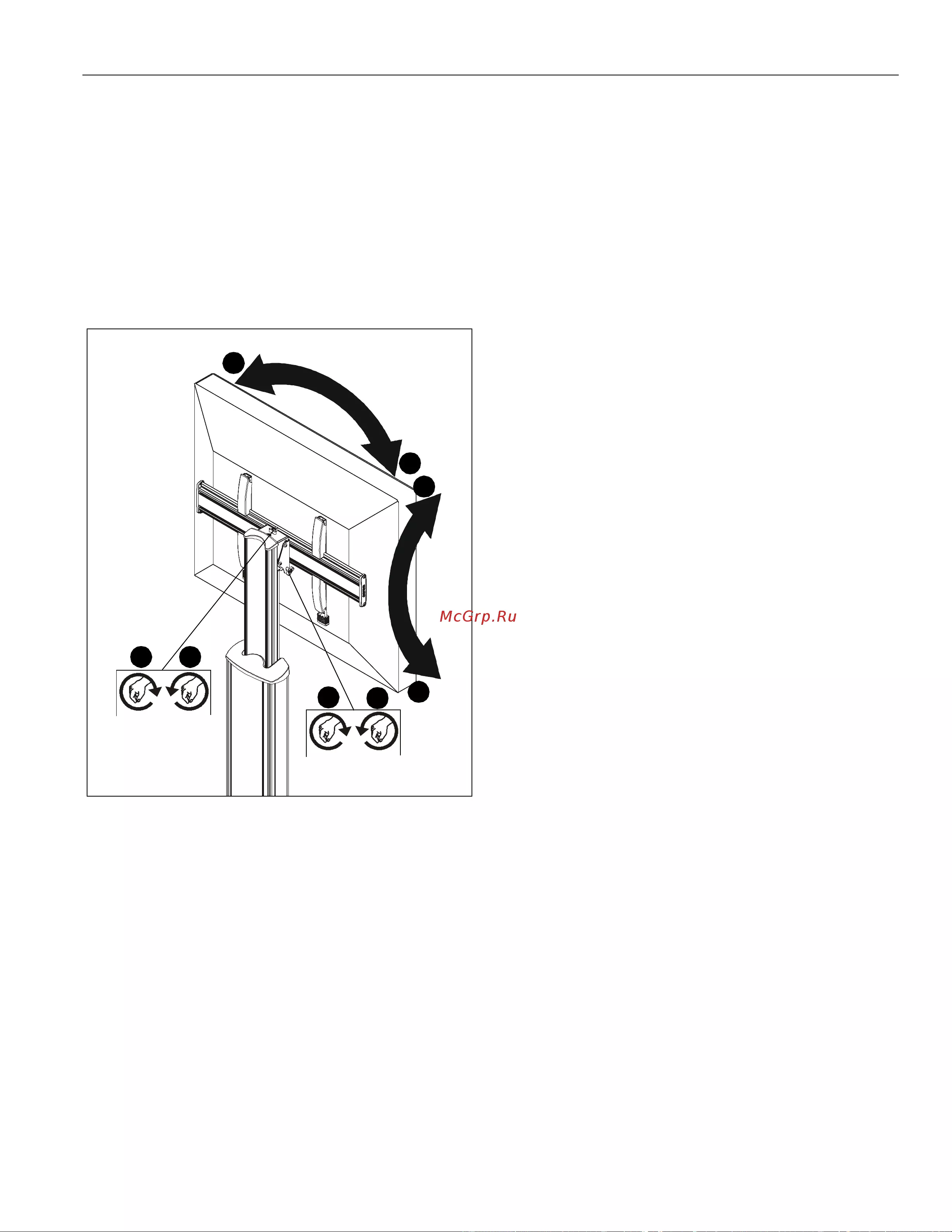

Adjustments
Height Adjustment
1. Remove cable cover (G) to expose height adjustment knob.
2. Turn height adjustment knob clockwise to raise display.
(See Figure 15)
3. Turn height adjustment knob counterclockwise to lower
display. (See Figure 15)
WARNING: Do not attempt to raise or lower the adjustment
carriage beyond its upper or lower limit. High and low points
are shown in Figures 15 and 16.
NOTE: A 1/2" socket wrench may also be used to adjust height
by turning bolt just above height adjustment knob.
4. Reinstall cable cover (G) to column assembly.
Figure 15
Figure 16
(G)
cable opening
9
8
10
cable hooks
10
(rear view)
8
under bracket
1
1
2
2
high point
3
3
height adjustment knob
low point
