Installation Instructions LPAU
7
Display Installation
WARNING: Exceeding the weight capacity can result in
serious personal injury or damage to equipment! It is the
installer’s responsibility to make sure the combined weight of
all components located between the LPAU up to (and
including) the display does not exceed 200 lbs (90.7 kg).
1. Lay display face down on protective surface.
CAUTION: Using screws of improper diameter may
damage your display! Proper screws will easily thread into
display mounting holes.
2. Select screw diameter by examining hardware (TA-TK)
(4mm, 5mm, 6mm or 8mm) and comparing with mounting
holes on display. (See Figure 5)
3. Select spacers: (See Figure 5)
• If mounting holes are not recessed and both
uprights (B) can lay flat against display, then no
spacers are required.
• If mounting holes are recessed, or if protrusions
prevent uprights (B) from laying flat, then spacers
(TL or TM) must be used.
CAUTION: Using screws of improper length may damage
your display! Proper screws will have adequate thread
engagement without contacting bottom of display mounting
holes.
4. Select screw length: (See Figure 5)
• Using your hand, insert SHORTEST length screw
of selected diameter (TA, TD, TG or TI) through
universal washer (TN), uprights (B), selected
spacer (TL or TM), into display mounting hole. Do
NOT thread screw into hole at this time.
NOTE: Universal washers (TN) are not needed if using M8
button head cap screws (TI, TJ or TK).
• Proper screw length requires base of screw head
to protrude above flat washer a distance equal to
or greater than the screw diameter. If screw
length is inadequate, select longer screw. Select
shortest screw which will protrude the required
distance.
5. Place uprights (B) on display, ensuring: (See Figure 5)
• Center of uprights (B) are as close to the center
of the back of display as possible after being
installed. Center of bracket is indicated by the
diamond-shaped hole.
6. Use selected screws and spacers to install two interface
uprights (B) to back of display. (See Figure 5)

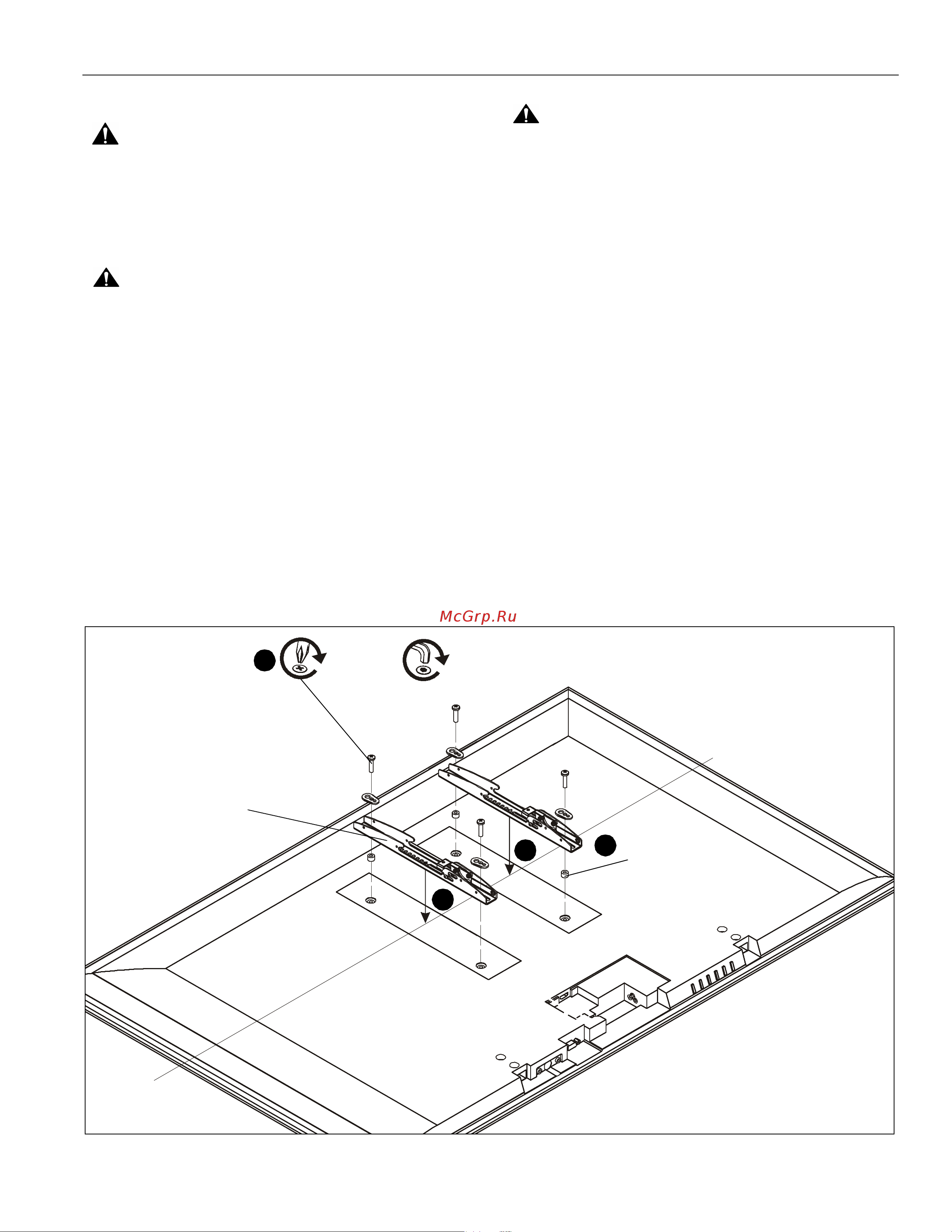

Figure 5
(TA-TH) or
(TI-TK) x 4, 6 or 8
(B) x 2
6
3
(TL or TM)
5
5
