Installation Instructions LPAU
5

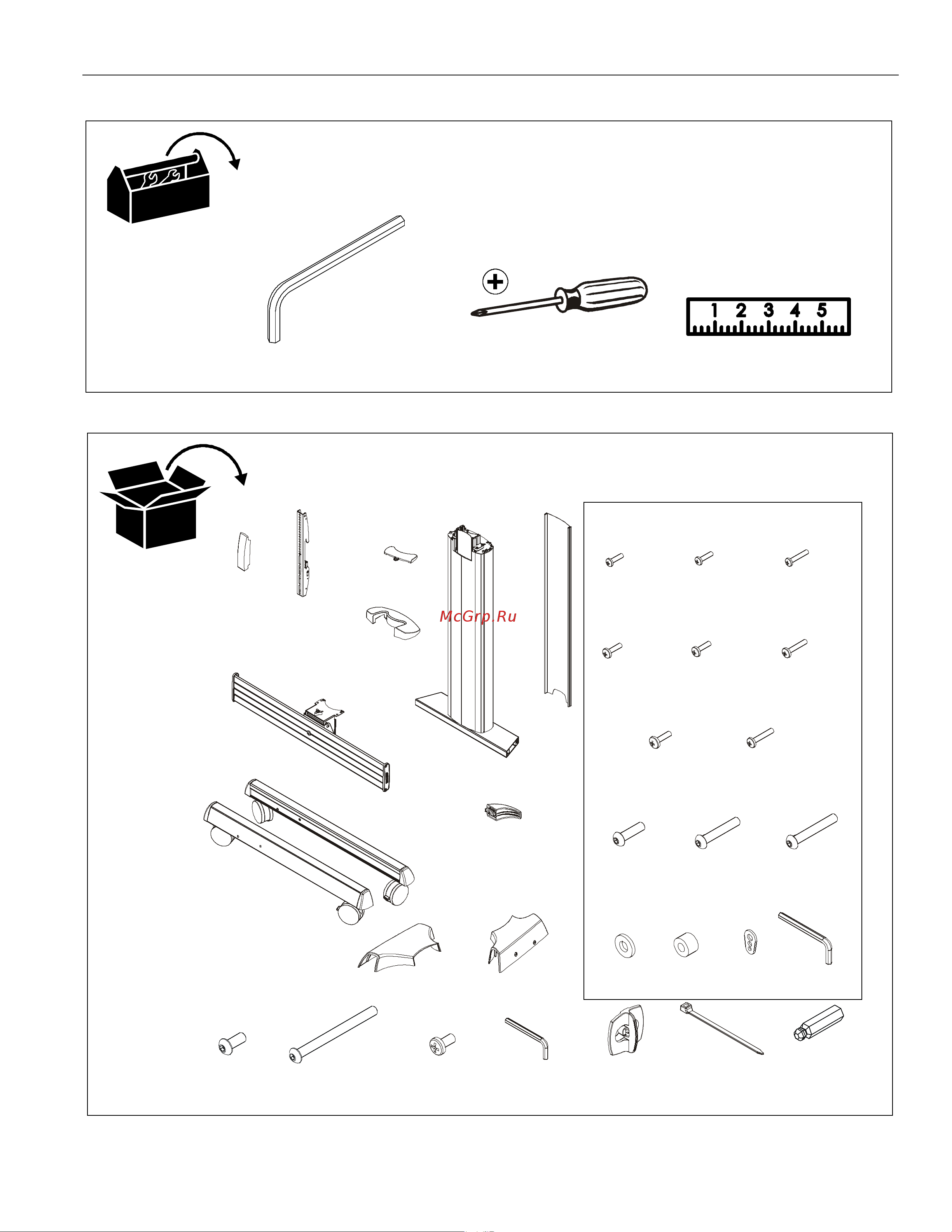

TOOLS REQUIRED FOR INSTALLATION
PARTS
#2
M5 (included)
3/16" (included)
B (2)
[interface upright]
C (1)
[column upper
E (1)
[interface head assembly]
F (1)
[column assembly]
H (1)
[left cart leg]
J (1)
[right cart leg]
L (1)
[left transition cover]
M (1)
[right transition cover]
N (5)
5/16-18 x 3/4"
P (4)
5/16-18 x 3 3/4"
A (4)
[upright cover]
D (1)
[column inner
cover]
cover]
G (1)
[back cover]
K (2)
[cable hook]
Q (2)
1/4-20 x 1/2"
TA (8)
M4x16mm
TB (6)
M4x20mm
TC (6)
M4x25mm
TD (6)
M5x16mm
TE (6)
M5x20mm
TF (6)
M5x25mm
TG (6)
M6x16mm
T (1)
[hardware bag]
TH (6)
M6x25mm
TI (6)
M8x20mm
TJ (6)
M8x30mm
TK (4)
M8x50mm
TL (8)
1/4"
TM (8)
1/2"
TN (8)
[universal]
TP (1)
M5
R (1)
3/16"
U (10)
[FCA clip]
V (10)
[cable tie]
W (1)
3/16"
