Nec Mobile Single Trolley PDMHM-L [9/12] Cable management

Installation Instructions LPAU

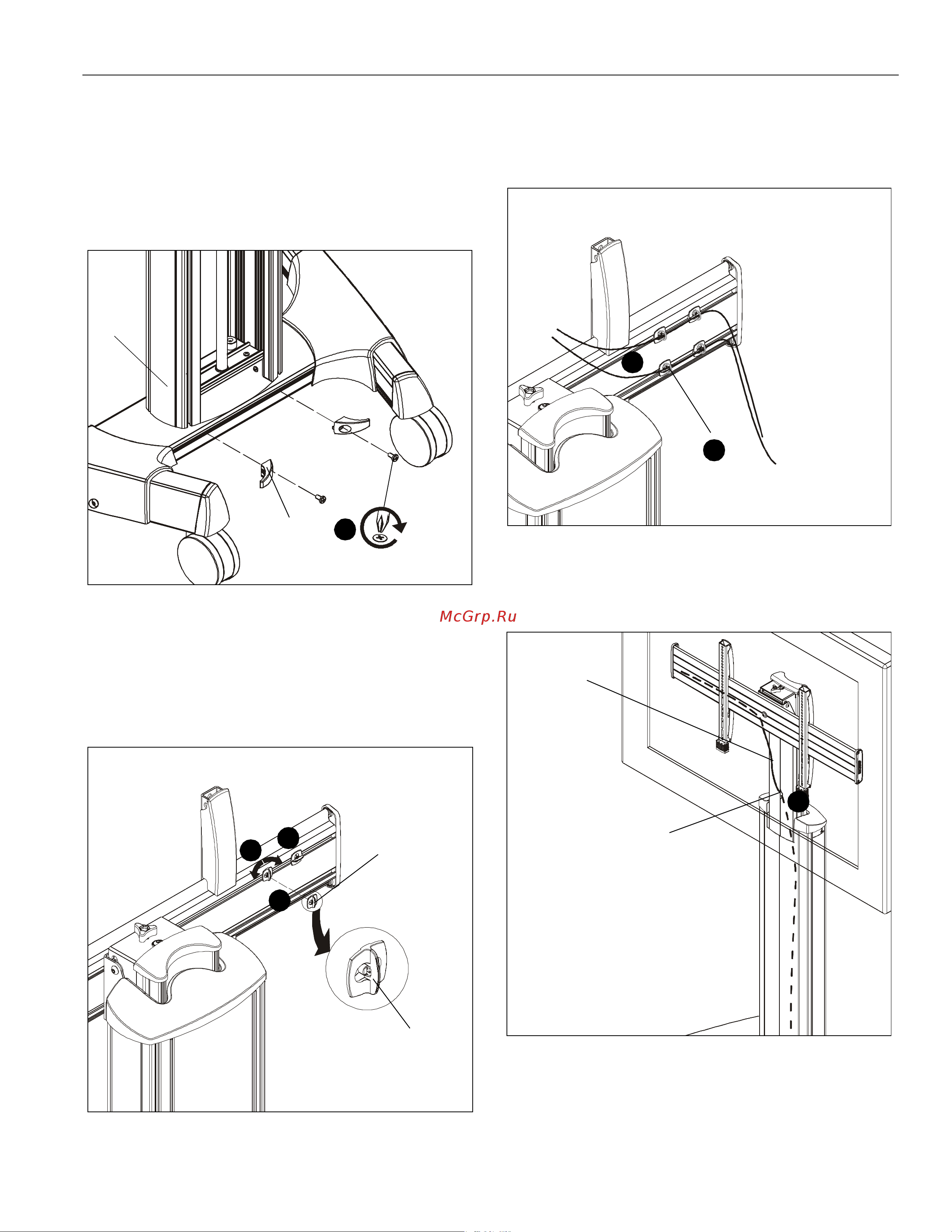

Cable Management

NOTE: The following cable management options may vary

based on type of display being mounted and user

preference.

1. Use two 1/4-20 x 1/2" Phillips pan machine screws (Q) to

attach two cable hooks (K) to bottom of column assembly

(F). (See Figure 10)

Figure 10

2. Place FCA clip (U) into groove on back of Fusion mount with

clip handle in a vertical position. (See Figure 11)

3. Rotate FCA clip (U) 90° in either direction until clip handle is

in a horizontal position. (See Figure 11)

4. Repeat Steps 1-2 for all clips to be installed.

Figure 11

5. Route cables along FCA clips to be used for cable

management. (See Figure 12)

6. Use cable ties (V) to secure cables to FCA clips. (See

Figure 12)

Figure 12

7. Route cables from display through front channel of column

assembly. (See Figure 13)

Figure 13

(K) x 2

(Q) x 2

(F)

clip handle

(U)

(V)

cable (example)

front channel
