Aqua Mini Full DC Inverter Unitary Chiller 50Hz
64
Press
twice
RUN
WATER
TEMP.
TIMER
(Press for 3sec to
cancel timer)
(Press for 3sec to
unlock)
MODE
FUNCTIONS
ON

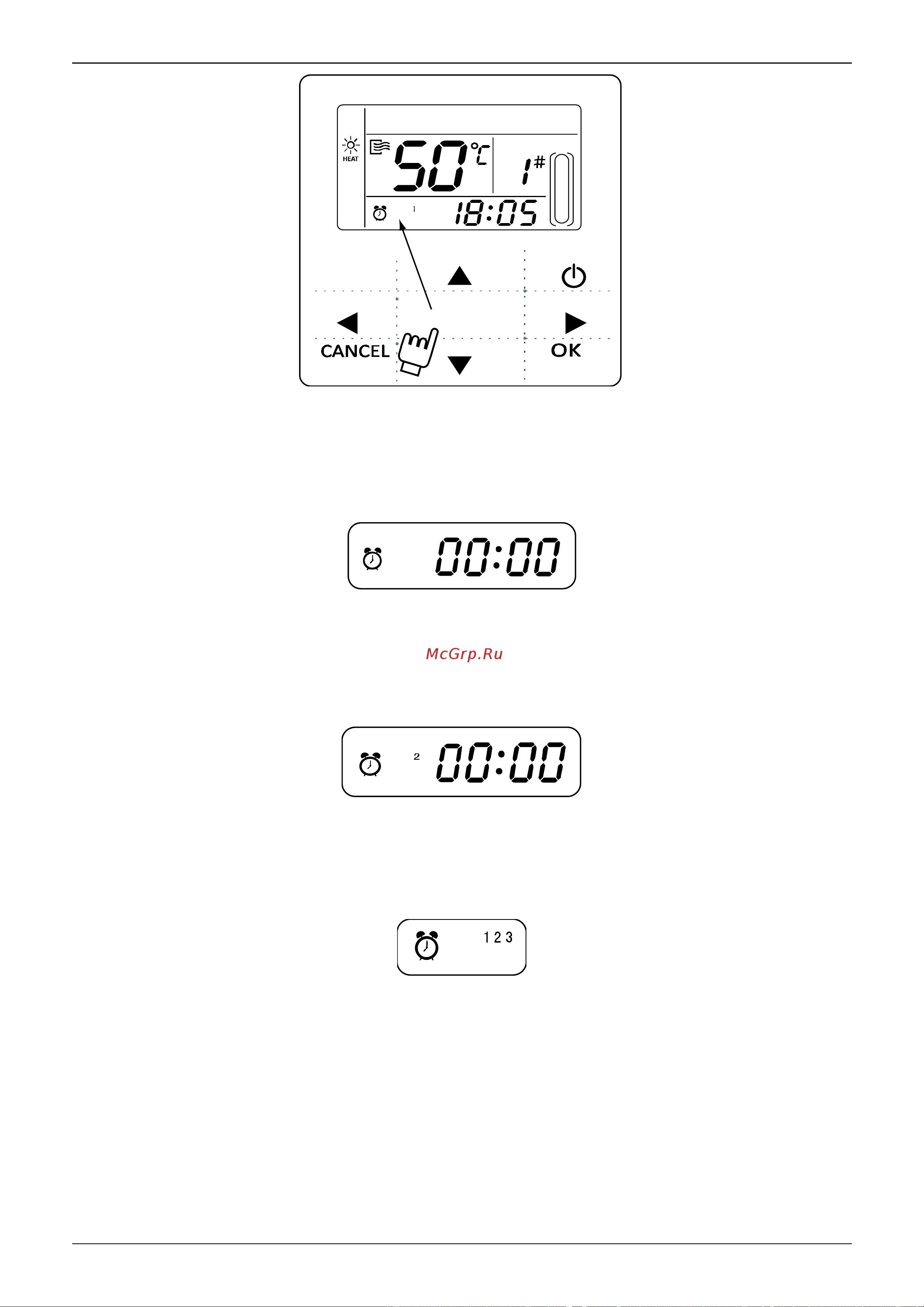

At this time the hour of the clock will flash, which
means the current setting is the hour of Timer 1 “On”,
press the “▲” or “▼” to adjust, press “
▲
” key when finished, and then the minute of the clock will
flash, which means the current setting is the minute of Timer 1 “On”, press the “▲” or “ ▼ ” to adjust,
press “
▲
” key when finished, the LCD will display as the following:
1
TIMER
OFF
At this time
the hour of the clock will flash, which means the current setting is the hour of Timer 1 “Off”,
press the “▲” or “▼” to adjust, press “
▲
” key when finished, and then the minute of the clock will
flash, which means the current setting is the minute of Timing 1 “Off”, press the “▲” or “▼” to adjust,
press “
▲
” key when finished, the LCD will display as the following:
TIMER
ON
At this time the hour of the clock will flash, it means the current setting is the
hour of the Timer 2 “On”.
And the follow setting method will be the same as the Timer 1. Similarly, the setting of Timing 3 is the
same as this method. After setting is finished, press “OK” key or wait for 7 seconds to confirm the setting,
and the LCD will display the effective timing information, as the following display:
TIMER
