Aqua Mini Full DC Inverter Unitary Chiller 50Hz
66

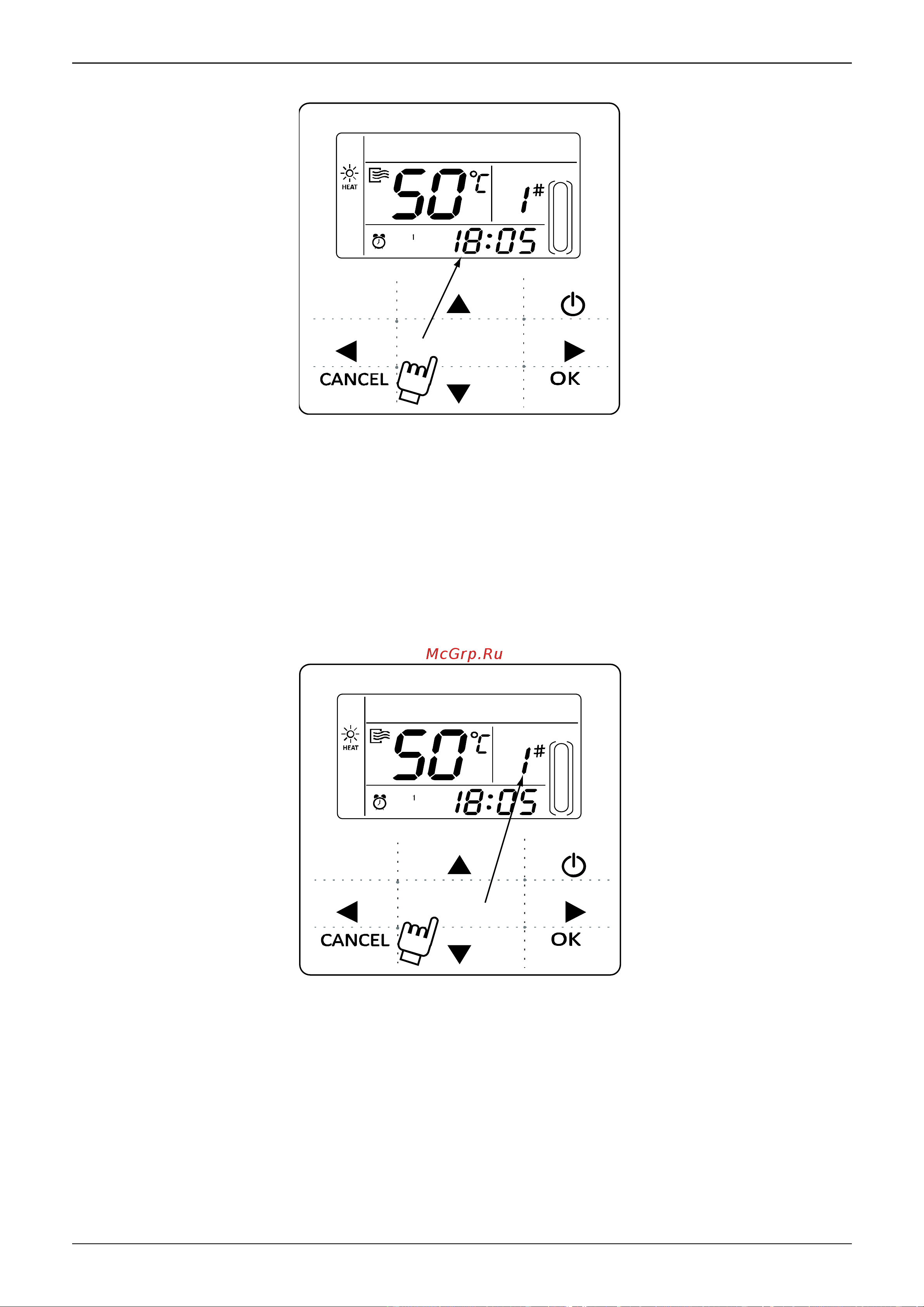

d. Setting clock
Press 3
times
RUN
WATER
TEMP.
TIMER
(Press for 3sec to
cancel timer)
(Press for 3sec to
unlock)
MODE
FUNCTIONS
ON
Press the “FUNCTION” key 3 times to enter clock setting. The hour of the clock will
flash, which means
the current setting is the hour of the clock, press the “▲” or “▼” to adjust, press “
▲
” key when
finished, and then the minute of the clock will flash, it means the current setting is the minute of the clock,
press the “▲” or “▼” to adjust, press “ OK ” key when finished or wait for 7 seconds to confirm.
During the setting process pressing the “CANCEL” key to exit without saving.
NOTE: To get the correct timing On and timing Off time, please correctly set the clock!
e. Setting unit number
Press 4
times
RUN
WATER
TEMP.
TIMER
(Press for 3sec to
cancel timer)
(Press for 3sec to
unlock)
MODE
FUNCTIONS
ON
Press the “FUNCTIONS” key 4 times to enter the unit number setting. Pre
ss “▲” or “▼” to adjust
the unit number. press “ OK ”key when finished or wait for 7 seconds to confirm. During the setting
process pressing the “CANCEL” key to exit without saving. The setting value is 0-18.
