Roland Aerophone AE-10 [2/22] Panel descriptions
![Roland Aerophone AE-10 [2/22] Panel descriptions](/views2/2007986/page2/bg2.png)
2

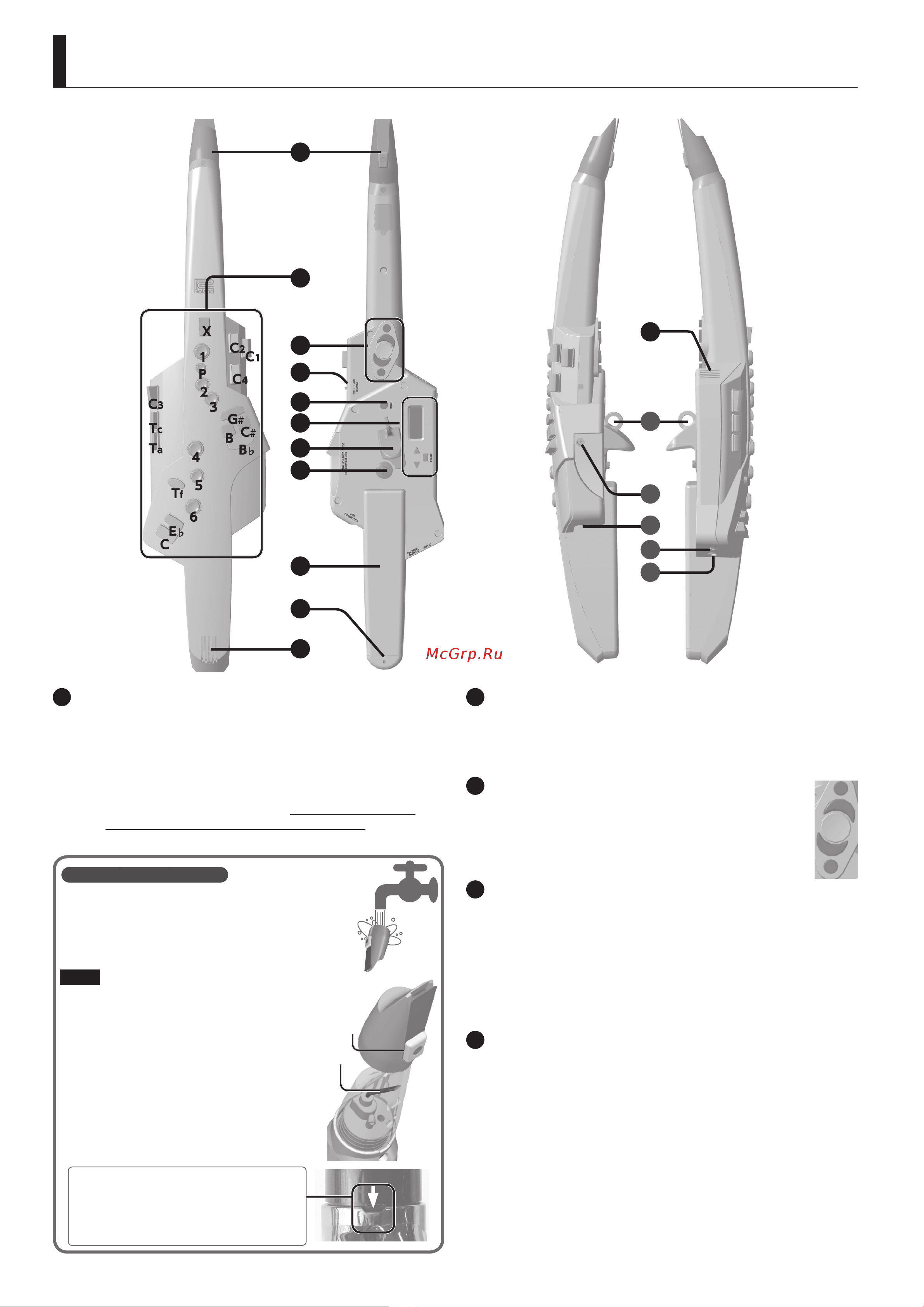

Panel Descriptions
1
Mouthpiece
This is the Aerophone’s dedicated mouthpiece.
&
For details, refer to “Embouchure” (p. 4).
5 When you’re not playing, protect this with the included
mouthpiece cap.
5 The mouthpiece sensitivity is automatically adjusted when
the power turns on. For this reason, don’t bite or touch the
mouthpiece while turning on the power switch.
2
Performance keys
These keys are used for performance. They allow performance using
the same ngering as a saxophone (p. 4).
&
For details, refer to “Fingering Chart” at the end of this manual.
3
Octave keys
Switch the octave. Operate them using the left-hand
thumb.
* The octave keys can be assigned to +1 / ±2 / ±3 octaves
(p. 8).
4
[POWER] switch
This turns the power on/o.
* The power to this unit will be turned o automatically after
a predetermined amount of time has passed since it was last
used for playing music, or its buttons or controls were operated
(Auto O function).
If you do not want the power to be turned o automatically,
disengage the Auto O function (p. 9).
5
[TONE] (tone selection) button
Accesses the tone (sound) select screen.
You can use this button in conjunction with the performance keys to
instantly recall user tones.
&
“Instantly Recalling a User Tone” (p. 5)
+2
+1
-1
-2
Maintaining the mouthpiece
The maintenance needed for a conventional
saxophone is not necessary. If the mouthpiece
becomes soiled from playing, remove the mouthpiece,
wash it with water, and use a soft cloth to dry o any
water droplets.
NOTE
5 When removing or attaching the mouthpiece, take
care not to bend the bite bar.
5 Take care not to hurt your hand on the screw that’s
inside the mouthpiece.
5 When attaching the mouthpiece, take care not to
pinch your nger between the movable part and
the body of the instrument. Applying commercially
available recorder cream makes attachment and
removal easier.
5 If the mouthpiece needs to be replaced due to age or
any other reason, you may purchase the separately
sold OP-AE10MP or OP-AE10MPH (Hard type).
Bite
bar
Screw
As shown in the illustration, insert the mouthpiece all the
way until the concave and convex portions align.
* If the mouthpiece is not inserted all the way, it will not
be possible to raise or lower the pitch (to apply vibrato)
by varying your bite strength on the reed.
1
A
2
5
3
4
6
7
8
9
11
B
C
E
D
10
11
