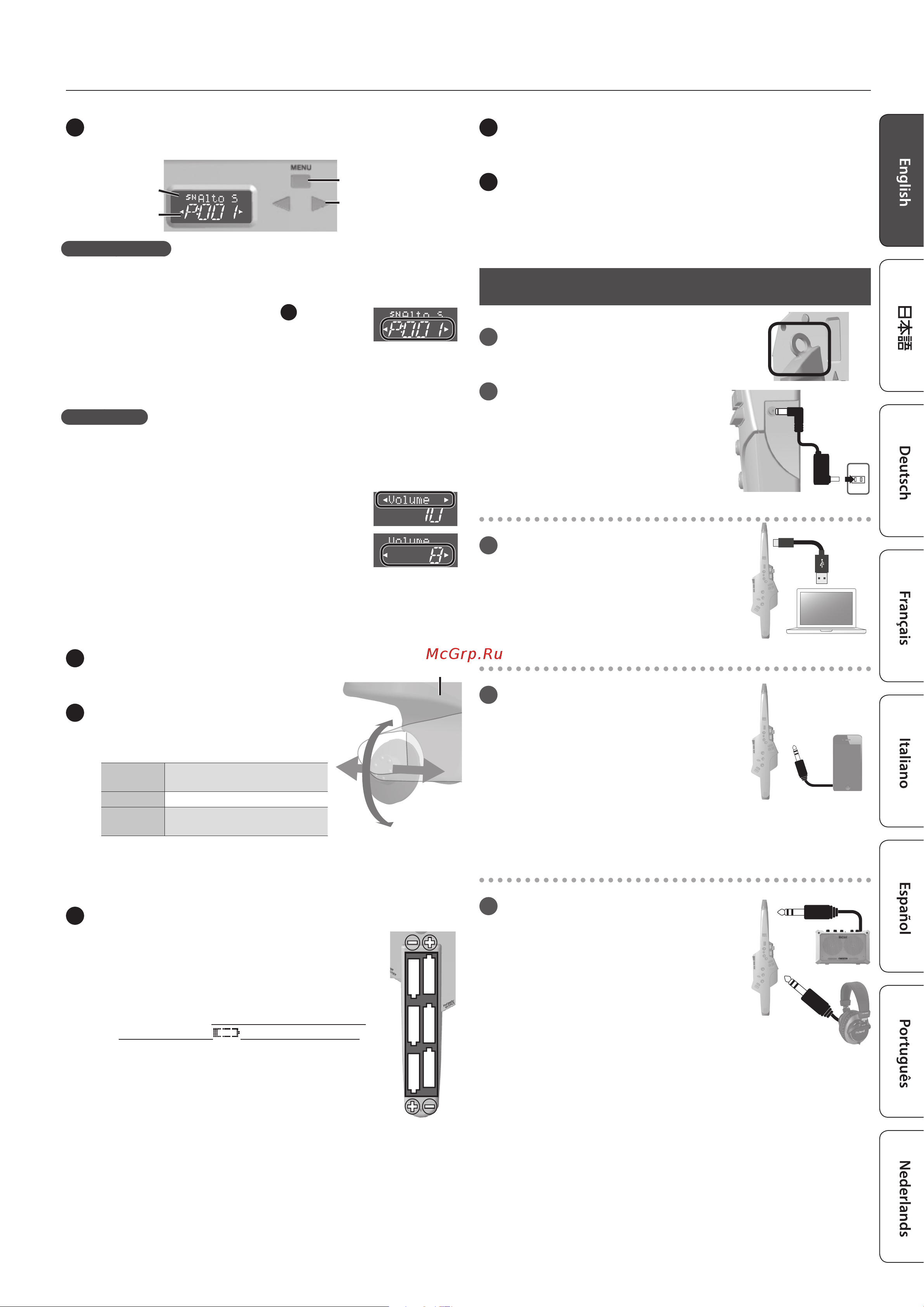

3
Panel Descriptions
6
Display section
Displays the tone name and menu.
Tone name/
Menu item
Tone number/
Value
[MENU] button
[
C
] [
A
] buttons
Selecting the tone
On the Aerophone, each of the various sounds that you can select is
called a “tone.”
1. Hold down the [TONE] button
5
and then
press the [
C
] [
A
] buttons to select the tone
number.
You can select tones from Preset tones (P:001–) and User tones
(U:001–). When you turn on the power, the last-selected tone is
selected.
Edit the menu
Pressing the [MENU] button, you can make various settings.
1. Press the [MENU] button to display the menu screen.
2. Use the [
C
] [
A
] buttons to select the menu
item, and then press the [MENU] button.
3. Use the [
C
] [
A
] buttons to change the
value.
4. To return to the tone selection screen, press the [TONE]
button.
&
For details, refer to “Menu Settings” (p. 6).
7
Thumb hook
Place your right thumb here.
8
Thumb controller
Use your right thumb to operate this
controller.
Bend up/
Down
Bends the pitch up/down.
Portamento Makes the pitch change smoothly.
Growl
Applies a saxophone’s growl
technique.
* With the factory settings, these are the functions when a
saxophone tone is selected. The operation diers depending on
the tone that you select.
9
Battery case
The Aerophone can operate on batteries or on the
included AC adaptor. If you are using batteries, insert
six rechargeable Ni-MH batteries (AA, HR6), making
sure that the batteries are oriented correctly.
* The battery life is approximately 7 hours for typical
performance use. When the batteries run low,
the Battery icon (
) blinks in the display.
Replace the battery as soon as possible.
* If you handle batteries improperly, you risk
explosion and uid leakage. Make sure that
you carefully observe all of the items related
to batteries that are listed in “USING THE UNIT
SAFELY” and “IMPORTANT NOTES” (leaet “USING
THE UNIT SAFELY” and the Owner’s Manual (p. 12)).
* When turning the unit over, be careful so as to protect the
buttons and knobs from damage. Also, handle the unit carefully;
do not drop it.
10
Water drain
Drops of water will exit here. Wipe them o with a soft cloth.
11
Built-in speakers
You mainly adjust the volume by the force of your breath while
playing, but you can also adjust the volume in the menu (p. 7).
Connecting Your Equipment
A
Strap ring
Attach a neck strap here.
B
DC IN jack
Connect the included AC adaptor here.
Connecting your computer
C
USB COMPUTER port
Use a commercially available USB 2.0 cable
to connect this port to your computer. It
can be used to transfer USB MIDI data.
Connecting your audio player
D
INPUT jack
Connect your audio player. Sound from
the connected device comes out of
the Aerophone’s built-in speaker and
PHONES/OUTPUT jack.
This lets you play along with your favorite
songs.
Use the controls of the connected device (audio player) to adjust the
volume.
Connecting your monitor speakers or headphones
E
PHONES/OUTPUT jack
Connect this jack to your monitor speakers
or headphones.
If you connect headphones or a cable to
this jack, sound is not output from the built-
in speakers, but you can change a menu
setting so that sound is output even in this
case (p. 8).
* After you’ve made connections to
devices such as speakers, be sure to turn on the power in the
order of the Aerophone rst, and then the connected system.
Powering-on in the incorrect order may cause malfunctions or
damage. When turning the power o, power-o the connected
system rst, and then the Aerophone.
Bend up
Thumb hook
Portamento
Growl
Bend down
or
