19. Configuring the HDSP 9652
19.1 Settings Dialog

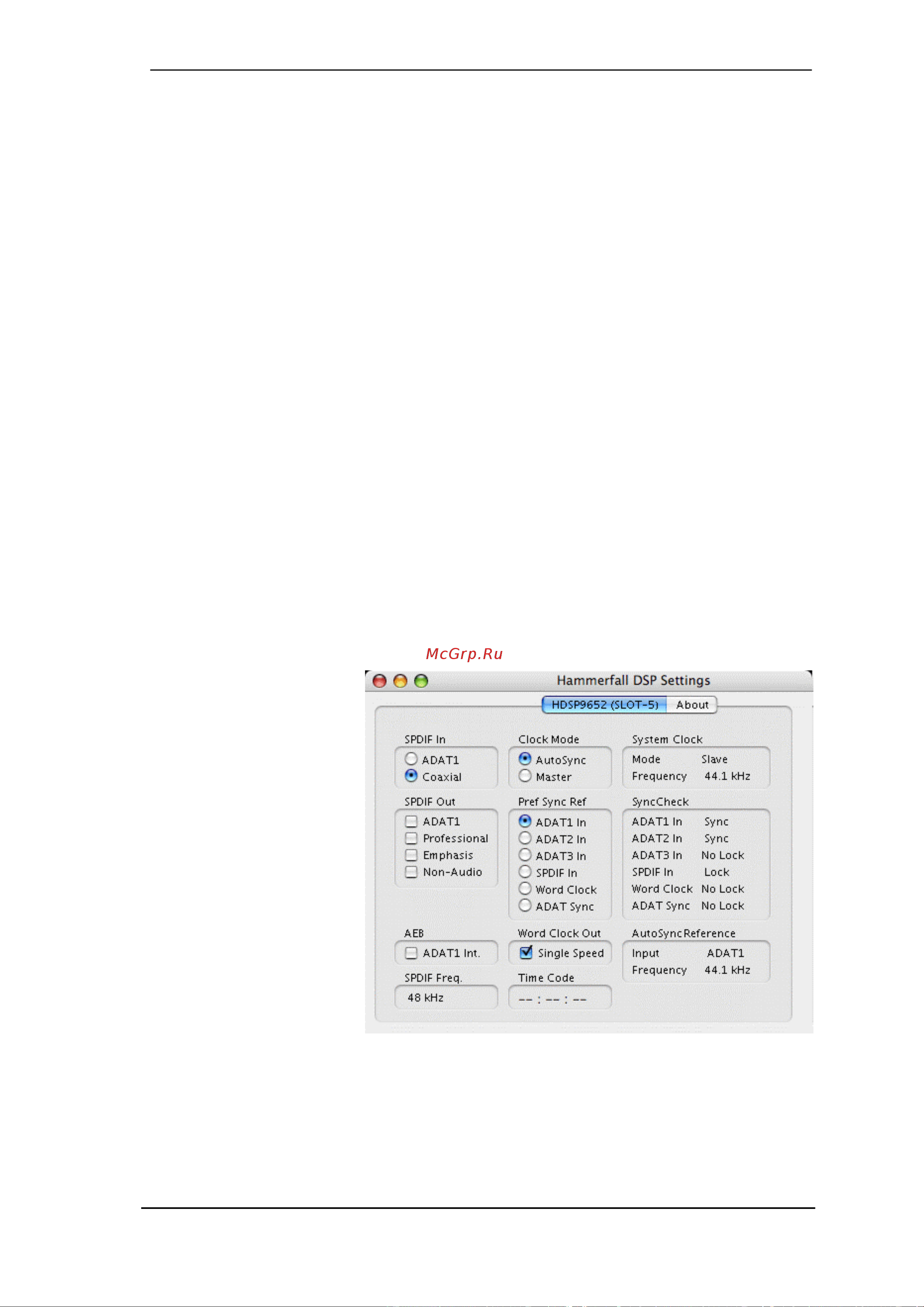

Configuring the HDSP 9652 is done via its own settings dialog. The panel 'Settings' can be
opened by clicking on the hammer icon in the dock. The mixer of the Hammerfall DSP System,
TotalMix, can be opened by clicking on the mixer icon in the dock.
The Hammerfall DSP’s hardware offers a number of helpful, well thought-of practical functions
and options which affect how the card operates - it can be configured to suit many different
requirements. The following is available in the 'Settings' dialog:
• Input selection
• Output mode
• Output channel status
• Synchronization behaviour
• Input and output status display
Any changes performed in the Settings dialog are applied immediately - confirmation (e.g. by
exiting the dialog) is not required. However, settings should not be changed during playback or
record if it can be avoided, as this can cause unwanted noises.
The status displays at the bottom of the dialog box give the user precise information about the
current status of the system, and the status of all digital signals. SyncCheck indicates whether
there is a valid signal (Lock, No Lock) for each input (Word Clock, ADAT, SPDIF), or if there is a
valid and synchronous signal (Sync). The AutoSync Reference display shows the input and
frequency of the current sync source.
SPDIF In
Defines the input for the SPDIF signal. 'Coaxial' relates to the RCA socket, 'ADAT1' to the opti-
cal TOSLINK input.
SPDIF Out
The SPDIF output signal is
constantly available at the
phono plug. After selecting
'ADAT1' it is also routed to
the optical TOSLINK output.
For further details about the
settings ‘Professional’, ‘Em-
phasis’ and ‘Non-Audio’,
please refer to chapter 24.2.
AEB
Selecting ADAT1 Int.
switches the ADAT input
from optical (TOSLINK) to
the internal connector,
which allows for a connec-
tion of a RME Expansion
Board (AEB4-I, AEB8-I,
TEB).
SPDIF Freq.
Displays the sample rate of the signal at the SPDIF input.
