EG AMOUNT (CC# 22):
Determines how much the Filter Envelope Generator (EG) adds to or
subtracts from the Filter Cutoff control setting. When the EG AMOUNT knob
is set to positive (+), turn the FILTER CUTOFF knob left to hear the effect.
When the EG AMOUNT knob is set to negative (-), turn the FILTER CUTOFF
knob right to hear the effect. Note that if the Cutoff frequency is set very high,
a positive EG Amount may have little or no noticeable effect, regardless of the
setting. Similarly, if the Cutoff frequency is set low, a negative EG Amount may
have little or no noticeable effect.
MIDI ACCESSIBLE CONTROL
FILTER KB TRACKING (CC# 20):
Determines how the Filter Cutoff changes in response to MIDI Note On
values. Filter tracking is adjustable from 0 to 200%.
Default = 32 (about 50%).
FILTER VELOCITY SENSITIVITY (CC# 89):
Sets the amount OF MIDI Note velocity to the Filter.
Default = 64.
EXTERNAL CONTROL
The FILTER CV jack on the back panel is an input for external control of the
Filter Cutoff parameter. A voltage applied to this jack is added to the setting
of the Filter Cutoff control. A one-volt change in the Control Voltage will
change the cutoff frequency of the filter by about one octave. The jack
accepts 0 to +5 volts, or an expression pedal like the Moog EP-3.
13

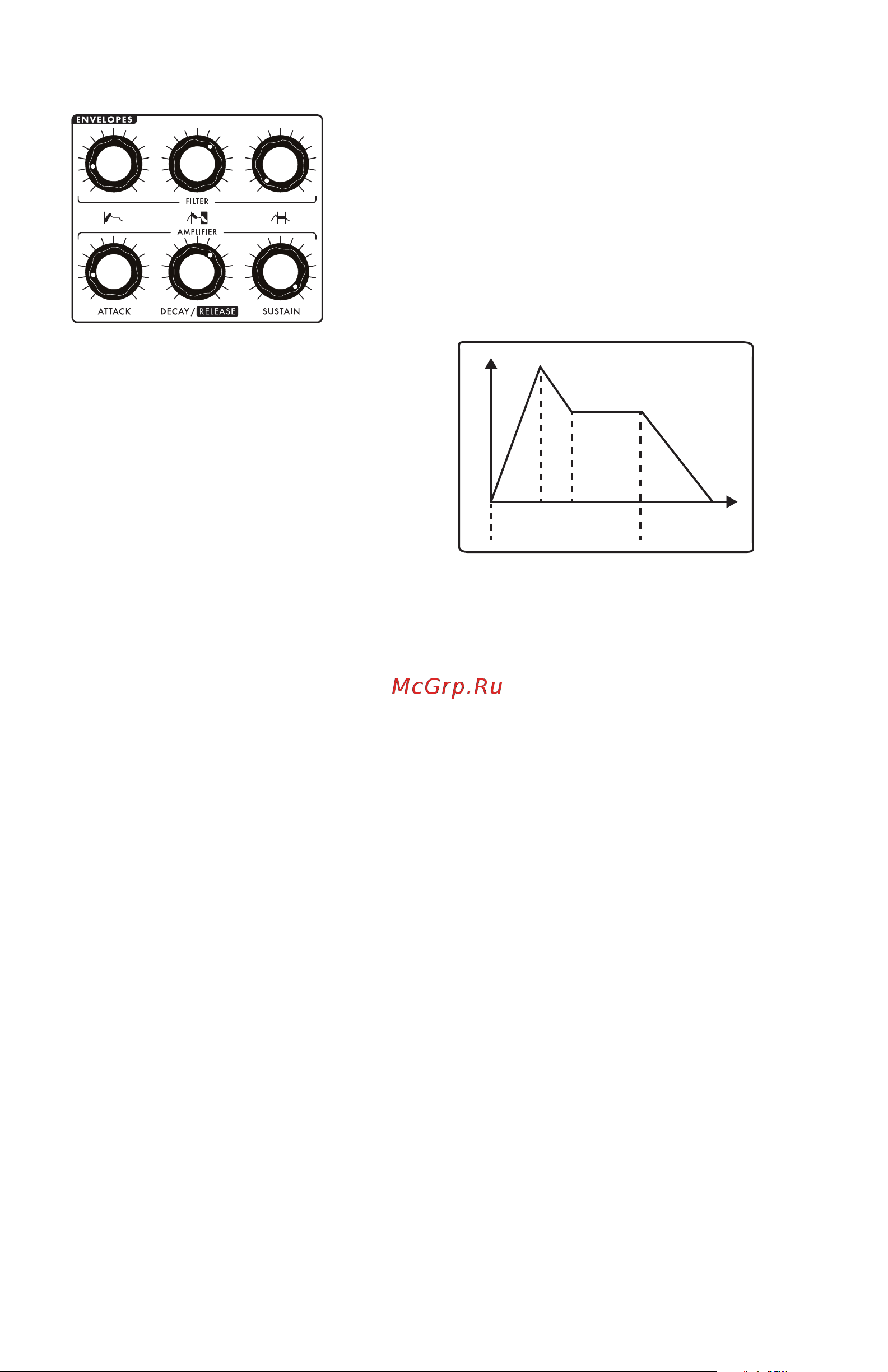

ENVELOPE GENERATORS (EGs) add motion to
a sound after a note is played. The Sirin has
two separate Minimoog style Envelope Genera-
tors that affect the brightness and loudness of
the Sirin's sound by modulating the Filter
Cutoff (VCF) and Volume (VCA).
The EGs are started by a Gate or MIDI
Note message. Once started, their
shape in time is set by the ATTACK,
DECAY/RELEASE, and SUSTAIN controls,
as well as the Release switch and length
of the Note played.
ENVELOPES
Note On
Note Off
Amplitude
Attack
Time
Decay
Sustain
Release
PANEL CONTROLS FOR THE ENVELOPES
FILTER ATTACK (CC# 23):
Sets the time it takes for the Attack portion of the Filter EG to rise from
zero to maximum. The Attack time ranges from 1 msec to 30 seconds.
FILTER DECAY/RELEASE (CC# 24):
Sets the time for the Decay and Release portion of the Filter EG. When a
note is held, and the Attack time end is reached, the Decay portion of the EG
starts. During the Decay portion, the EG moves to the Sustain level. When a
note is released, the EG moves back to zero at the rate set by this control.
This time ranges from 1 msec to 30 seconds. The Release segment of the
Envelope is determined by the state of the RELEASE switch (ON/OFF).
FILTER SUSTAIN (CC# 25):
Sets the Filter EG level after the Decay and before the Release portion.
A note must be held longer than both the Attack and Decay time to reach
the Sustain level. The level is adjustable from 0 to 100%.
AMPLIFIER ATTACK (CC# 28):
Sets the time it takes for the Attack portion of the Amplifier EG to rise from
zero to maximum. The Attack time ranges from 1 msec to 30 seconds.
AMPLIFIER DECAY/RELEASE (CC# 29):
Sets the time for the Decay and Release portion of the Amplifier EG. When
a note is held, and Attack time end is reached, the Decay portion of the EG
starts. During the decay portion, the EG moves to the Sustain level. When a
14
