3 INSTALLATION

3.1 Mounting

The LA4X is two rack units high (2U) and can be mounted in an EIA-standard 19” rack (see Figure 4). The four points

on the front panel are for rack mounting. Use the fixing material provided by the rack manufacturer to mount the

controller to the rack front rails.

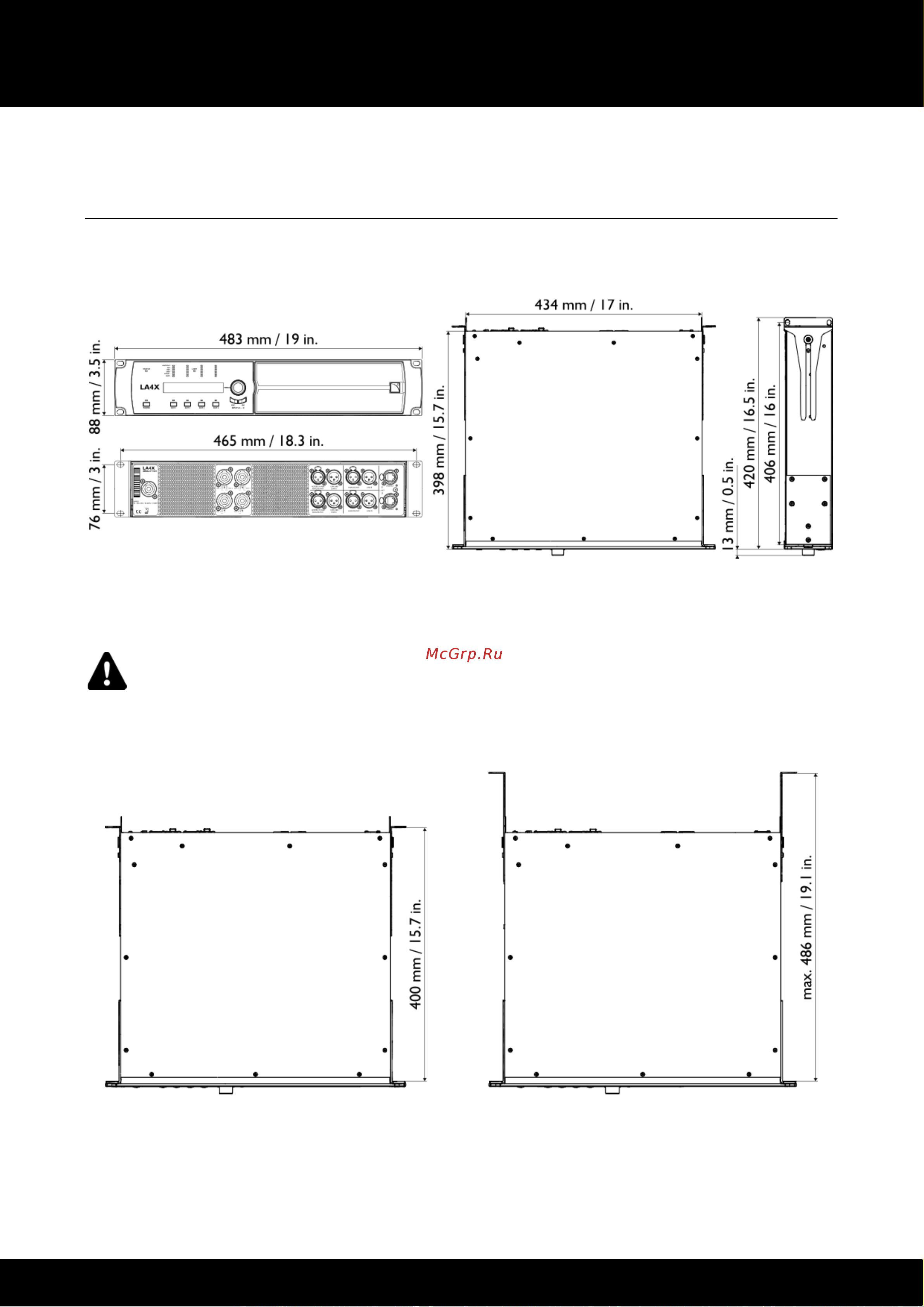

Figure 4: LA4X dimensions

There is a risk of damaging the controllers during transport

During transport or while on tour it is essential that the controllers are rear supported in addition to the front

panel mounting.

Use the rear rack support brackets provided with the controller as shown in Figure 5.

Any mechanical damage to the controllers used in portable applications without rear support will not be

covered by warranty.

Figure 5: LA4X with rear rack support brackets
