L-ACOUSTICS LA4X [32/47] La4x amplified controller

LA4X AMPLIFIED CONTROLLER

USER MANUAL

VERSION 2.0

LA4X_UM_EN_2.0 w w w . l - a c o u s t i c s . c o m 32

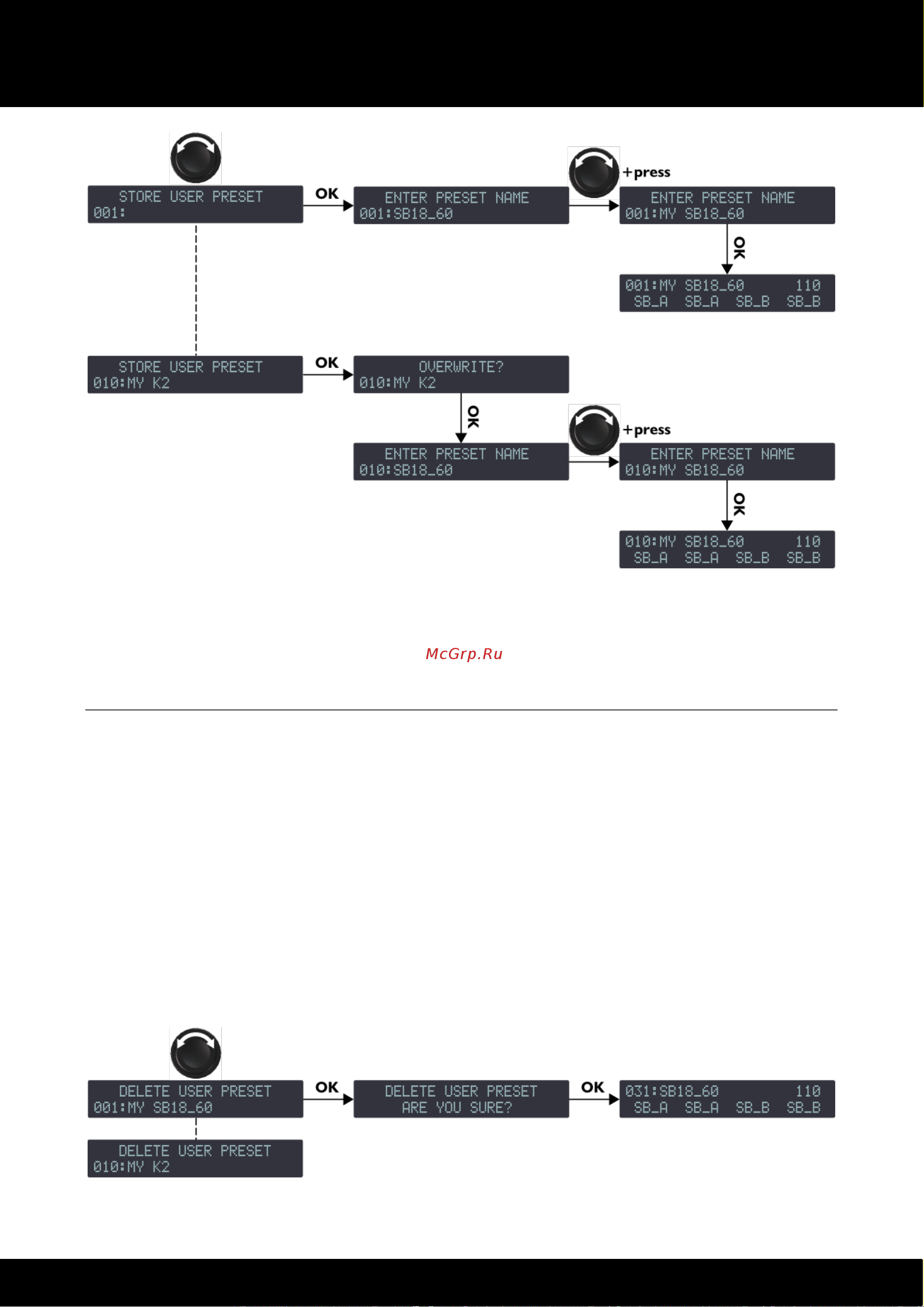

Figure 27: Storing a preset

4.6 DELETE PRESET

A user preset contained in a user memory (1-10) can be deleted following these steps (see also Figure 28):

From the main menu select DELETE PRESET. 1.

If the controller displays NO PRESETS AVAILABLE! it means that all user memories are empty.

Press the ESC key to abort. — END —

Else, continue the procedure.

Turn the encoder wheel to scroll through the user presets. 2.

Press the OK key or the encoder wheel to select a preset (or ESC to abort). 3.

The controller displays ARE YOU SURE?.

Press the OK key or the encoder wheel to validate (or ESC to abort). 4.

If the main screen is displayed it means that the selected preset has been deleted.

If the controller displays CANNOT DELETE THE CURRENT PRESET it means that the selected preset is the

current preset thus it is not possible to delete it.

Press the ESC key to abort.

Figure 28: Deleting a user preset
