5XT_UM_EN_1.0 w w w . l - a c o u s t i c s . c o m 11

4.3 Connection to LA4

To connect the 5XT to the LA4, three options are available.

Option A

Maximum of 16 enclosures per LA4

Four 5XT enclosures can be connected to each output channel on the LA4. Therefore, a single LA4 amplified

controller can drive up to 16 enclosures.

Impedance load

16 Ω for 1 enclosure, 8 Ω for 2 enclosures and 4 Ω for 4 enclosures.

With various enclosure types, for example two 5XT and two SB15m, this cabling scheme needs a dedicated

custom preset.

 Connect an SP cable (SP.7, SP5, SP10 or SP25) to the OUT1/OUT2 connector of the LA4.

 Use a CC4FP adapter to connect an SP-Y1cable and split the audio signals into two channels, each one feeding one

enclosure.

 Apply the same cabling scheme for the OUT3/OUT4 connector of the LA4.

 If necessary, use SP cables to connect additional similar enclosures in parallel with the first ones.

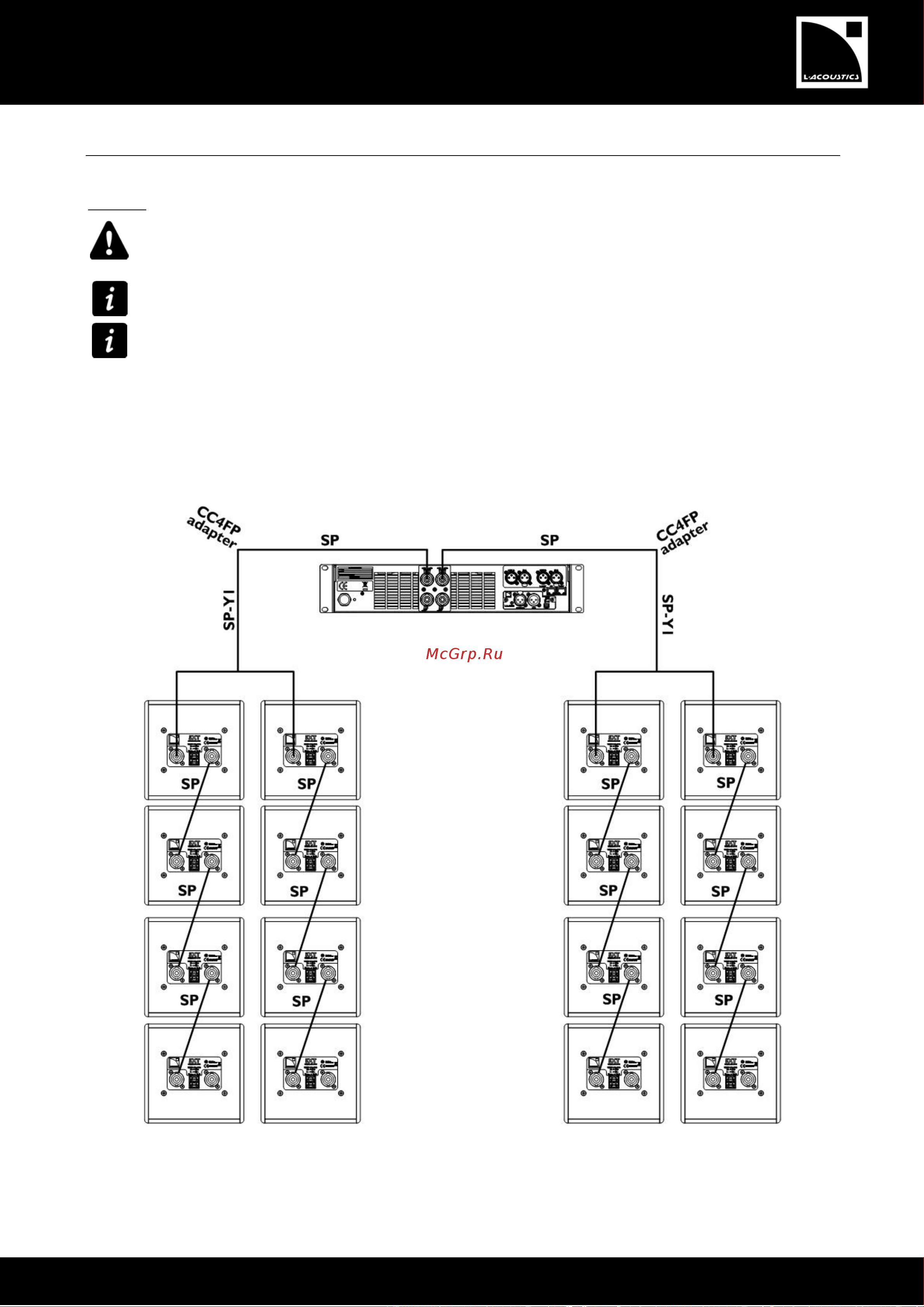

LA4 Option A maximum configuration
