Option C

ELECTRICAL HAZARD

Risk of electrical injuries.

Do not touch the screw terminals when they are connected to a powered amplified controler.

Turn off the amplified controller before any operation on the terminals.

Maximum of 24 enclosures per LA8

Six 5XT can be connected in parallel to each output channel on the LA8. Therefore, a single LA8 amplified

controller can drive up to 24 enclosures.

The color code of wires in SP cables is specific to L-ACOUSTICS

. Verify which point is associated with each

wire before using other manufacturer's cables.

This option uses bare speaker wires and is therefore reserved to fixed installation.

Impedance load

16 Ω for 1 enclosure, 8 Ω for 2 enclosures, 4 Ω for 4 enclosures and 2,7 Ω for 6 enclosures in parallel.

 Connect the SpeakON

end of a Custom SpeakON

to bare wire cable to one of the SpeakON

connector of

the LA8.

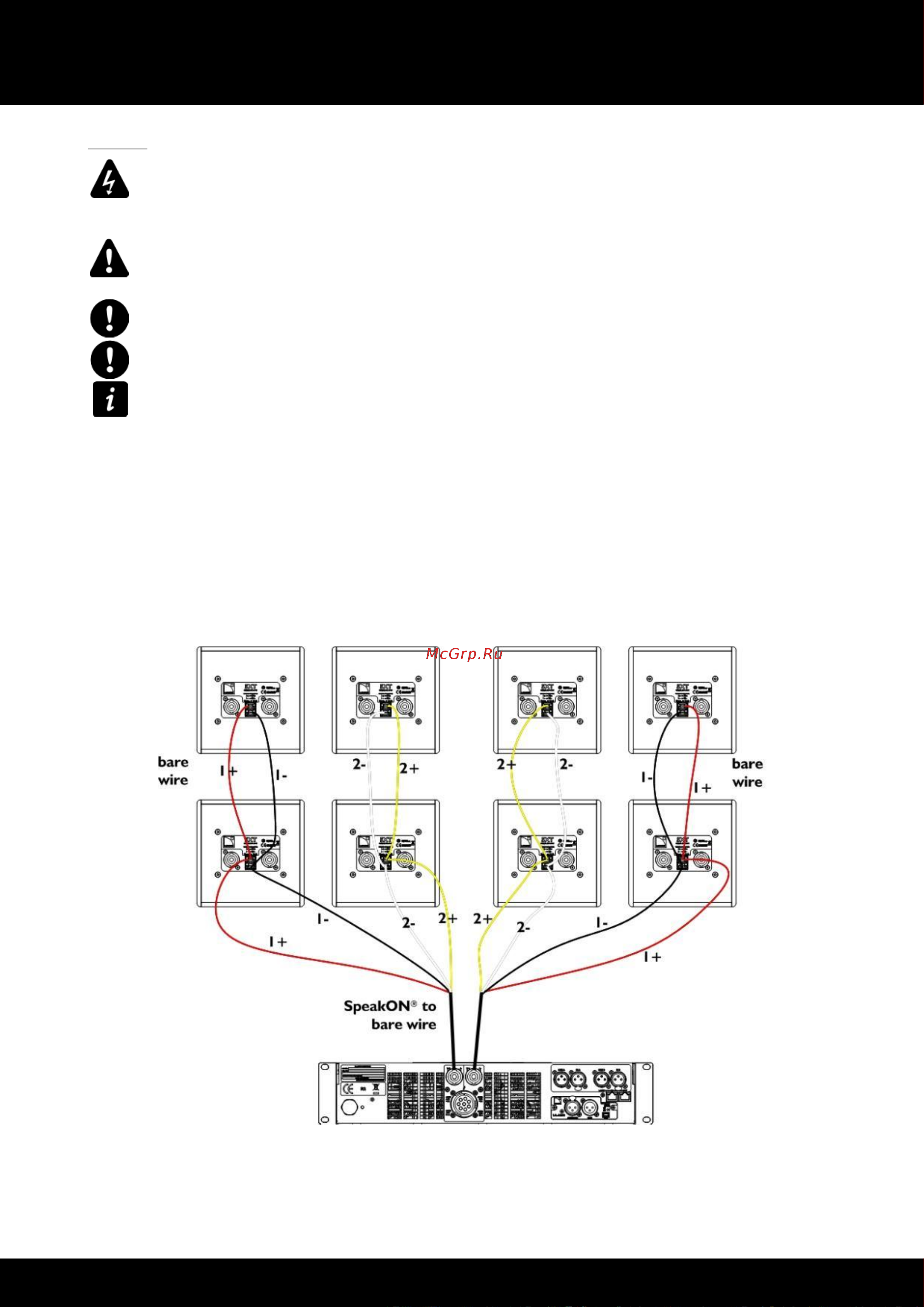

 Connect the pos. (+) cable to the IN+ screw terminal and the neg. (-) cable to the IN- screw terminal.

 Apply the same cabling scheme with the other LA8 SpeakON

connector.

 Use bare speaker cables 2.5mm² to connect additional 5XT enclosures in parallel with the first ones.

Connect the IN+ connector of the first enclosure to the IN+ connector of the second and the IN- to the IN-

connector.

LA8 option C
