Option B

Maximum of 24 enclosures per LA8

Six 5XT can be connected in parallel to each output channel on the LA8. Therefore, a single LA8 amplified

controller can drive up to 24 enclosures.

Impedance load

16 Ω for 1 enclosure, 8 Ω for 2 enclosures, 4 Ω for 4 enclosures and 2,7 Ω for 6 enclosures in parallel.

With various enclosure types, for example two 5XT and two SB15m, this cabling scheme needs a dedicated

custom preset.

 Connect an SP cable (SP.7, SP5, SP10 or SP25) to one of the SpeakON

connectors of the LA8.

 Use a CC4FP adapter to connect an SP-Y1cable and split the audio signals into two channels, each one feeding one

enclosure passive enclosure or subwoofer.

 Apply the same cabling scheme for the other LA8 SpeakON

connector.

 Use SP cables to connect additional similar enclosures in parallel with the first ones.

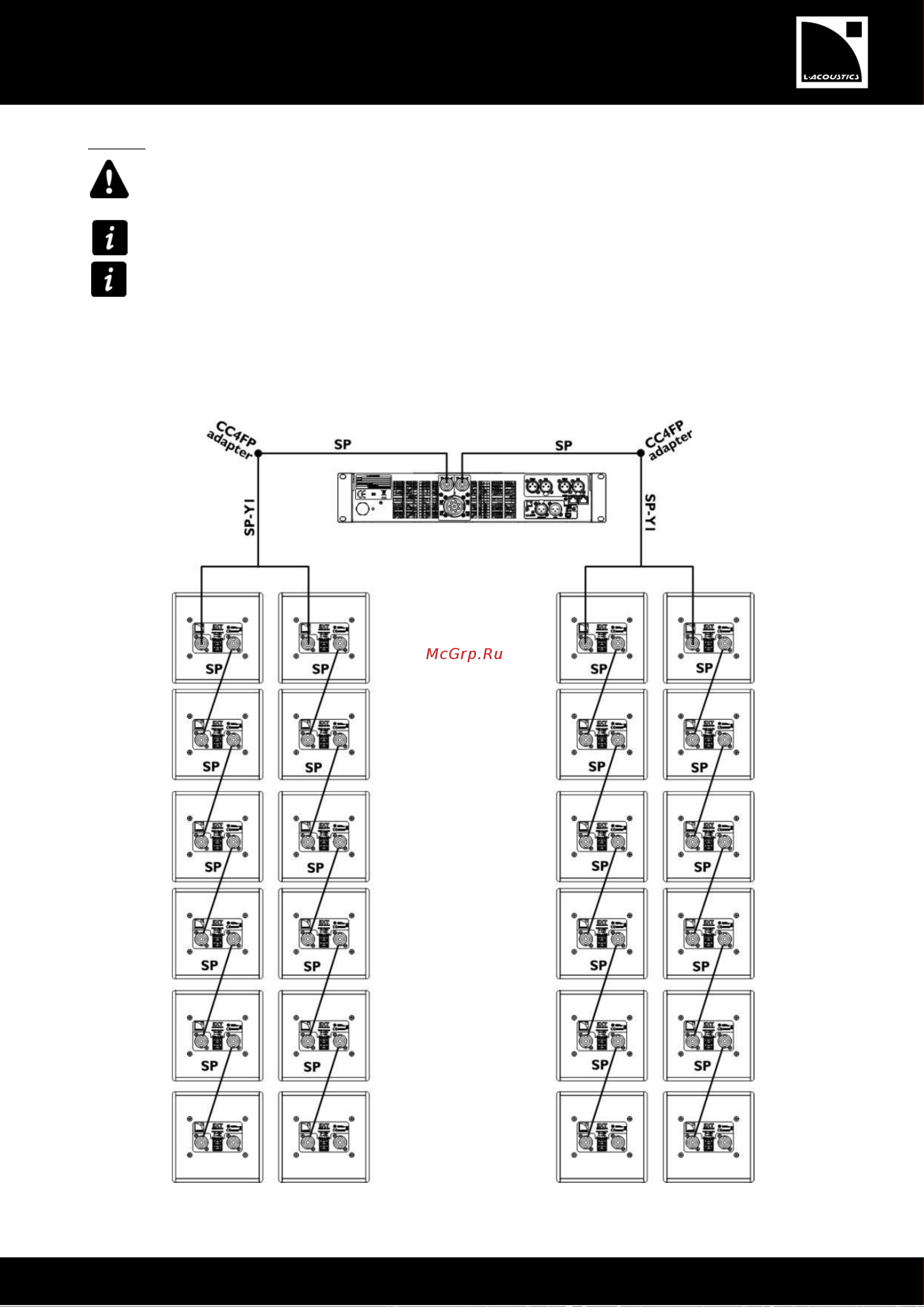

LA8 Option B maximum configuration
