3.2 Point source with low-frequency element

In this configuration, the frequency range of the 5XT system is extended in the low end.

Each enclosure type is driven by the LA4 or LA8 amplified controller with factory presets. The 5XT enclosure is driven

with the same preset as in point source configuration. The SB15m subwoofer is driven with a preset featuring an upper

frequency limit at 100 Hz, for an optimal acoustic coupling with the enclosure.

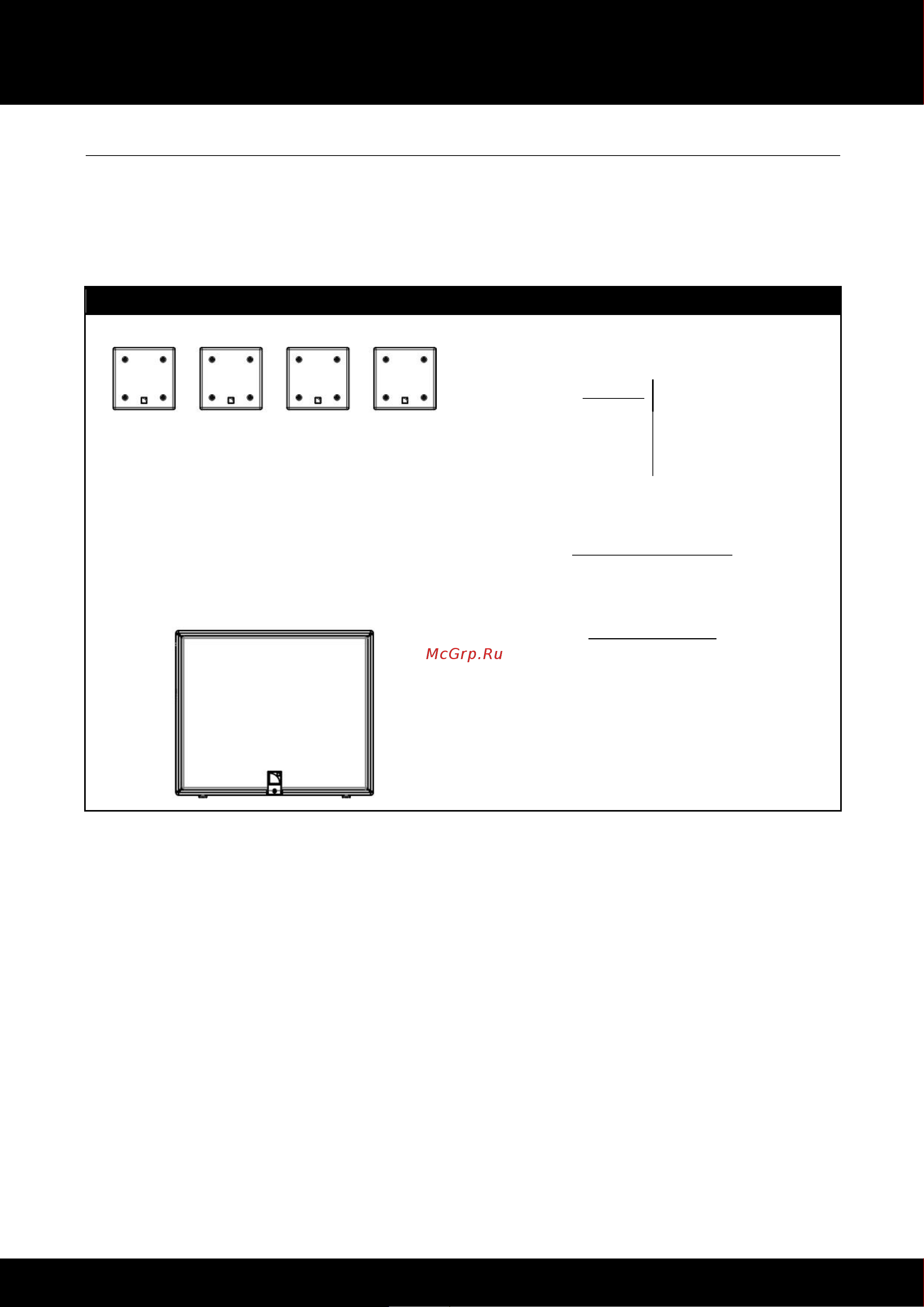

5XT + SB15m

Enclosure

[PRESET]

5XT

[5XT]

SB15m

[SB15_100]

Frequency range (-10 dB)

40 Hz – 20 kHz

Recommended ratio

1  SB15m: 4  5XT
