Option B

Maximum of 16 enclosures per LA4

Four 5XT enclosures can be connected to each output channel on the LA4. Therefore, a single LA4 amplified

controller can drive up to 16 enclosures.

Impedance load

16 Ω for 1 enclosure, 8 Ω for 2 enclosures and 4 Ω for 4 enclosures.

With various enclosure types, for example two 5XT and two SB15m, this cabling scheme needs a dedicated

custom preset.

 Use SP cables (SP.7, SP5, SP10 or SP25) to connect four similar enclosure to the four LA4 output channels.

 Use SP cables to connect additional similar enclosures in parallel with the first ones.

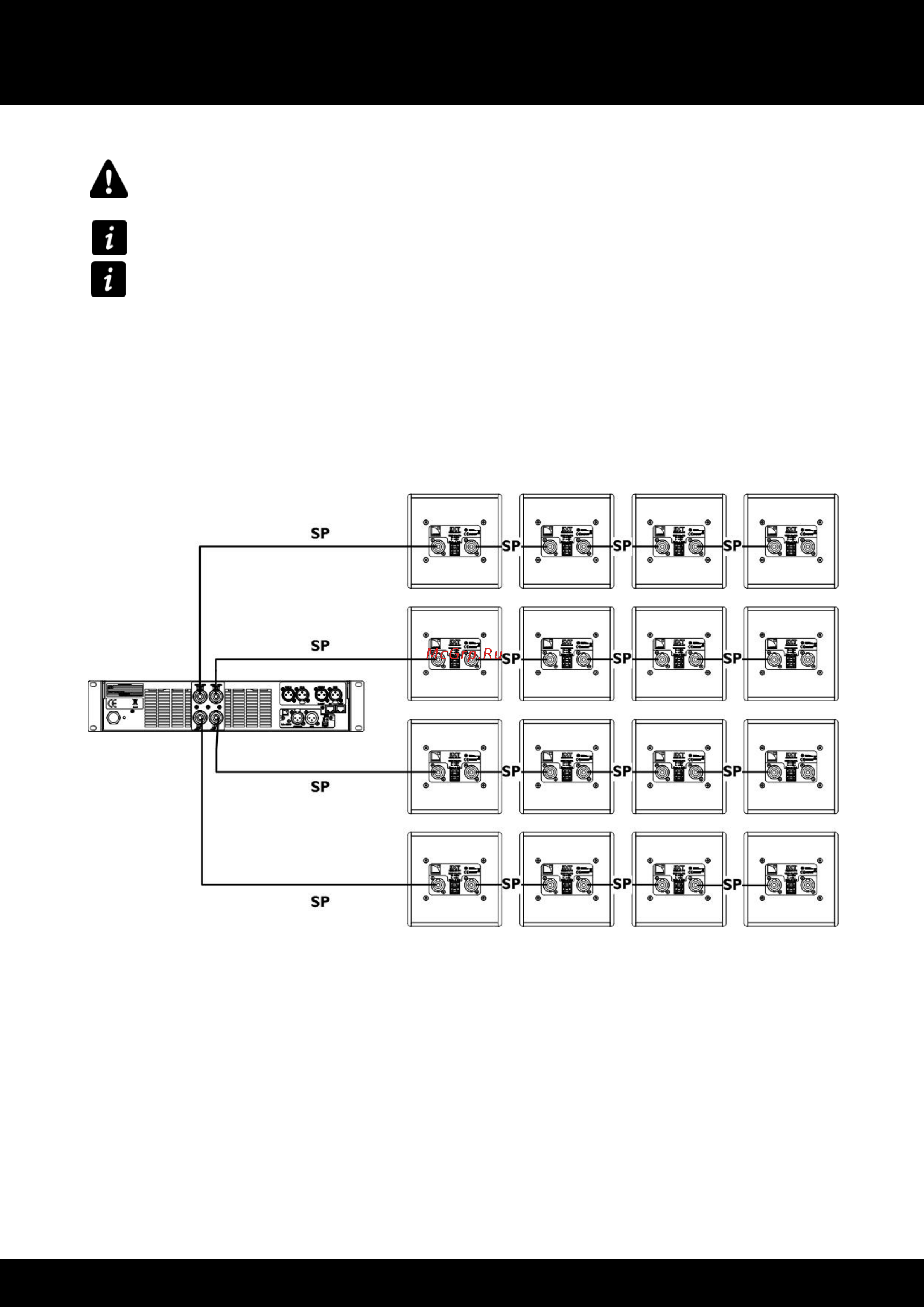

LA4 option B maximum configuration
