5XT_UM_EN_1.0 w w w . l - a c o u s t i c s . c o m 13

Option C

ELECTRICAL HAZARD

Risk of electrical injuries.

Do not touch the screw terminals when they are connected to a powered amplified controler.

Turn off the amplified controller before any operation on the terminals.

Maximum of 16 enclosures per LA4

Four 5XT enclosures can be connected to each output channel on the LA4. Therefore, a single LA4 amplified

controller can drive up to 16 enclosures.

This option uses bare speaker wire and is therefore reserved to fixed installation.

Impedance load

16 Ω for 1 enclosure, 8 Ω for 2 enclosures and 4 Ω for 4 enclosures.

 Connect the SpeakON

end of a Custom SpeakON

to bare wire cable to the OUT1-OUT3 connector of the

LA4.

 Connect the pos. (+) cable to the IN+ screw terminal and the neg. (-) cable to the IN- screw terminal.

 Apply the same cabling scheme with the OUT2-OUT4 connector of the LA4.

 Use speaker cable 2.5 mm² to connect additional similar enclosures in parallel with the first ones.

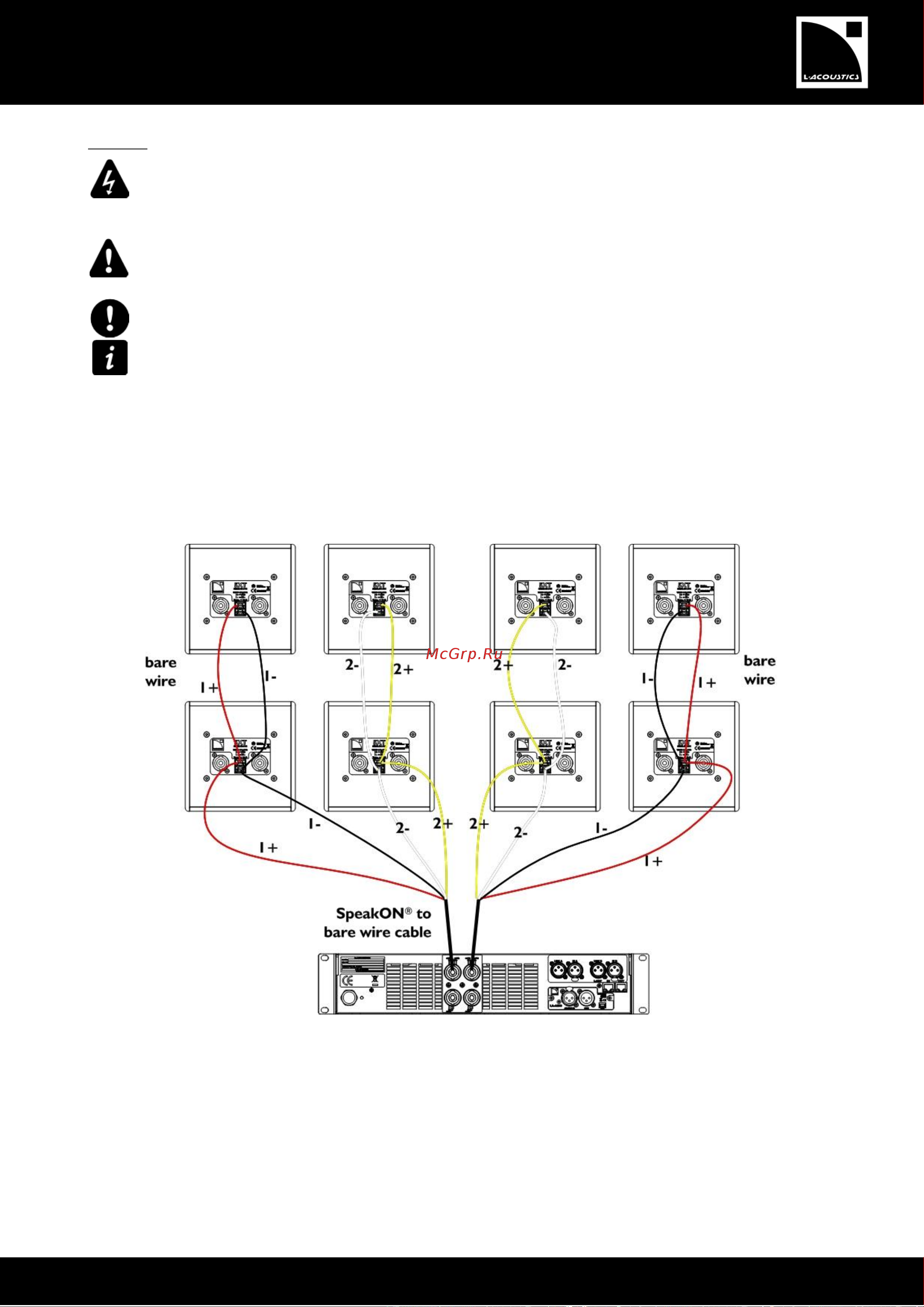

LA4 option C
