Sennheiser EW 100 G4-ME2-A1 [33/129] Changing the colored ring
![Sennheiser EW 100 G4-ME2-A1 [33/129] Changing the colored ring](/views2/2008246/page33/bg21.png)
Installing the SKM 100 G4
32
Changing the colored ring
To change the colored ring:

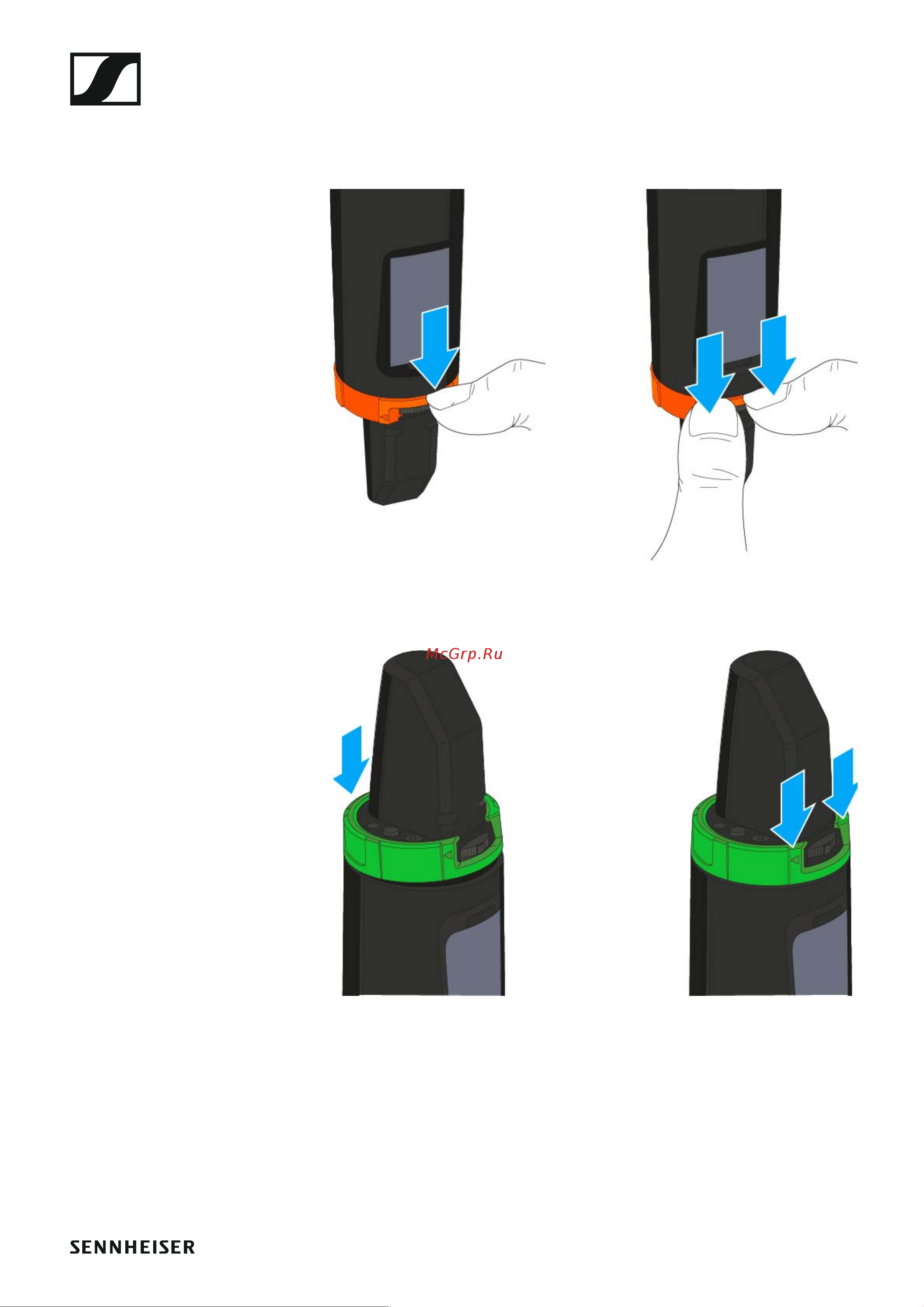

▷ Pull the colored ring off as shown in the diagram.
►
▷ Attached a colored ring in the color you want as shown in the diagram.
►
