Using the EM 100 G4
66

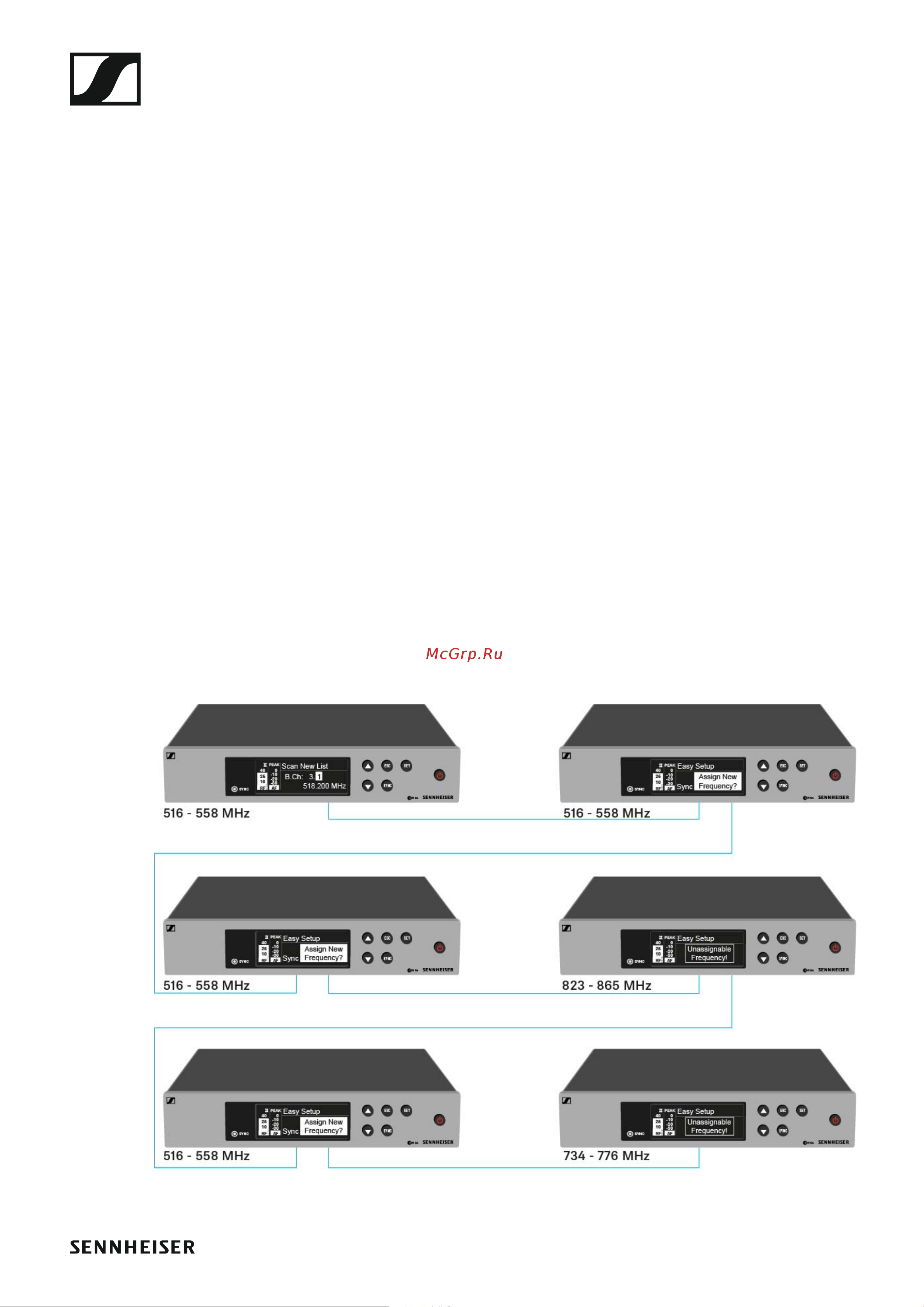

Performing multi-channel frequency setup
To perform the automatic frequency setup for multiple receivers (max. 12)
simultaneously:
▷ Connect all of the receivers to one network.
See “Creating a data network”.
▷ Open the Easy Setup menu item on one of the receivers.
This receiver is the master. You can choose any receiver to be the mas-
ter.
▷ Perform the frequency scan on the master receiver as described above.
After the scan, the display panels of the other receivers will display the
message Assign New Frequency?.
Receivers with non-compatible frequency ranges will display the mes-
sage Unassignable Frequency!.
▷ Select an unused frequency for the first receiver on the master receiv-
er.
▷ Press the SET button on the receiver that you would like to assign this
frequency to.
▷ Use this procedure to assign a frequency to each connected receiver,
one after another.
▷ For the last step, assign a frequency to the master receiver.
This completes the multi-channel frequency setup.
►
