Sennheiser EW 100 G4-ME2-A1 [68/129] Setting up a multi channel system with more than 12 receivers
![Sennheiser EW 100 G4-ME2-A1 [68/129] Setting up a multi channel system with more than 12 receivers](/views2/2008246/page68/bg44.png)
Using the EM 100 G4
67
Setting up a multi-channel system with more than 12 receivers
You can use the Easy Setup function to automatically set up a maximum
of 12 receivers.
If you assign the frequencies manually, however, you can use up to 20 re-
ceivers in a multi-channel system (not possible in the JB, K+ and 1G8 fre-
quency ranges).
▷ To do so, set a frequency manually in each receiver (see “Advanced ->
Tune menu item”).

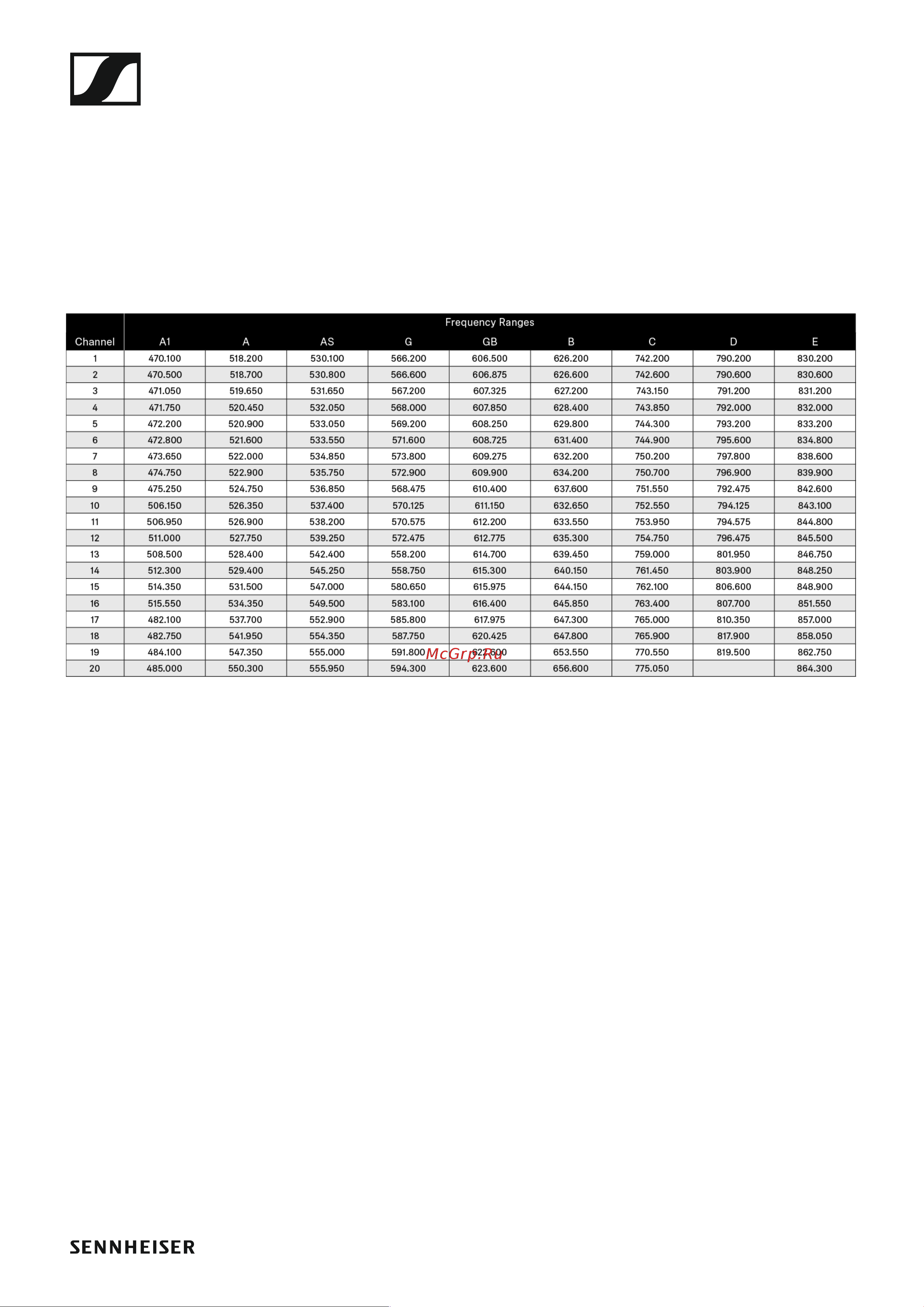

▷ Use the frequencies from the following table.
►
