Using ew 100 G4 series devices
49
OPERATION
Using ew 100 G4 series devices
You can find information about using ew 100 G4 series devices in the fol-
lowing sections.

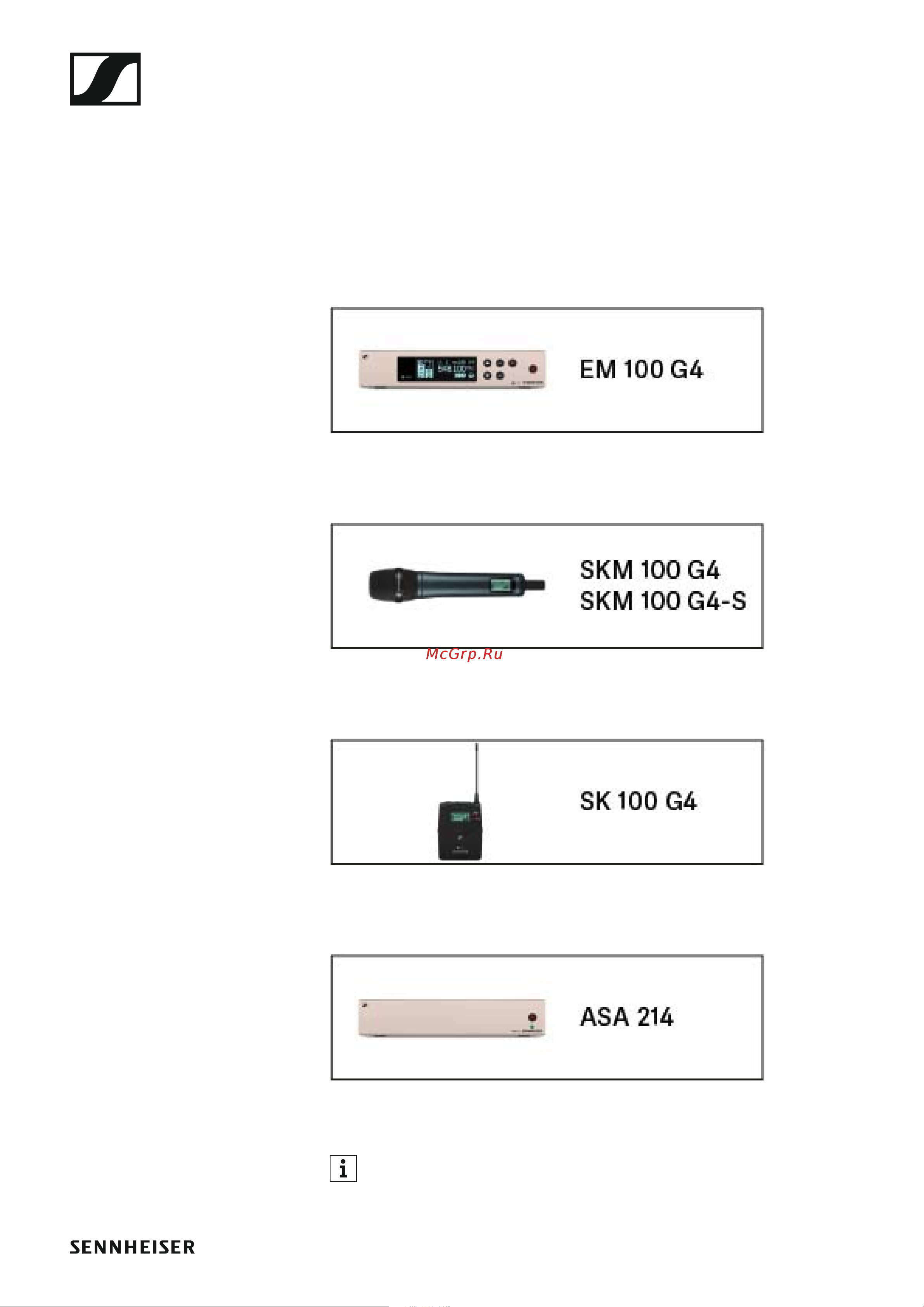

• EM 100 G4 rack receiver >> “Using the EM 100 G4”
• SKM 100 G4(-S) handheld transmitter >> “Using the SKM 100 G4”
• SK 100 G4 bodypack transmitter >> “Using the SK 100 G4”
• ASA 214 antenna splitter>> “Using the ASA 214”
You can find information about installation and start up of the prod-
ucts under “Installing and starting up ew 100 G4 series devices”.
